HONEYWELL TH5220D1029 Low Voltage Thermostat, Electric Forced Air Furnaces/Heat Pump with Aux/Millivolt
Item: CR4DVGModel: TH5220D1029Cross Ref: 6WU99
7 In Stock
Ships within 2 days via
10.00% off
€255.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| 750mv Compatible | Yes |
| Application | Heat And Cool |
| Backlit Type | Press Button |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AA Batteries |
| Changeover Type | Automatic And Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Heat Pump With Aux, Millivolt |
| Contact Rating | 24V AC |
| Control Type | Push Button |
| Dehumidification Control | No |
| Depth | 1 1/2" |
| Digit Size | Easy Read |
| Display Type | Digital |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Frequency | 50/60 Hz |
| Housing Color | White |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Low-battery Indicator | Yes |
| Maximum Control Temperature | 99°F |
| Maximum Operating Humidity | 90% |
| Maximum Operating Temperature | 120°F |
| Minimum Control Temperature | 40°F |
| Minimum Operating Humidity | 5% |
| Minimum Operating Temperature | 32°F |
| Mounting | Horizontal |
| Mounting Direction | Horizontal |
| Mounting Type | Horizontal |
| Number Of Cooling Stages (conventional System) | 2 |
| Number Of Cooling Stages (heat Pump System) | 1 |
| Number Of Heating Stages (conventional System) | 2 |
| Number Of Heating Stages (heat Pump System) | 2 |
| Number Of Zones | 1 |
| Output Signal | Not Applicable |
| Overall Depth | 1 1/2" |
| Overall Height | 3 9/16" |
| Overall Width | 5 13/16" |
| Programming Capability | Non-Programmable |
| Shape | Rectangle |
| Stages | 2 H/2 C Conventional |
| Stages Cool | 2 |
| Stages Heat Pump | 2 H/1 C Heat Pump |
| Stages Heating/cooling | 2 H/2 C Conventional, 2 H/1 C Heat Pump |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Temp. Sensitivity | -1°F to +1°F |
| Temperature Differential | 1°F |
| Temperature Limiting | Yes |
| Temperature Scale | Celsius, Fahrenheit |
| Temporary Temperature Hold | Yes |
| Terminal Designations | C, G, R, RC, W-O/B, W2-AUX/E, Y, Y2-L |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 9.05 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 14.76 |
| Country of Origin | MX |
Product Variants
| Product | Model | Programming Capability | Overall Width | Voltage | Control Type | Dual Transformer Compatible | Temperature Scale | Number Of Heating Stages (heat Pump System) | Number Of Cooling Stages (heat Pump System) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

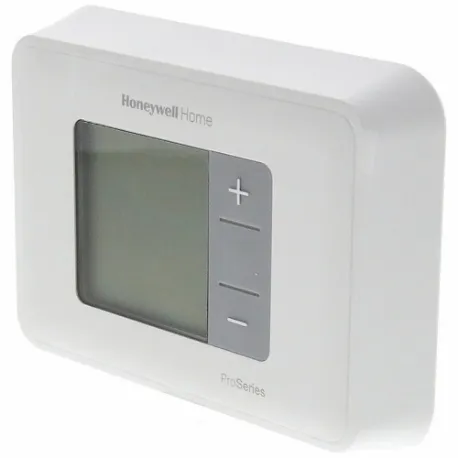

TH3110U2008/U | Non Programmable | 5 1/2" | 20-30V AC | Soft Key | Yes | Celsius, Fahrenheit | 1 | 1 | €77.81 | |
 |

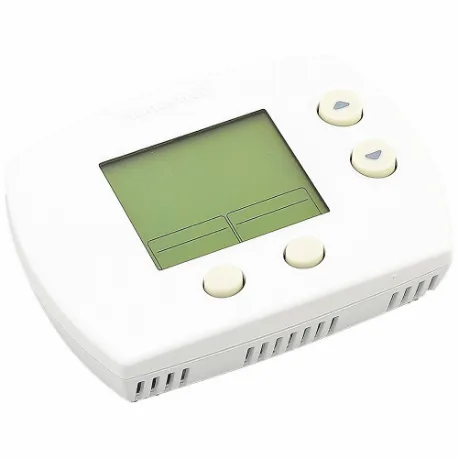

TH5110D1022 | Non-Programmable | 4 1/2" | 20-30V AC | Push Button | Yes | Celsius, Fahrenheit | 1 | - | €167.40 | |
 |

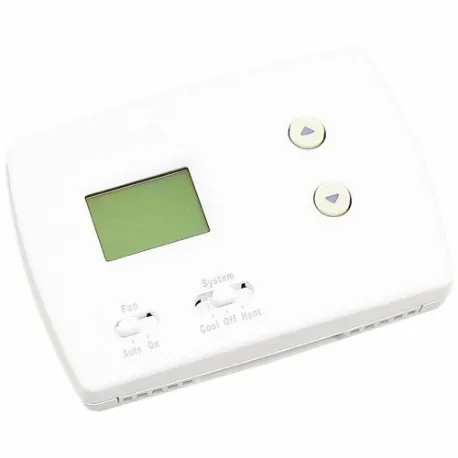

TH3110D1008 | Non-Programmable | 5 3/8" | 24V AC | Push Button, Slide Switch | Yes | Celsius, Fahrenheit | 1 | - | €101.35 | |
 |
YTH5320R1000 | Non-Programmable | 4 3/8" | 20-30V AC | Push Button | No | Fahrenheit | 3 | 2 | €765.32 | |
|
TH5320R1002 | Non-Programmable | 5 13/16" | 20-30V AC | Push Button | Yes | Fahrenheit | 3 | - | €486.77 |
