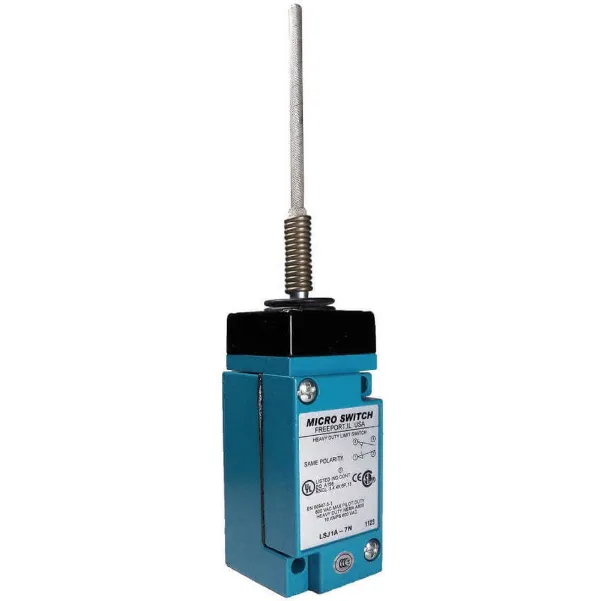

HONEYWELL LSJ1A-7N Heavy Duty Limit Switch Top Actuator
Item: AA4NBZModel: LSJ1A-7NCross Ref: 12V108
7 In Stock
Ships within 2 days via
5.00% off
€503.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length (limit Switch) | 5 1/2" |
| Actuator Style | Wobble Stick |
| Actuator Style (limit Switch) | Wobble Stick |
| Actuator Type | Wobble Stick |
| Arm Material | Tin Plated Cable |
| Basic Actuator Style | Wobble Stick |
| Basic Actuator Style (limit Switch) | Wobble Stick |
| Body Configuration | Plug In |
| Body Depth | 1.75" |
| Body Height | 2.95" |
| Body Height-limit Switch | 2.95" |
| Body Material | Zinc |
| Body Style | Miniature |
| Body Style (limit Switch) | Miniature |
| Body Width | 1.62" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator (limit Switch) | No |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 250V |
| Directional Movement | Omnidirectional |
| Electrical Connection | Screw Terminal |
| Ip Rating | IP65, IP66, IP67 |
| Limit Switch Style | Heavy Duty Limit Switch |
| Max. Operating Temp. | 250°F |
| Max. Operating Torque | 17.26 lbs.-in. |
| Min. Operating Temp. | 10°F |
| Mounting (limit Switch) | Surface |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 60 mm |
| Mounting Hole Spacing-limit Switch | 2.34" x 1.16" |
| Mounting Hole Vertical Center To Center Distance | 30 mm |
| Mounting Style | Surface |
| Movement | Wobble |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| No. Of Mounting Holes | 2 |
| Operating Force | 7 oz. |
| Operating Temp. | +10°F to +200°F |
| Overall Depth | 2.44" |
| Overall Height | 4 1/5" |
| Overall Width | 1.62" |
| Pre-travel | 1.5" |
| Resistance Properties | Corrosion Resistant |
| Series | HDLS Series |
| Stem Thread (limit Switch) | No Stem |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.83 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Width | Height | Boot Sealed Actuator | Actuator Style | Operating Temp. | Mounting Hole Horizontal Center To Center Distance | Body Depth | Body Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LSV7L | 1 22/25" | 4.69" | No | Plunger | +10°F to +200°F | 29 mm | 1.79" | 2.95" | €517.54 | |
 |
LSW1A | 1.62" | 4 1/5" | No | Plunger | +10°F to +200°F | 29 mm | 1.75" | 3.2" | €520.40 | |
 |
LSYPB1A | 1.62" | 4 1/5" | No | No Lever, Rotary Head | -40°F to +250°F | - | - | - | €394.52 | |
|
LSYUB1A | 1.62" | 4 1/5" | No | No Lever, Rotary Head | -40°F to +250°F | 29 mm | 1.75" | 3.2" | €460.78 | |
|
LSA1A | 1.62" | - | No Boot Included | No Lever, Rotary Head | +10°F to +250°F | 60 mm | 1.75" | 2.95" | €435.41 | |
 |
LSA2B | 1.88" | - | No | No Lever, Rotary Head | +10°F to +250°F | 60 mm | 1.79" | 3.53" | €412.87 | |
|
LSA3K | 1.62" | - | No Boot Included | No Lever, Rotary Head | +10°F to +250°F | 60 mm | 1.75" | 2.95" | €345.10 |
