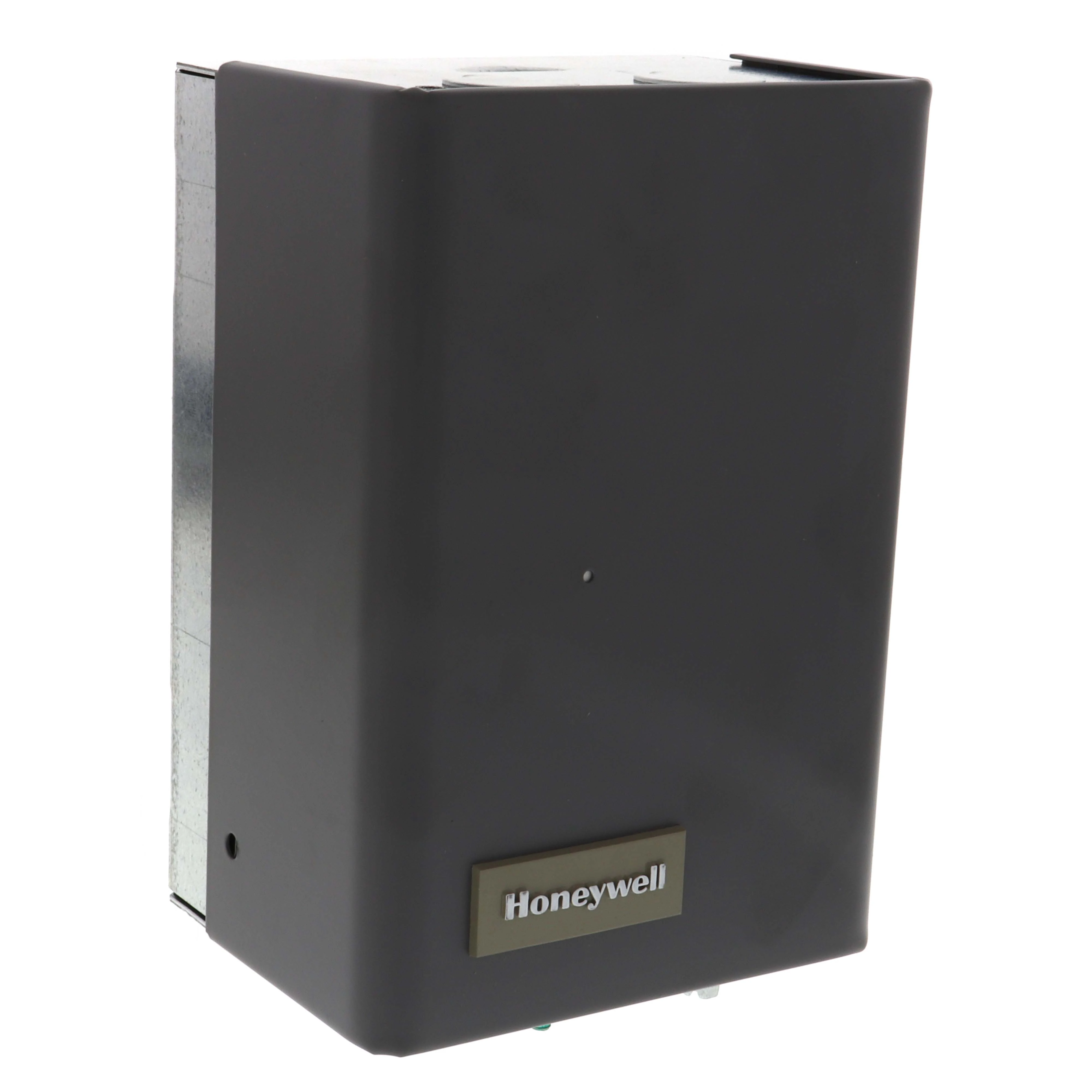

HONEYWELL L8124E1016 Triple Aquastat Burner Control 130f-240f
Item: AB9ZNPModel: L8124E1016Cross Ref: 2GZJ7
7 In Stock
Ships within 2 days via
10.00% off
€708.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Immersion Controller, Multizone |
| Application | High Limit |
| Auto/manual Switch Included | Yes |
| Burner Circuit Voltage Type | Low Voltage |
| Burner Control Circuit | 24V |
| Burner Control Circuit @ 24v | 1.25A |
| Capillary Length | 1 1/2" |
| Capillary Tube Length | 1 1/2" |
| Contact Form | SPST |
| Control Temperature Range | 130°F to 240°F |
| Depth | 3 1/8" |
| Differential Temperature | 10°F Fixed (High Limit), 10°F to 25°F Adjustable (Low Limit) |
| Full Load Amps @ 120v | 7.4 |
| Full Load Amps @ 120v | 7.4A |
| Full Load Amps @ 240v Ac | 3.7A |
| Full Load Amps @ 240vac | 3.7 |
| Full Load Current @ 120v Ac | 7.4A |
| Full Load Current @ 240v Ac | 3.7A |
| Height | 6 1/8" |
| Humidity Range | Non-Condensing 0 To 95 % RH |
| Includes | Diaphragm Powerhead, Extra Terminals, Micro Switch Assembly, Range Stops, Transformer, Heat-Conductive Compound |
| Input Voltage | 120V AC |
| Locked Rotor Amps @ 120v | 44.4 |
| Locked Rotor Amps @ 120v | 44.4A |
| Locked Rotor Amps @ 240v | 22.2A , 22.7A |
| Locked Rotor Amps @ 240v | 22.7 |
| Mounting | Vertical |
| Mounting Orientation | Vertical |
| Mounting Position | Vertical |
| Multizone Control Compatible | Yes |
| Number Of Switches | 3 |
| Number Of Zone Control Relays Supported | 1 |
| Number Of Zone Control Valves Supported | 1 |
| Overall Depth | 3 1/8" |
| Overall Height | 6 1/8" |
| Overall Width | 4 3/8" |
| Product Type | Immersion Controller |
| Requires | Tube Of Heat Conductive Compound And Range Stops |
| Reset Type | Automatic Reset |
| Spud Size | Not Applicable |
| System Switching | SPST |
| Type | Triple Aquastat Relay With High Limit |
| Width | 4 1/3" |
Shipping Info:
| Ship weight (kg) | 2.02 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 12.95 |
| HS code | 8537109070 |
| Country of Origin | US |
Product Details:
- Burner Control Circuit (24V)
- Burner Control Circuit @ 24V (A) (1.25)
Product Variants
| Product | Model | Locked Rotor Amps @ 240v | Mounting Position | Differential Temperature | Application | Height | Depth | Spud Size | Locked Rotor Amps @ 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

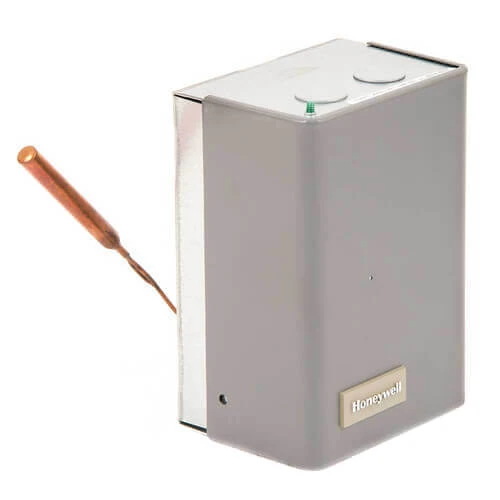

L8124G1020 | 22.7A | Vertical | 10°F Fixed (High Limit), 10°F to 25°F Adjustable (Low Limit) | High Limit | 6 1/8" | 3 1/8" | - | 44.4A | €796.15 | |
 |

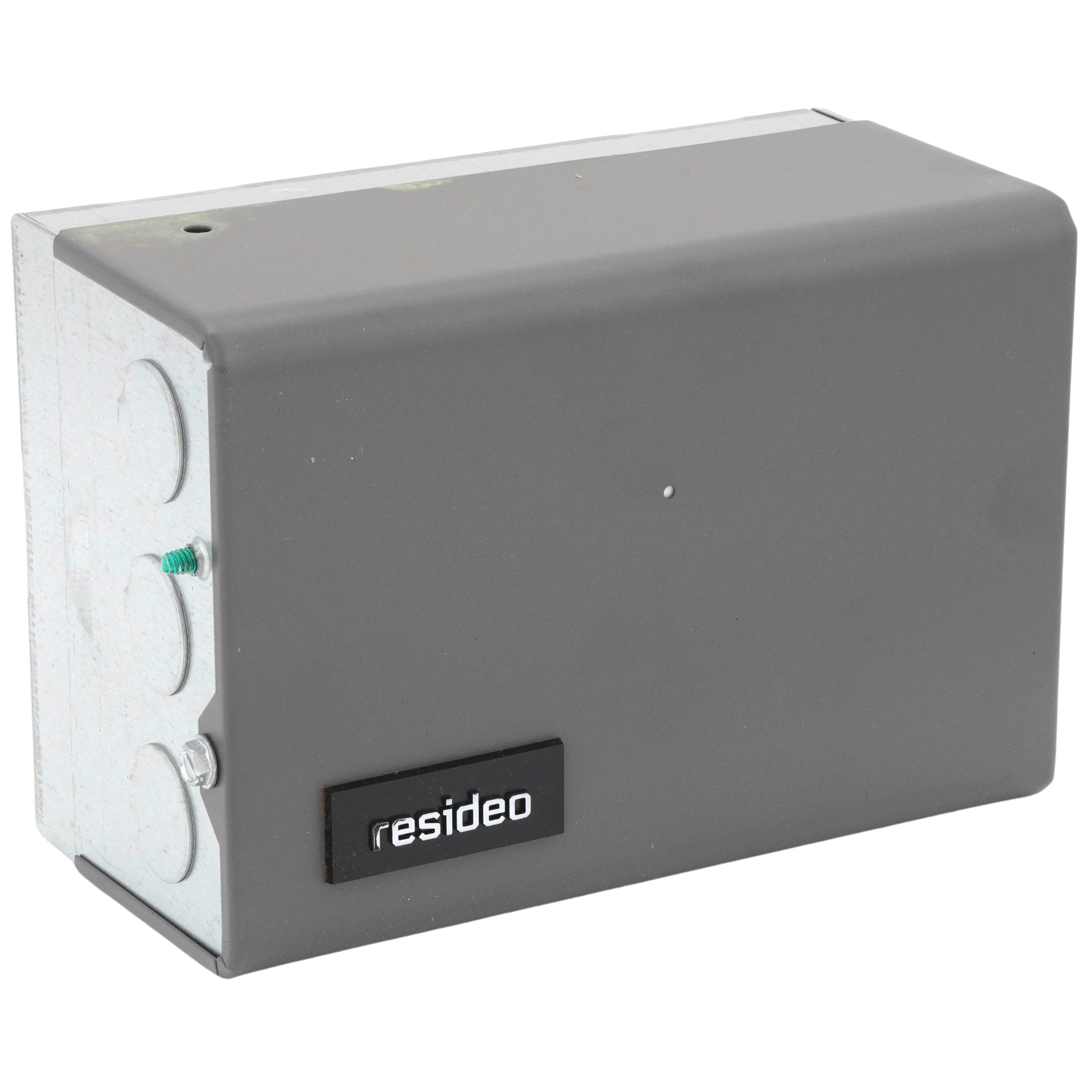

L8124L1011 | 22.7A | Horizontal | 10°F Fixed (High Limit), 10°F to 25°F Adjustable (Low Limit) | High Limit | 6 1/8" | 3 1/8" | - | 44.4A | €758.92 |
