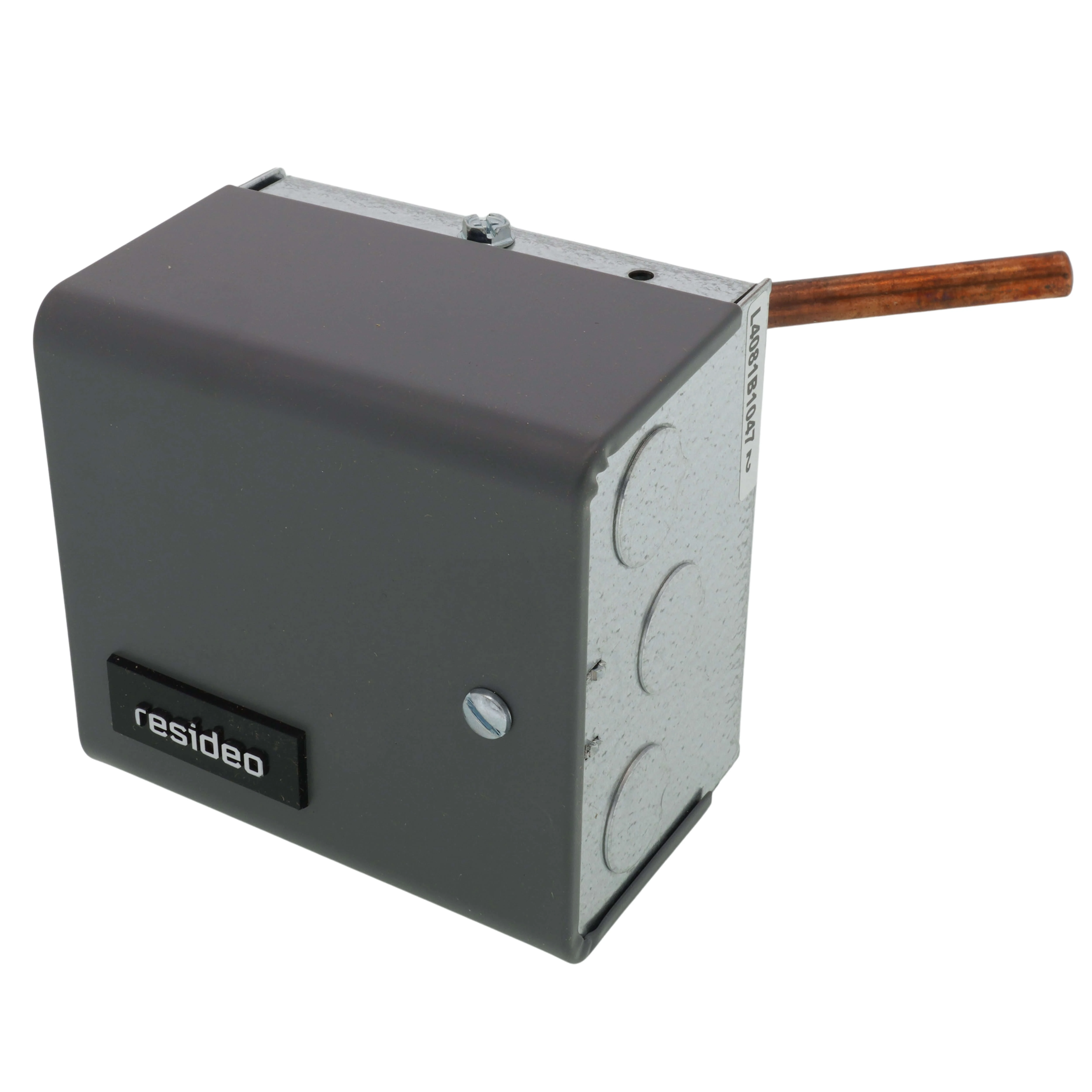

HONEYWELL L4081B1047 Dual Aquastat Controller Differential 10
Item: AB9ZNVModel: L4081B1047Cross Ref: 2GZK6
7 In Stock
Ships within 2 days via
5.00% off
€576.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dual Aquastat Controller |
| Application | Circulator, High Limit |
| Auto/manual Switch Included | Yes |
| Burner Circuit Voltage Type | Millivolt |
| Burner Control Circuit @ 120v | 8A |
| Burner Control Circuit @ 24v | 5.1A |
| Contact Form | SPST |
| Control Temp. | 130°F to 240°F |
| Depth | 2 2/3" |
| Differential Temp. | 10°F Fixed (High Limit), 10°F to 25°F Adjustable (Low Limit) |
| Full Load Amps @ 120v | 8 |
| Full Load Amps @ 120v | 8A |
| Full Load Amps @ 240vac | 5.1 |
| Height | 4" |
| Humidity Range | Non-Condensing 0 To 95 % RH |
| Input Voltage | 24V DC |
| Insulation Depth | 1 1/2" |
| Locked Rotor Amps @ 120v | 48 |
| Locked Rotor Amps @ 120v | 48A |
| Locked Rotor Amps @ 240v | 30.6 |
| Locked Rotor Amps @ 240v | 30.6A |
| Mounting | Horizontal |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Multizone Control Compatible | Not Applicable |
| No. Of Switches | 2 |
| Overall Depth | 2 3/4" |
| Overall Height | 3 7/8" |
| Overall Width | 4 1/8" |
| Product Type | Circulator Controller |
| Reset Type | Automatic Reset |
| Spud Size | 3/4" |
| Spud Type | NPT |
| System Switching | SPST |
| Type | High Limit And Circulator |
| Width | 3 7/8" |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 13.21 |
| HS code | 8537109070 |
| Country of Origin | MX |
Product Details:
- Burner Control Circuit (24V or 120V)
- Burner Control Circuit @ 120V (A) (8.0)
- Burner Control Circuit @ 24V (A) (5.1)
- Insulation Depth (15 In.)
- Millvolt (025 A @ 025 To 12 Vdc)
- Spud Size (In.) (3/4 to 14 Npt)
