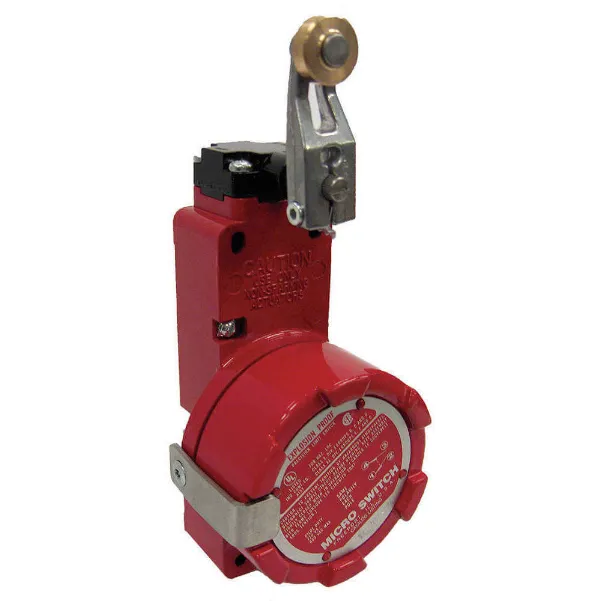

HONEYWELL GSXA42A1E Explosion Proof Limit Switch 2nc/1no
Item: AA3WLHModel: GSXA42A1ECross Ref: 11X244
7 In Stock
Ships within 2 days via
10.00% off
€1,099.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Explosion Proof Limit Switch |
| Ac Contact Rating | 10A |
| Actuator Length | 2 1/5" |
| Actuator Location | Side |
| Actuator Material | Metal |
| Actuator Style | Rotary Lever Arm |
| Amps | 10A |
| Arm Material | Metal |
| Body Material | Zinc |
| Certification | ATEX, IEC EX, DIV. 1, Class I, Groups B, C, & D; DIV. 1, Class II, Groups, E, F, & G; II 2 G, EX D IIC T6; II 2 D, EX D TD A21 T85C |
| Circuitry Action | Slow Action |
| Contact Form | 1NO/2NC |
| Contact Material | Silver |
| Dc Contact Rating | 10A @ 250V |
| Depth | 2.84" |
| Display Qty | 1 |
| Electrical Connection | Screw Terminals |
| Features | Red Switch Body |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Height | 6.07" |
| Includes Actuating Key | No Actuating Key Included |
| Ip Rating | IP67 |
| Movement | Rotation |
| Nema Enclosure Rating | NEMA 1, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13 |
| Operating Force | 2.6 lbs.-in. |
| Operating Temp. Range | -40°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Over Travel | 59° |
| Over Travel Length | 59° |
| Overall Depth | 2.84" |
| Overall Height | 6.07" |
| Pre-travel | 26° |
| Pre-travel Length | 26° |
| Roller Dia. | 3/4" |
| Roller Material | Nylon |
| Roller Width | 1/4" |
| Series | GSX Series |
| Terminal Connection Type | Screw Terminals |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 9.14 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator Style | Roller Dia. | Movement | Operating Force | Roller Width | Roller Material | Contact Form | Ac Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

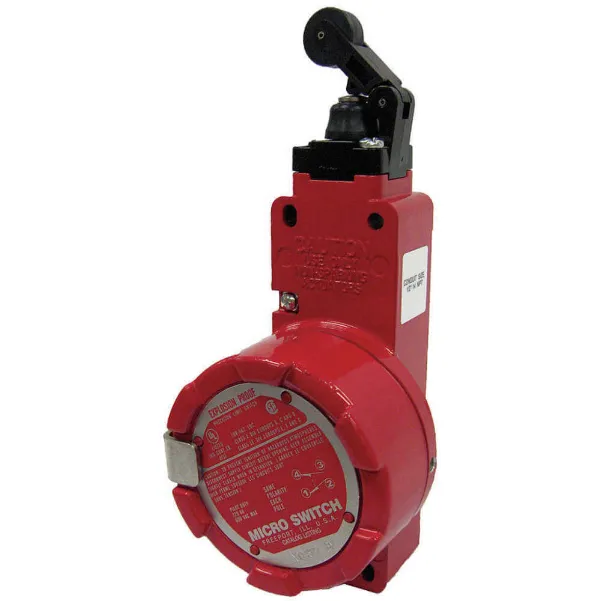

GSXA42D | Horizontal Roller Lever | 0.74" | CW/CCW | 2.1 lbs.-in. | 0.31" | Bronze | 1NO/2NC | 10A | €2,906.67 |
