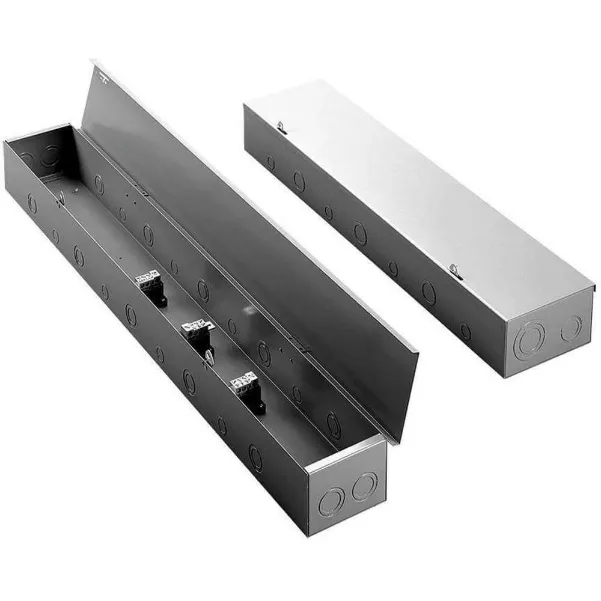

HOFFMAN AST4224R Splitter Trough 48 Inch Height 8.25 Inch Width 4.5 Inch Depth
Get it by Tuesday, Dec 23
10.00% off
€515.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Splitter Trough |
| Branch Lug Current - Maximum | 225A |
| Branch Lug Wire Size - Maximum | 2/0 AWG |
| Branch Lug Wire Size - Minimum | 14 AWG |
| Color | Gray |
| Compatible No. Of Wires | 4 |
| Depth | 4 1/2" |
| Enclosure Material | Steel |
| Height | 48" |
| Includes | Single Point Ground Lug |
| Ip Rating | IP30 |
| Latch Type | Slot With Lockout Tab |
| Main Lug Current - Maximum | 225A |
| Main Lug Wire Size - Maximum | 300 kcmil |
| Main Lug Wire Size - Minimum | 6 AWG |
| Max. Amps | 225A |
| Min. Wire Size | 14 ga. |
| Mounting | Wall |
| Nema Enclosure Rating | 1 |
| Number Of Branch Lugs | 6 |
| Number Of Main Lugs | 1 |
| Number Of Wires | 4 |
| Overall Depth | 4.5" |
| Overall Height | 8 1/4" |
| Overall Width | 48" |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 14.09 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 99.06 |
| Ship width (cm) | 23.5 |
| Country of Origin | US |
Product Details:
- Knockouts : Yes
Product Variants
| Product | Model | Depth | Max. Amps | Min. Wire Size | Height | Color | Enclosure Material | Ip Rating | Latch Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

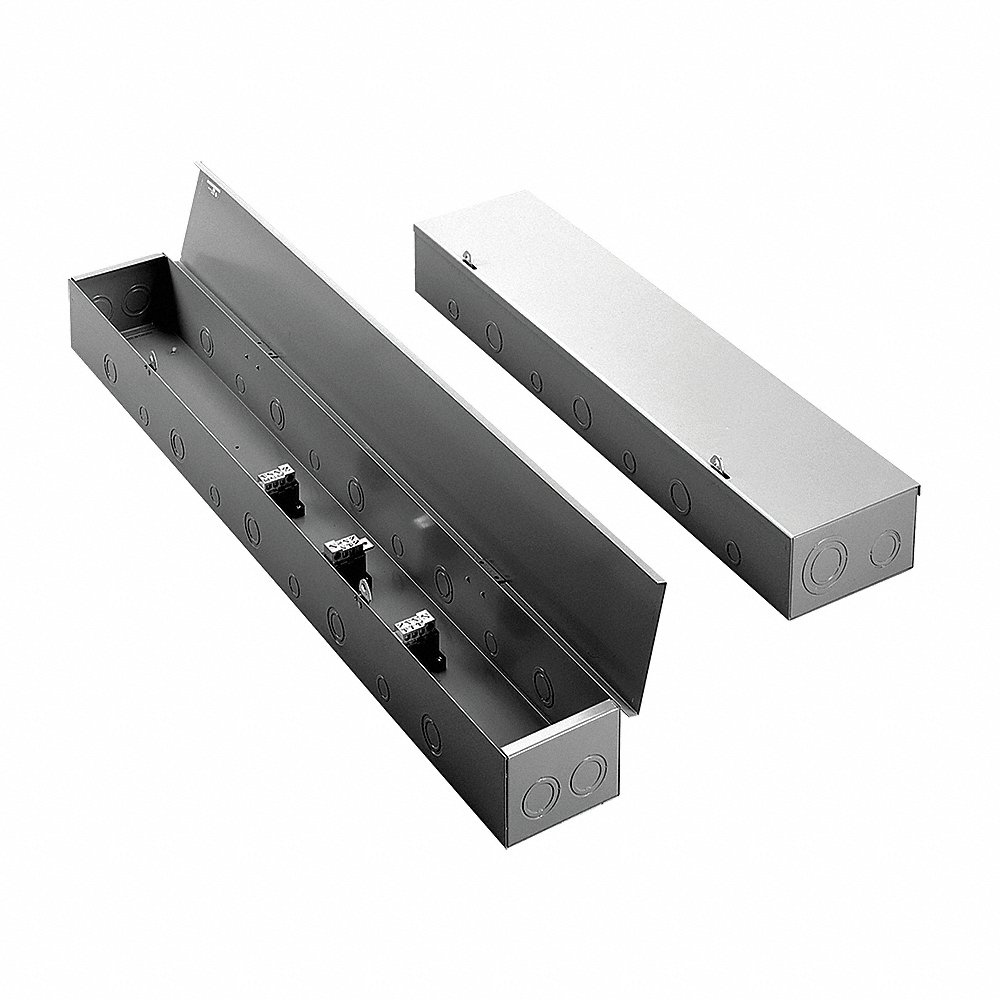

AST4404R | 6" | 400A | 6 ga. | - | Gray | Steel | IP30 | Slot With Lockout Tab | €831.85 |
