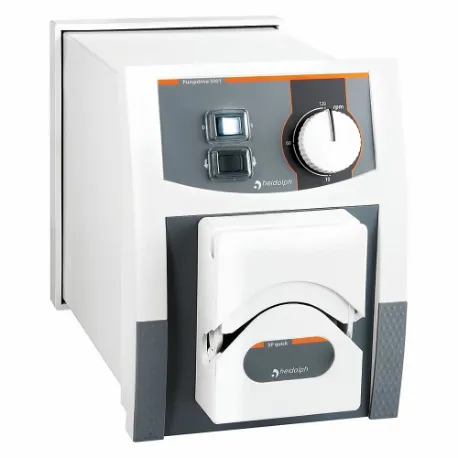

HEIDOLPH 036150130 Chemical Metering Pump, Variable, 3, 500 cps Viscosity, 138.48 gpd Flow Rate
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5,582.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Metal |
| Chemical Metering Pump Type | Peristaltic |
| Degassing Valve Included | No |
| Discharge Connection Size | Not Applicable |
| Discharge Connection Type | Not Applicable |
| Flow Rate (maximum) | 138.48 GPD |
| Flow Rate Of Water Output Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Height | 8 55/64" |
| Hp - Pumps | 1/7 hp |
| Includes | Adaptor |
| Intake Connection Size | Not Applicable |
| Intake Connection Type | Not Applicable |
| Length | 10 5/64" |
| Max. Flow Rate | 138.48 GPD |
| Max. Flow Rate | 5.77 GPH |
| Max. Hp | 1/7 hp |
| Max. Media Temp. | 205°C |
| Max. Motor Speed | 120 RPM |
| Max. Pressure | 29 psi |
| Max. Shut Off Pressure | 29 psi |
| Max. Viscosity | 3500 cPS |
| Maximum Motor Speed | 120 RPM |
| Media Temp. Range | -80°C to +205°C |
| Min. Flow Rate | 0.01 mL/min. |
| Min. Media Temp. | -80°C |
| Motor Hp | 1/7 hp |
| Motor Mounting Type | Insulated Drive System |
| Mounting Type | Insulated Drive System |
| Nameplate Voltage | 115V AC |
| No. Of Feeds | 0 |
| Number Of Feeds | 0 |
| Overall Height | 8.9" |
| Overall Length | 10.1" |
| Overall Width | 6 1/2" |
| Phase | Single |
| Phase - Pumps | 1 |
| Priming | Self Priming |
| Pump Type | Peristaltic |
| Reproducibility | -5.0% to +5.0% |
| Reproducibility | -5% to +5% |
| Reproducibility - Pumps | -5% to +5% |
| Roller Material | TFE |
| Self Priming | Yes |
| Tubing Material | Sold Separately |
| Width | 6 17/32" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 25.65 |
| Ship width (cm) | 16.51 |
| Country of Origin | DE |
