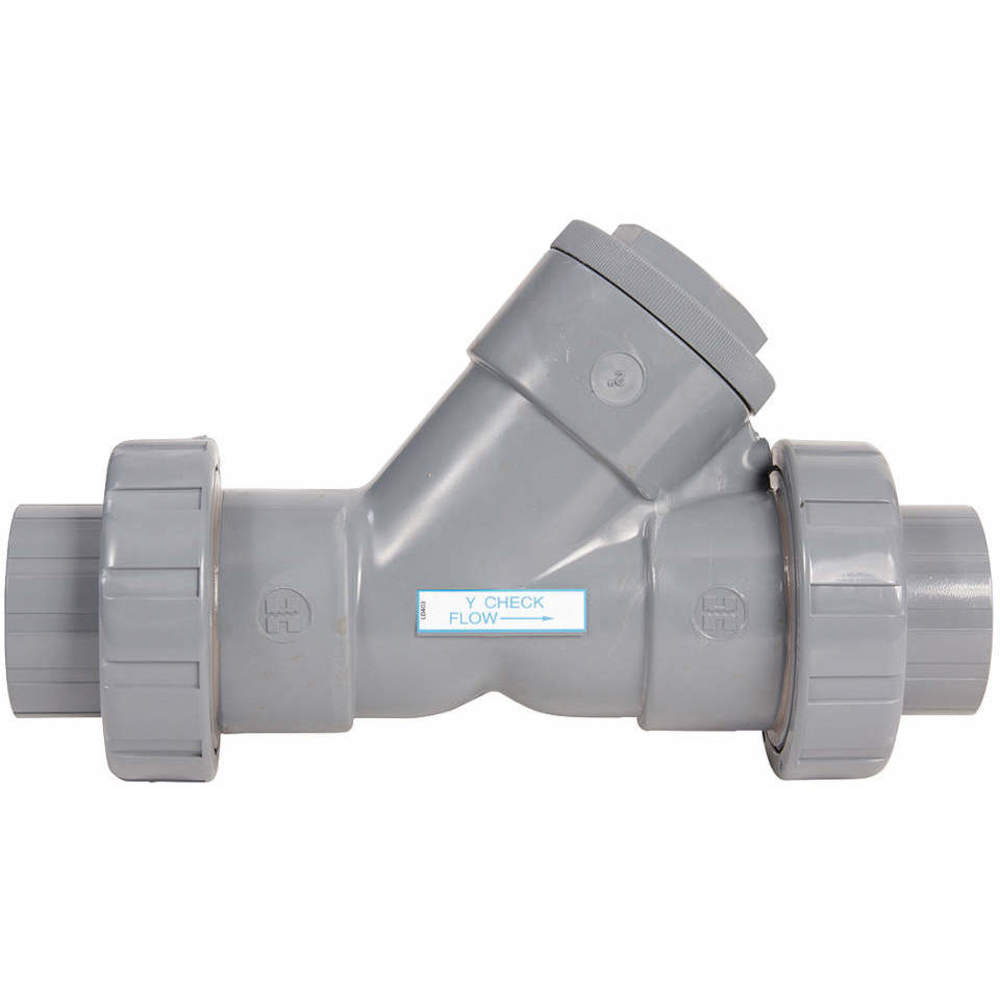

HAYWARD YC20150TEU True Union Y Check Valve CPVC 1-1/2 Inch
Item: AH8LVPModel: YC20150TEUCross Ref: 38W251
7 In Stock
Ships within 2 days via
10.00% off
€1,072.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | True Union Y Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | CPVC |
| Cap To Inlet Center | 4 5/8" |
| Cap To Inlet Center | 4-20/32" |
| Check Mechanism | Piston |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 3 psi |
| Flow Coefficient (cv) | 45 |
| Flow Rate | 45 GPM |
| For Media | Water |
| Height - Cap To Inlet Center | 4 5/8" |
| Hex Size | 2" |
| Includes Counterweight | No Counterweight |
| Length | 12.078" |
| Manufacturer Warranty | 3 yrs. |
| Material | CPVC |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 190°F |
| Media Temperature Range | 34°F to 190°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Operating Temperature - Maximum | 190°F |
| Operating Temperature - Minimum | 34°F |
| Overall Length | 12.07" |
| Pipe Size | 1 1/2" |
| Piston Material | CPVC |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Silent Check | Standard |
| Size | 1 1/2" |
| Standards | Astm D1784 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Y-Style |
| Valve Series | YC Series |
| Width | 4 3/4" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 17.46 |
| Ship length (cm) | 30.68 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Body Material | Pipe Size | Max. Temp. | Seat Material | Cracking Pressure | Seal Material | Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| YC10050TU | FNPT x FNPT | PVC | 1/2" | 140°F | FKM | 3 psi | FKM | 0.8 GPM | €247.44 | |
| YC10050SU | Socket x Socket | PVC | 1/2" | 140°F | FKM | 3 psi | FKM | 0.8 GPM | €247.44 | |
| YC10075TU | FNPT x FNPT | PVC | 3/4" | 140°F | FKM | 3 psi | FKM | 3 GPM | €273.04 | |
| YC10075SU | Socket x Socket | PVC | 3/4" | 140°F | FKM | 3 psi | FKM | 3 GPM | €273.04 | |
| YC10100TU | FNPT x FNPT | PVC | 1" | 140°F | FKM | 3 psi | FKM | 9 GPM | €292.34 | |
| YC10100SU | Socket x Socket | PVC | 1" | 140°F | FKM | 3 psi | FKM | 9 GPM | €292.34 | |
| YC10125TU | FNPT x FNPT | PVC | 1 1/4" | 140°F | FKM | 3 psi | FKM | 26 GPM | €473.85 |
