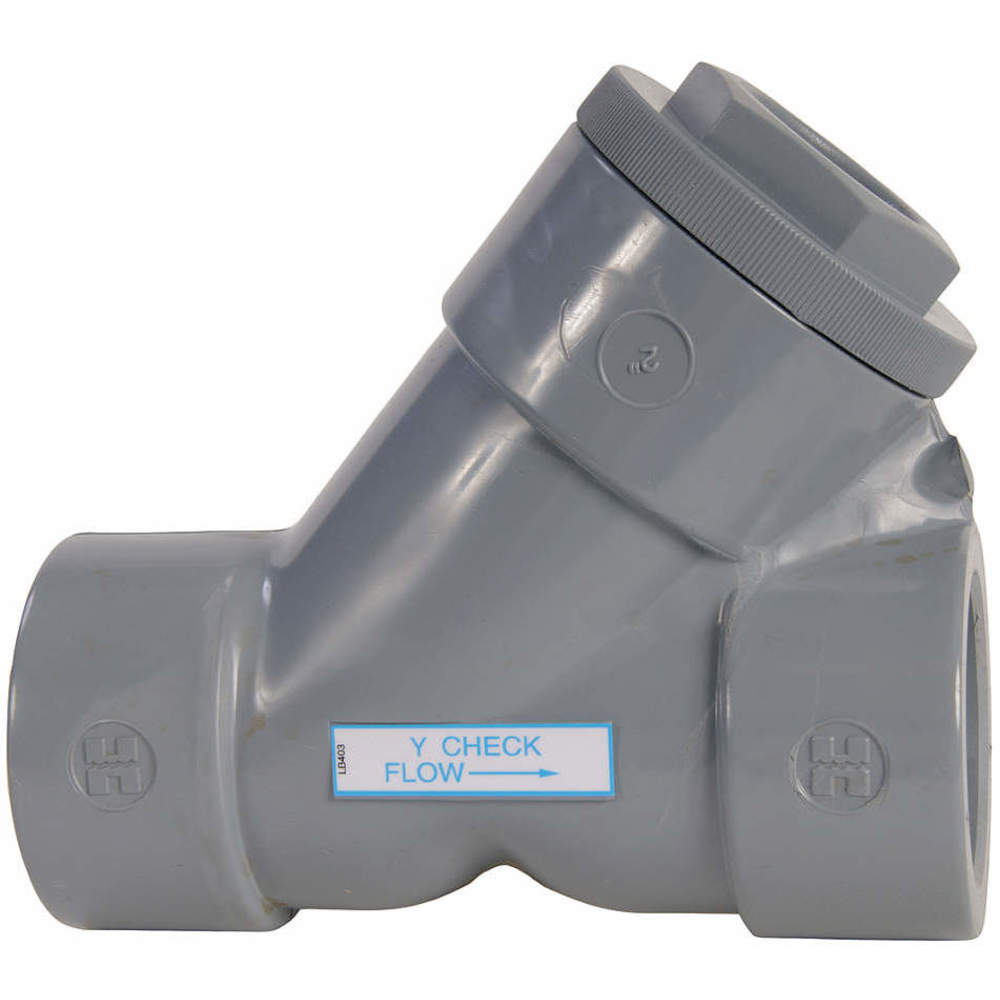

HAYWARD YC20100F Y Check Valve CPVC 1 Inch Flanged
Item: AH8LPVModel: YC20100FCross Ref: 38W140
7 In Stock
Ships within 2 days via
10.00% off
€700.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Y Check Valve |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Body Material | CPVC |
| Check Mechanism | Piston |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | Flange x Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Cracking Pressure | 3 psi |
| Flow Coefficient (cv) | 9 |
| Flow Rate | 9 GPM |
| For Media | Water |
| Includes Counterweight | No Counterweight |
| Length | 7.844" |
| Manufacturer Warranty | 3 yrs. |
| Material | CPVC |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 190°F |
| Media Temperature Range | 34°F to 190°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Operating Temperature - Maximum | 190°F |
| Operating Temperature - Minimum | 34°F |
| Overall Height | 4 5/8" |
| Overall Length | 8.97" |
| Pipe Size | 1" |
| Piston Material | CPVC |
| Seal Material | FKM |
| Seat Material | FKM |
| Silent Check | Standard |
| Size | 1" |
| Standards | Astm D1784 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Y-Style |
| Valve Series | YC Series |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 11.75 |
| Ship length (cm) | 19.92 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Model | Body Material | Pipe Size | Connection Type | Max. Temp. | Flow Rate | Seat Material | Cracking Pressure | Max. Water Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| YC10050T | PVC | 1/2" | FNPT x FNPT | 140°F | 0.8 GPM | FKM | 3 psi | 150 psi | €234.70 | |
| YC10050S | PVC | 1/2" | Socket x Socket | 140°F | 0.8 GPM | FKM | 3 psi | 150 psi | €222.42 | |
| YC10050F | PVC | 1/2" | Flange x Flange | 140°F | 0.8 GPM | FKM | 3 psi | 150 psi | €291.50 | |
| YC10100T | PVC | 1" | FNPT x FNPT | 140°F | 9 GPM | FKM | 3 psi | 150 psi | €260.11 | |
| YC10100S | PVC | 1" | Socket x Socket | 140°F | 9 GPM | FKM | 3 psi | 150 psi | €264.63 | |
| YC10100F | PVC | 1" | Flange x Flange | 140°F | 9 GPM | FKM | 3 psi | 150 psi | €386.86 | |
| YC10125T | PVC | 1 1/4" | FNPT x FNPT | 140°F | 26 GPM | FKM | 3 psi | 150 psi | €413.09 |
