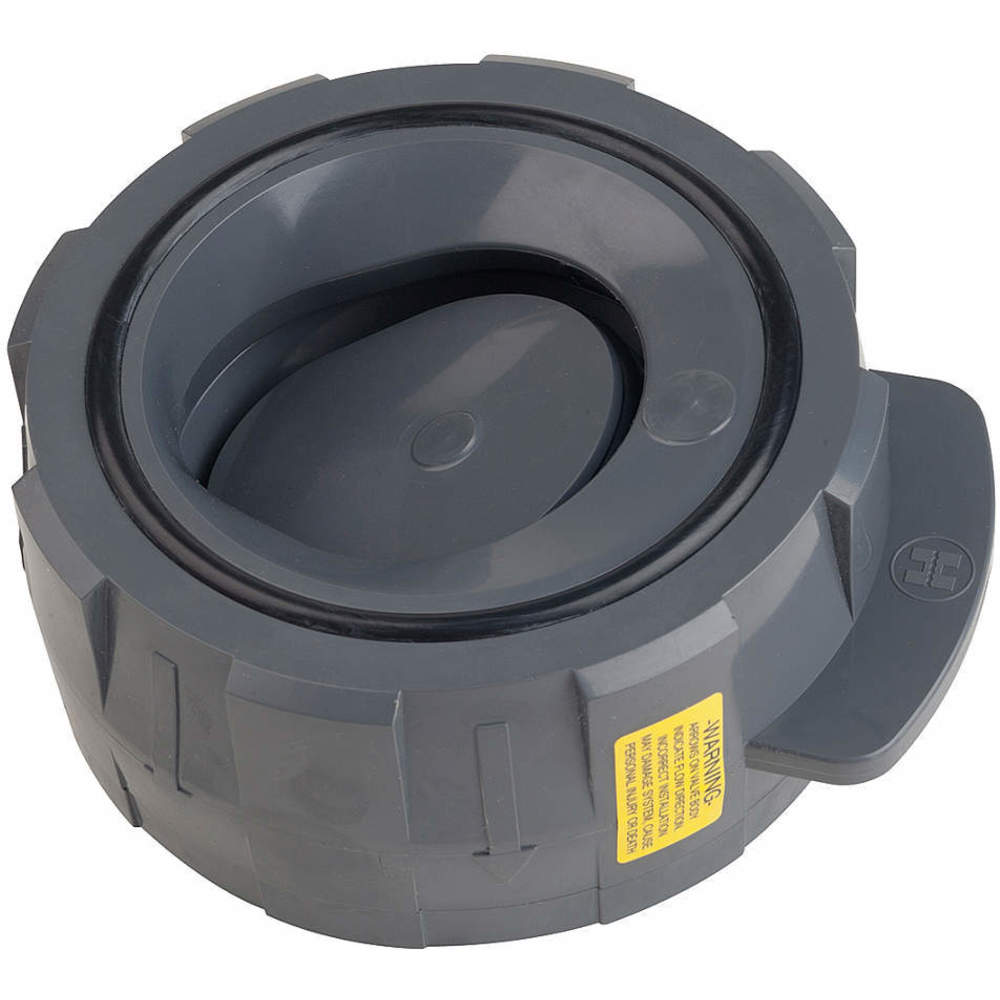

HAYWARD WCV1300ES Wafer Check Valve PVC 3 Inch
Item: AH8KEVModel: WCV1300ESCross Ref: 38V970
7 In Stock
Ships within 2 days via
10.00% off
€750.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wafer Check Valve |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Body Material | PVC |
| Check Mechanism | Swing |
| Connection Size - Side 1 | 3" |
| Connection Size - Side 2 | 3" |
| Connection Type | Wafer |
| Connection Type - Side 1 | Wafer |
| Connection Type - Side 2 | Wafer |
| Cracking Pressure | 3 psi |
| Disc Material | PVC |
| Flow Coefficient (cv) | 87 |
| Flow Rate | 220 GPM |
| For Media | Water |
| Includes Counterweight | No Counterweight |
| Length | 2.406" |
| Manufacturer Warranty | 3 yrs. |
| Material | PVC |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 140°F |
| Media Temperature Range | 70°F to 140°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 70°F |
| Overall Height | 6 1/2" |
| Overall Length | 2.41" |
| Pipe Size | 3" |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Silent Check | Standard |
| Size | 3" |
| Spring Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | WCV Series |
| Width | 5 1/4" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Body Material | Pipe Size | Max. Temp. | Seat Material | Cracking Pressure | Seal Material | Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| WCV2400VS | Wafer | CPVC | 4" | 190°F | FKM | 3 psi | FKM | 315 GPM | €1,307.64 | |
| WCV1200VS | Wafer | PVC | 2" | 140°F | FKM | 3 psi | FKM | 90 GPM | €688.46 | |
| WCV1250VS | Wafer | PVC | 2 1/2" | 140°F | FKM | 3 psi | FKM | 155 GPM | €759.17 | |
| WCV1300VS | Wafer | PVC | 3" | 140°F | FKM | 3 psi | FKM | 220 GPM | €906.56 | |
| WCV1400VS | Wafer | PVC | 4" | 140°F | FKM | 3 psi | FKM | 315 GPM | €1,071.41 | |
| WCV1600VS | Wafer | PVC | 6" | 140°F | FKM | 3 psi | FKM | 1000 GPM | €1,503.80 | |
| WCV1800VS | Wafer | PVC | 8" | 140°F | FKM | 3 psi | FKM | 1225 GPM | €2,846.17 |
