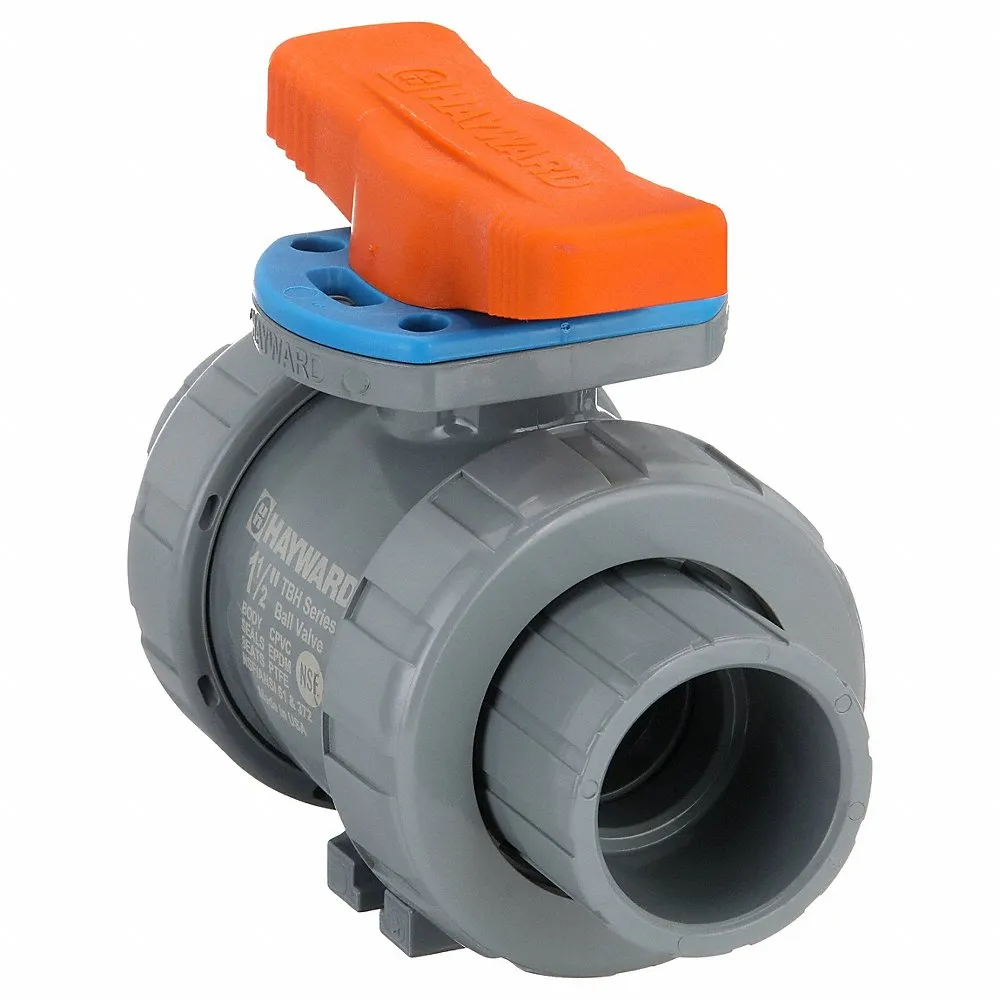

HAYWARD TBH2150ASTE0000 Manual Two-Way Ball Valve, 1 1/2 Inch, CPVC, Straight, Full Port Ball Port
Item: CA9XHAModel: TBH2150ASTE0000Cross Ref: 466H91
7 In Stock
Ships within 2 days via
10.00% off
€254.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| 3-a Compliance | Not Rated |
| Ball Material | CPVC |
| Ball Opening Size | 1 12/25" |
| Ball Port Style | Full Port |
| Body Material | CPVC |
| Coefficient Of Volume | 90 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type - Side 1 | True Union Socket, True Union NPT |
| Connection Type - Side 2 | Socket |
| For Media | Corrosive Chemicals, Water |
| Handle | Locking Tee |
| Handle Color | Red |
| Handle Height | 3.89" |
| Handle Length | 5.17" |
| Handle Material | Glass Filled Polypropylene |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Manufacturer Warranty | 3 yrs. |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 250 psi |
| Media Temperature Range | 34°F to 190°F |
| Nominal Valve Size | 1 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 10.65" |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Special Features | Actuator Compatible |
| Standards | Astm D1784 Cell Class 23447, Astm D4101 Cell Class 85580, Nsf/Ansi 372 |
| Stem Material | CPVC |
| Stem Type | Blowout Resistant |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Tbh |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 1.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 27.05 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
