HAYWARD TBH1037A0SV0000 PVC Socket Ball Valve, Locking Lever, 3/8 Inch Pipe Size
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€74.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | PVC |
| Ball Opening Size | 0.53" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | PVC |
| Body Style | True Union |
| Coefficient Of Volume (cv) | 2.8 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | Socket |
| Connection Type - Side 1 | True Union Socket |
| Connection Type - Side 2 | Socket |
| For Media | Corrosive Chemicals, Water |
| Handle | Locking Tee |
| Handle Color | Red |
| Handle Height | 2.82" |
| Handle Length | 3 1/2" |
| Handle Material | Glass Filled Polypropylene |
| Handle Type | Lever Locking |
| Hose I.d. | 3/8" |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Manufacturer Warranty | 3 yrs. |
| Max. Pressure | 250 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 250 psi |
| Media Temperature Range | 34°F to 140°F |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Pieces | 1 |
| Overall Length | 6.65" |
| Pipe Size | 3/8" |
| Port | Full |
| Seal Material | FKM |
| Seat Material | PTFE |
| Special Features | Actuator Compatible |
| Standards | Astm D1784 Cell Class 12454, Astm D4101 Cell Class 85580, Nsf/Ansi 372 |
| Stem Material | PVC |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +140°F |
| Tube Size | 3/8" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Tbh |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Length | Pipe Size | Tube Size | Hose I.d. | Body Material | Connection Type | Max. Pressure | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

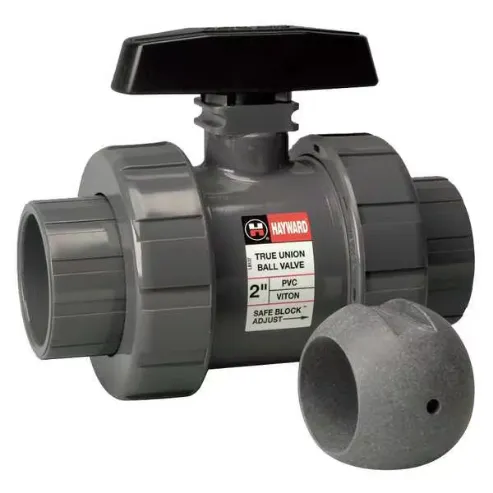

TBH1125ASTV0Z00 | 9.61" | 1 1/4" | 1 1/4" | 1 1/4" | PVC | Socket | 250 psi | PVC | €204.00 |
