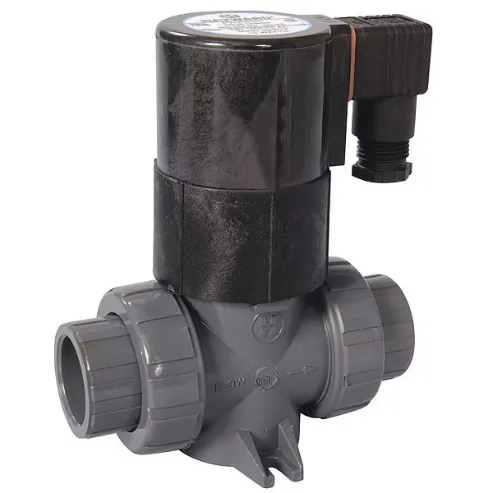

HAYWARD SV20100STV Solenoid Valve 1 Inch Nc 115v Cpvc
Item: AC8MEYModel: SV20100STVCross Ref: 3CEP1
7 In Stock
Ships within 2 days via
10.00% off
€1,043.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | CPVC |
| Coefficient Of Volume | 3.8 |
| Coil Enclosure | Watertight, Without Junction Box |
| Coil Insulation Class | Class F |
| Electrical Connections | 1/2" Conduit |
| Flow Rate | 5 FPS |
| For Media | Acids, Salt Water, Water |
| Frequency | 60 Hz |
| Hz | 50 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPT |
| Max. Airflow | 11.5 GPM |
| Max. Ambient Temperature | 190°F |
| Max. Flow Rate | 5 fps |
| Max. Fluid Temp. | 190°F |
| Max. Fluid Temperature | 200°F |
| Max. Operating Pressure Differential - Air/inert Gas | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 120 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 90 psi |
| Min. Ambient Temperature | 34°F |
| Min. Fluid Temperature | 120°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | 4 |
| Nominal Pipe Size | 1" |
| Operating Environment | Corrosive, Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 0.047" |
| Orifice Diameter | 3/8" |
| Outlet Connection Type | NPT |
| Overall Height | 6 19/32" |
| Overall Length | 5 1/2" |
| Overall Width | 3" |
| Pipe Size | 1" |
| Safe Working Water Pressure | 120 psi |
| Seal Material | FPM |
| Standards | Csa, Ul Listed |
| Valve Body Style | Straight |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Inline Single |
| Valve Ways | 2-Way |
| Voltage | 120V AC |
| Wattage | 19.2 W |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 16.75 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 9.4 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Body Material | Max. Fluid Temp. | Coefficient Of Volume | Seal Material | Overall Height | Overall Length | Valve Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV10050STV | 1/2" | PVC | 140°F | 2.3 | - | - | - | Normally Closed | €731.50 | |
| SV10075STV | 3/4" | PVC | 140°F | 3.2 | FPM | 6 19/32" | 5 1/2" | Normally Closed | €986.55 | |
| SV10100STV | 1" | PVC | 140°F | 3.8 | FPM | 6 19/32" | 5 1/2" | Normally Closed | €1,112.77 | |
| SV10050STE | 1/2" | PVC | 140°F | 2.3 | EPDM | 6 5/16" | 5 5/16" | Normally Closed | €709.13 | |
| SV10075STE | 3/4" | PVC | 140°F | 3.2 | EPDM | 6 5/8" | 5.312" | Normally Closed | €960.19 | |
| SV10100STE | 1" | PVC | 140°F | 3.8 | EPDM | 6 5/8" | 5 1/2" | Normally Closed | €1,060.96 | |
| SV20050STV | 1/2" | CPVC | 190°F | 2.3 | FPM | 6 5/16" | 5 5/16" | Normally Closed | €800.28 |
