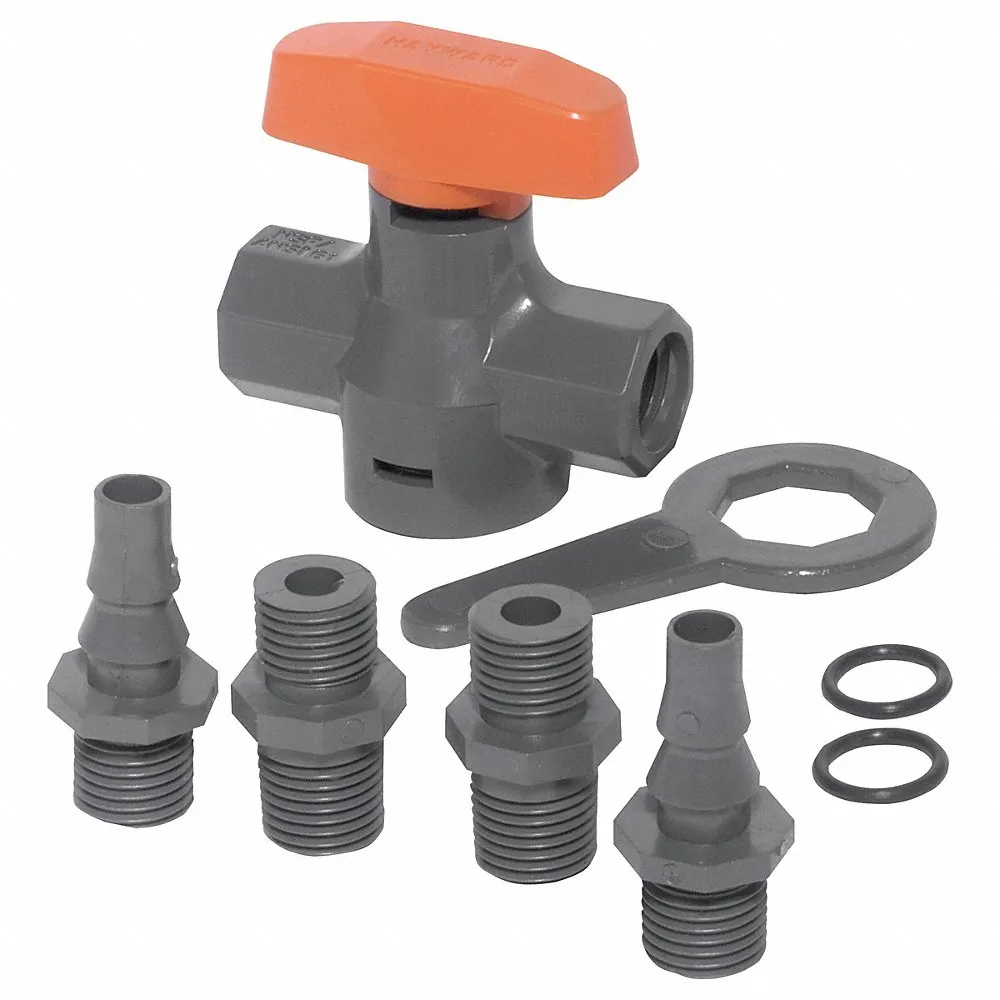

HAYWARD LC12 Manual Two-Way Ball Valve, 1/4 Inch, PVC, Straight, 150 psi Max. Pressure, One-Piece
Item: BZ4GANModel: LC12Cross Ref: 801EN2
7 In Stock
Ships within 2 days via
10.00% off
€48.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| 3-a Compliance | Not Rated |
| Ball Material | PVC |
| Ball Port Style | Standard Port |
| Body Material | PVC |
| Channel | Open Line |
| Coefficient Of Volume (cv) | 2.25 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type - Side 1 | NPTF |
| Connection Type - Side 2 | NPT |
| For Media | Corrosive Chemicals, Water |
| Handle | Tee |
| Handle Color | Red |
| Handle Height | 1.51" |
| Handle Length | 1.76" |
| Handle Material | PVC |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 150 psi |
| Media Temperature Range | 34°F to 140°F |
| Nominal Valve Size | 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 2.1" |
| Pool Type | Commercial |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Standards | Astm D1784 Cell Class 12454, Nsf/Ansi 372 |
| Stem Material | PVC |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
