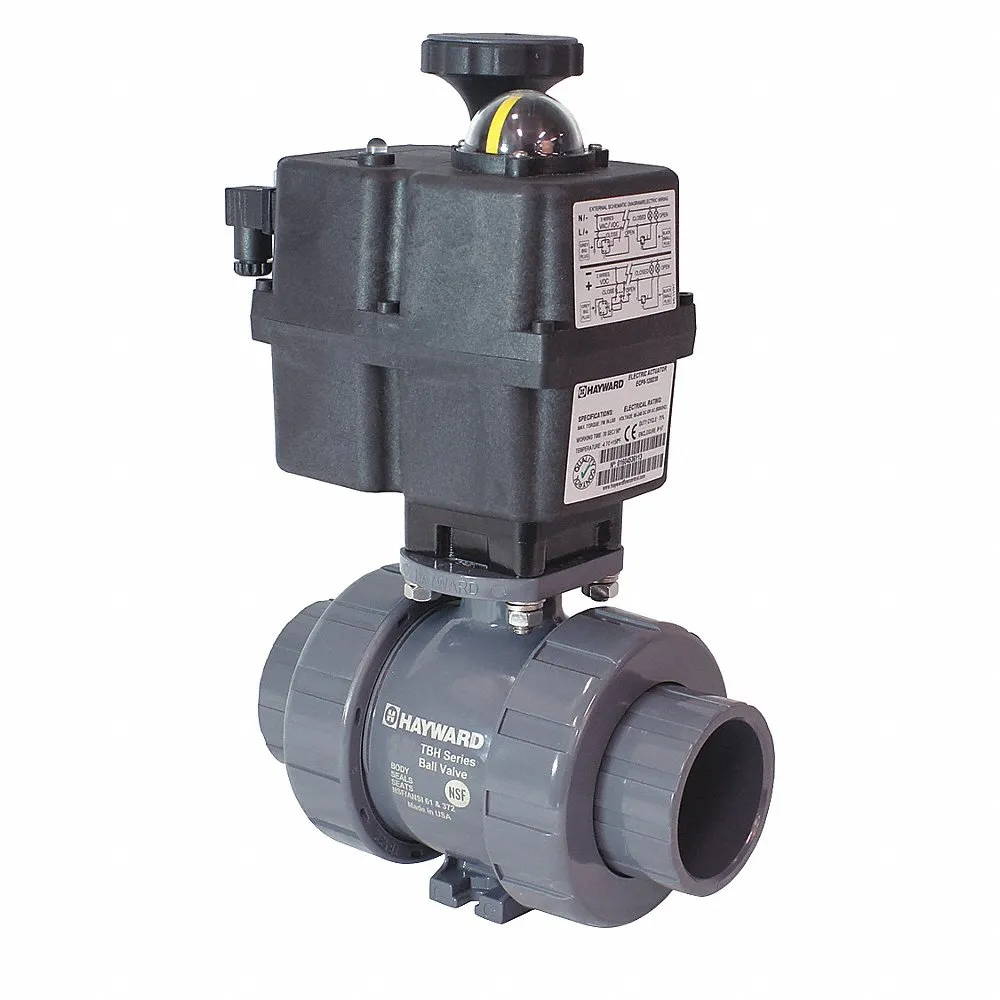

HAYWARD ECPTBH205STE Electrically Actuated Two-Way Ball Valve, 1/2 Inch, CPVC, 24 to 265V AC/DC, 2-Way
Item: BZ8ETAModel: ECPTBH205STECross Ref: 466J06
7 In Stock
Ships within 2 days via
10.00% off
€1,311.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| 3-a Compliance | Not Rated |
| Actuator Ambient Temperature - Maximum | 190°F |
| Actuator Ambient Temperature - Minimum | 40°F |
| Actuator Cycle Time - 90° | 10 sec. |
| Actuator Duty Cycle | 75% |
| Actuator Enclosure Material | Glass Filled Polypropylene |
| Actuator Features | Heater, Manual Override, Position Indicator, Status Indicator Lights, Thermal Overload Protection |
| Actuator Maximum Torque | 359 lbs.-in. |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Actuator Output Shaft Material | Grade 303 Stainless Steel |
| Actuator Series | ECP |
| Ball Material | CPVC |
| Ball Port Style | Full Port |
| Body Material | CPVC |
| Coefficient Of Volume (cv) | 8 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | True-Union Socket, True-Union FNPT |
| Connection Type - Side 1 | True Union Socket, True Union NPT |
| Connection Type - Side 2 | True Union Socket, True Union NPT |
| Fail Safe Position | Fail Last |
| For Media | Corrosive Chemicals, Water |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Ip Rating | IP67 |
| Manufacturer Warranty | 3 yrs. |
| Max. Media Temperature | 190°F |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 250 psi |
| Maximum Current | 20 mA |
| Media Temperature Range | 34°F to 190°F |
| Min. Media Temperature | 34°F |
| Nominal Valve Size | 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Seal Material | FKM |
| Seat Material | PTFE |
| Stem Material | CPVC |
| Stem Type | Blowout Resistant |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Tbh |
| Valve Ways | 2-Way |
| Voltage | 24-265V AC/DC |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
