HAYWARD EAUTBH120STE Actuated Ball Valve, 2 Inch Pipe Size, 250 PSI, 120 VAC, PTFE Seat, PVC
Item: CR3TVBModel: EAUTBH120STECross Ref: 797ZG7
7 In Stock
Ships within 2 days via
10.00% off
€1,357.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Cycle Time - 90° | 2.5 sec. |
| Actuator Duty Cycle | 25% |
| Actuator Electrical Entry Size | 1/2" |
| Actuator Enclosure Material | Glass Filled Polypropylene |
| Actuator Features | Auxiliary Limit Switch, Thermal Overload Protection |
| Actuator Maximum Torque | 120 lbs.-in. |
| Actuator Motor Type | Unidirectional |
| Actuator Operation | 90° |
| Actuator Series | EAU1 Series |
| Ball Material | PVC |
| Ball Port Style | Full Port |
| Body Material | PVC |
| Body Seal Material | EPDM |
| Body Style | 2-Way |
| Coefficient Of Volume (cv) | 8 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | True Union Socket, True Union FNPT |
| Connection Type - Side 1 | True Union Socket, True Union NPT |
| Connection Type - Side 2 | True Union Socket, True Union NPT |
| Fail Safe Position | Fail Last |
| For Media | Corrosive Chemicals, Water |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Manufacturer Warranty | 3 yrs. |
| Max. Media Temperature | 140°F |
| Max. Pressure | 250 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 250 psi |
| Maximum Current | 1.8A |
| Media Temperature Range | 34°F to 140°F |
| Min. Media Temperature | 34°F |
| Mount | Integral |
| Nominal Valve Size | 2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 7.99" |
| Pipe Size | 2" |
| Pipe Type | NPT Conduit |
| Port | Full |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | PVC |
| Tube Size | 2" |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Tbh |
| Valve Structure | One Piece |
| Valve Ways | 2-Way |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 3.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 20.29 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Seal Material | Tube Size | Body Seal Material | Body Material | Port | Max. Pressure | Ball Material | Mount | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

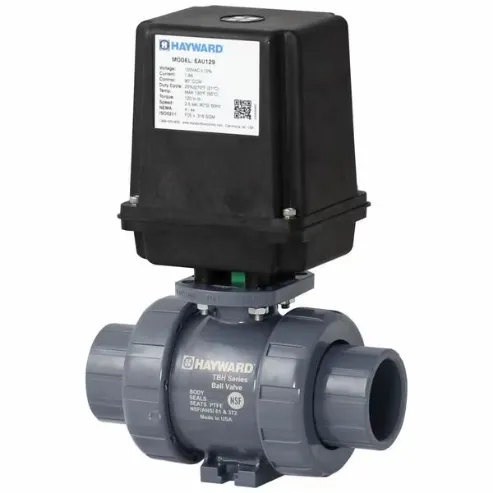

| EAUTBH115STE | EPDM | 1 1/2" | EPDM | PVC | Full | 250 psi | PVC | Integral | €1,242.72 | |
| EAUTBH115STV | - | 1 1/2" | FPM | PVC | Full | 250 psi | PVC | Integral | €1,397.72 | |

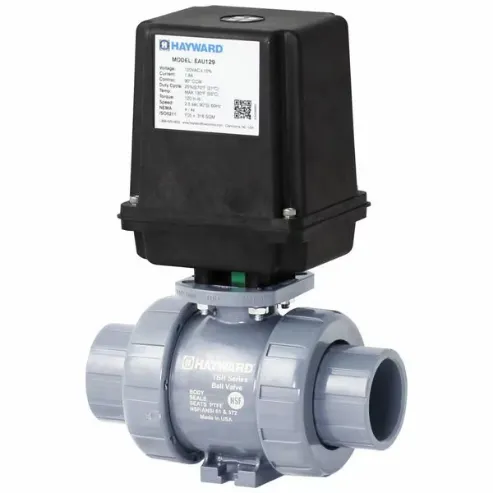

| EATBH110STE | EPDM | 1" | - | PVC | Full | 250 psi | PVC | Integral | €847.37 | |
| EAUTBH110STV | - | 1" | FPM | PVC | Full | 250 psi | PVC | Integral | €1,212.64 | |
| EAUTBH110STE | EPDM | 1" | EPDM | PVC | Full | 250 psi | PVC | Integral | €1,212.64 | |
| EAUTBH105STE | EPDM | 1/2" | EPDM | PVC | Full | 250 psi | PVC | Integral | €1,278.49 | |
| EAUTBH105STV | FKM | 1/2" | FPM | PVC | Full | 250 psi | PVC | Integral | €1,136.71 |
