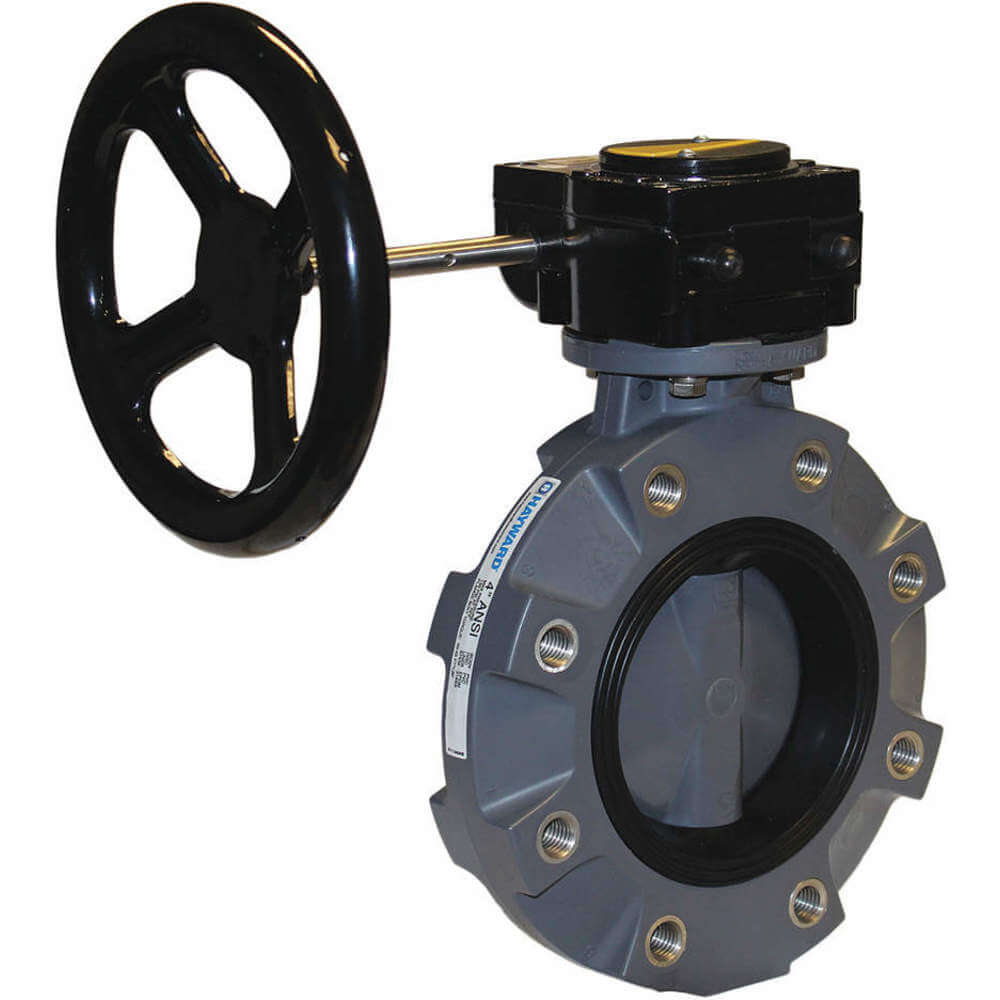

HAYWARD BYV44100A0VGI00 Butterfly Valve GFPP FPM 10 Inch Gear Lug
Get it by Tuesday, Aug 25
5.00% off
€10,614.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3-a Certified | Not Rated |
| Body Material | Glass Filled Polypropylene |
| Bolt Circle Dia. | 14 1/4" |
| Bolt Holes | 12 |
| Connection Type | Lug |
| Disc Alignment | Concentric |
| Disc Material | Glass Filled Polypropylene |
| Flow Coefficient | 4723 |
| Flow Coefficient Cv | 4723 |
| For Media | Chemicals, Water |
| Handle Dia. | 8" |
| Handle Type | Gear Operated Handwheel |
| Included Disc Position Indicator | Disc Position Indicator Included |
| Liner Material | FKM |
| Lug Dia. | 1" |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure-steam | Not Rated |
| Max. Water Pressure | 150 psi |
| Media Temp. | 32°F to 260°F |
| No. Of Bolt Holes | 12 |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| O-ring Material | FKM |
| Pipe Size | 10" |
| Stem Material | 316 Stainless Steel |
| Stop Positions | Unlimited |
| Style | Lug |
| Temp. | +32°F to +250°F |
| Vacuum Service Rating | Not Rated |
| Valve Series | BYV Series |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 56.52 |
| Ship length (cm) | 42.23 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Disc Material | Temp. | No. Of Bolt Holes | Lug Dia. | Style | Handle Type | Liner Material | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BYV11020A0EG000 | PVC | +32°F to +140°F | 4 | 3/4" | Wafer | Gear Operated Handwheel | EPDM | 32°F to 140°F | €1,493.08 | |
|
BYV11020A0EGI00 | PVC | +32°F to +140°F | 4 | 3/4" | Lug | Gear Operated Handwheel | EPDM | 32°F to 140°F | €1,906.58 | |
 |
BYV11020A0ELI00 | PVC | +32°F to +140°F | 4 | 3/4" | Lug | Lever | EPDM | 32°F to 140°F | €1,010.15 | |
|
BYV11020A0NG000 | PVC | +32°F to +140°F | 4 | 3/4" | Wafer | Gear Operated Handwheel | Buna N | 32°F to 140°F | €1,493.08 | |
|
BYV11020A0NGI00 | PVC | +32°F to +140°F | 4 | 3/4" | Lug | Gear Operated Handwheel | Buna N | 32°F to 140°F | €1,906.58 | |
 |
BYV11020A0NL000 | PVC | +32°F to +140°F | 4 | 3/4" | Wafer | Lever | Buna N | 32°F to 140°F | €634.39 | |
|
BYV11020A0NLI00 | PVC | +32°F to +140°F | 4 | 3/4" | Lug | Lever | Buna N | 32°F to 140°F | €1,010.15 |
