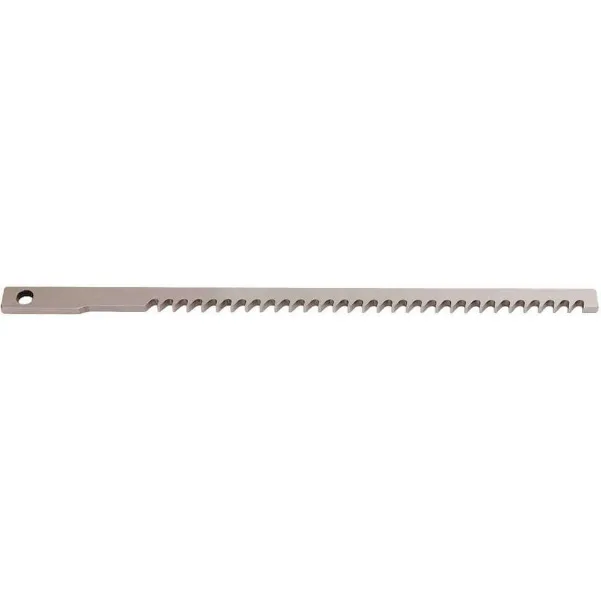

HASSAY SAVAGE CO. 11705 Keyway Broach W 5mm Cut L 3-1/8 In
Item: AA4NGJModel: 11705Cross Ref: 12V251
7 In Stock
Ships within 2 days via
10.00% off
€497.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Keyway Broach |
| Broach Length | 20" |
| Broach Style | Davis |
| Cut Profile | Keyway |
| Drilling Tool Configuration | Individual |
| Keyway Width | 5 mm |
| Material - Machining | High Speed Steel |
| Max. Length Of Cut | 3 1/8" |
| Max. Length Of Cut | 3-1/8" |
| Measurement System | Metric |
| Min. Length Of Cut | 5/8" |
| Number Of Shims Required | 0 |
| Primary Material Application | All Materials |
| Type | Keyway Broach |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 51.44 |
| Ship width (cm) | 3.81 |
| HS code | 8207600030 |
| Country of Origin | US |
Product Details:
- Keyway Width Tolerance (+.001 -.000")
Product Variants
| Model | Broach Length | Min. Length Of Cut | Max. Length Of Cut | Broach Style | Required Pressure | Cut Profile | Type | Number Of Shims Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10104 | 5 1/4" | 0.203" | 1 1/8" | I | - | Keyway | - | - | €118.63 | |
| 10106 | 5 1/4" | 0.203" | 1 1/8" | I | - | Keyway | - | - | €118.63 | |
| 10108 | 5 1/4" | 0.203" | 1 1/8" | I | - | Keyway | - | 1 | €118.63 | |
| 10206 | 7" | 0.297" | 1.688" | II | 990 lbs. | Keyway | - | - | €141.38 | |
| 10208 | 7" | 0.297" | 1.688" | II | 780 lbs. | Keyway | - | 1 | €141.38 | |
| 10210 | 7" | 0.297" | 1.688" | II | 1560 lbs. | Keyway | - | 1 | €141.38 | |
| 10212 | 7" | 0.297" | 1.688" | II | - | Keyway | - | 1 | €141.38 |
