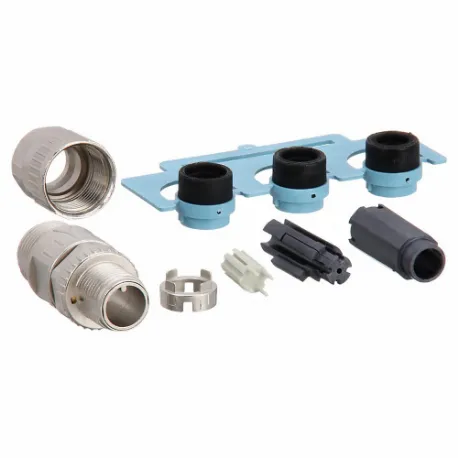

HARTING 21038211505 Circular Connector, A Coded, Male Thread with Straight Connection, 5 Pin Contacts
Item: CR3RDDModel: 21038211505Cross Ref: 793YH3
7 In Stock
Ships within 2 days via
10.00% off
€49.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Coding | A |
| Conductor Cross Section Size | 0.82 sq. mm |
| Connection Type | Crimp |
| Connector Application | A Coded For Signal, Low Power, And Gigabit Data |
| Connector Body Type | Pin |
| Connector Configuration | M12 Male Thread |
| Connector Gender | Male |
| Connector Orientation | Straight |
| Connector Size | M12 |
| Connector Type | Field-Wirable |
| For Max. Cable Dia. | 8.8 mm |
| Housing | Zinc Die Cast |
| Housing Material | Zinc Die Cast |
| Includes Nuts | Yes |
| Insulation Resistance | Greater Than 1000 M ohms |
| Ip Rating | IP65, IP67 |
| Lock Type | Screw Connection |
| Locking Style | Screw Connection |
| Max. Operating Temp. | 85°C |
| Maximum Contact Resistance | 10 M ohms |
| Maximum Operating Temperature | 185°F |
| Min. Operating Temp. | -40°C |
| Minimum Mating Cycles | 500 |
| Mounting Style | Male Thread |
| Mounting Type | Male Thread |
| Number Of Contacts | 5 Pin |
| Number Of Poles | 5 |
| Pole Type | Pin |
| Shielded | Yes |
| Temp. Range | -40°C to +85°C |
| Temperature Range | -40°F to +185°F |
| Thread Size | M12 |
| Voltage Rating | 48V AC/60V DC |
| Wire Size | 0.82 sq. mm |
| Wiring Type | Crimp |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Min. Operating Temp. | Mounting Style | Connector Type | Number Of Poles | Connector Body Type | Housing Material | Number Of Contacts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
21033816401 | Plug In | -40°C | Female Thread To Male Thread | Adapter | 4 | Socket | Zinc Die Cast | 4 | - | RFQ
|
 |
21033816404 | Push pull | -40°C | Female Thread To Male Thread | Adapter | 4, 8 | Socket | Zinc Die Cast | 4 Socket, 8 Socket | - | RFQ
|
 |
21033216410 | PCB Connection Solder | -40°C | Female Thread Pcb Adapter | Pcb/Circuit Board | 4 | Socket | Zinc Die Cast | 4 | - | RFQ
|
 |
21033212518 | PCB Connection Solder | -40°C | Pcb Adapter | PCB, Circuit Board | 5 | Socket | Liquid Crystal Polymer | 5 Socket | - | RFQ
|
 |
21033814410 | PCB Connection Solder | -40°C | Female Thread Pcb Adapter | PCB, Circuit Board | 4 | Socket | Zinc Die Cast | 4 | - | RFQ
|
 |
21033816410 | PCB Connection Solder | -40°C | Female Thread Pcb Adapter | Pcb/Circuit Board | 4 | Socket | Zinc Die Cast | 4 | - | RFQ
|
 |
21033816420 | PCB Connection Solder | -40°C | Female Thread Pcb Adapter | Pcb/Circuit Board | 4 | Socket | Zinc Die Cast | 4 | - | RFQ
|
