HARTING 21021511305 M8 Circular Connector, A Coded, M8 Male Thread with Straight Connection, 3 Pin Contacts
Item: CR3RGHModel: 21021511305Cross Ref: 793YG8
7 In Stock
Ships within 2 days via
10.00% off
€15.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Cable Outside Diameter | 5.1 mm |
| Coding | A |
| Conductor Cross Section Size | 0.34 sq. mm |
| Connection Finish | Gold Plated |
| Connection Type | Plated Contacts |
| Connector Application | A Coded For Signal, Low Power, And Gigabit Data |
| Connector Body Type | Pin |
| Connector Configuration | M8 Male Thread With Straight Connection |
| Connector Gender | Male |
| Connector Orientation | Straight |
| Connector Size | M8 |
| Connector Type | M8 Male Thread With Straight Connection |
| For Max. Cable Dia. | 5.1 mm |
| Housing | Zinc Die Cast |
| Housing Material | Zinc Die Cast |
| Includes Nuts | Yes |
| Insulation Resistance | Greater Than 1000 M ohms |
| Ip Rating | IP67 |
| Lock Type | Screw Connection |
| Locking Style | Screw Connection |
| Max. Contact Resistance | 10 M ohms |
| Max. Operating Temp. | 85°C |
| Maximum Operating Temperature | 185°F |
| Min. Operating Temp. | -40°C |
| Minimum Mating Cycles | 100 |
| Mounting Style | Male Thread |
| Mounting Type | Rear Mount |
| Nominal Current | 4A |
| Number Of Contacts | 3 |
| Number Of Poles | 3 |
| Pole Type | Pin |
| Shielded | No |
| Temp. Range | -40°C to +85°C |
| Temperature Range | -40°F to +185°F |
| Thread Size | M8 |
| Voltage Rating | 32V |
| Wire Size | 0.34 sq. mm |
| Wiring Type | Harax Quick Connect |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting Style | Connector Body Type | Mounting Type | Connector Gender | Min. Operating Temp. | Max. Operating Temp. | Connection Type | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

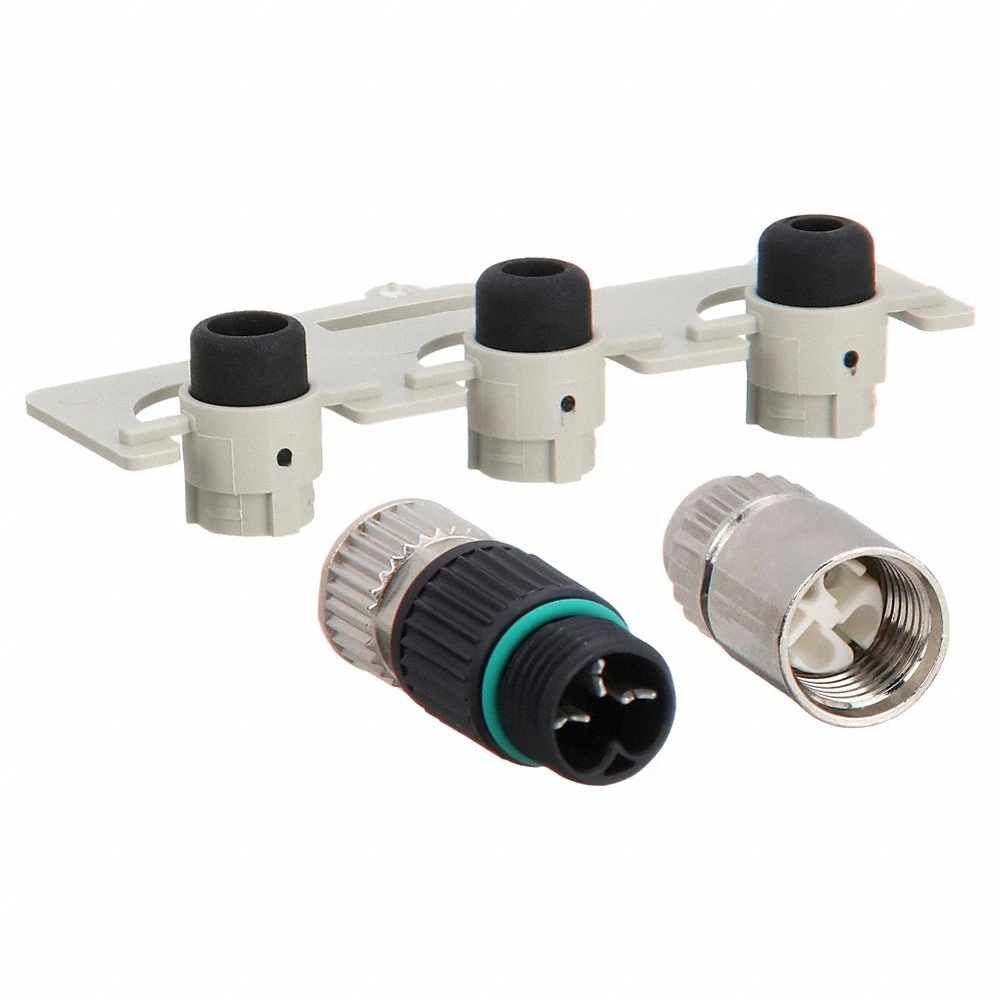

21021512305 | Female Thread | Socket | Panel | Female | -40°C | 85°C | Plated Contacts | 3 | €22.41 |
