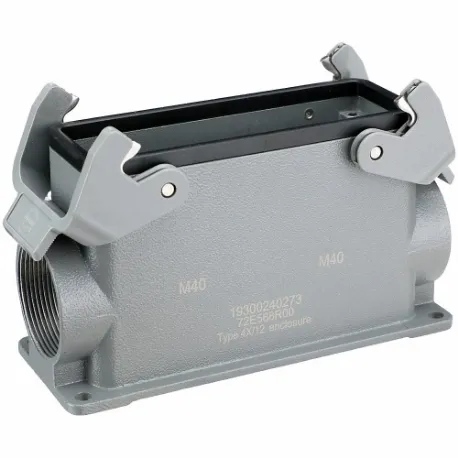

HARTING 19300240273 M40 Rectangular Connector Housing, Size 24 B, Surface Mount, Gray, Aluminum Die-Cast, IP65
Get it by Friday, Aug 21
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Housing |
| Cable Entry Thread Size | M40 |
| Entry Location | Side |
| Height | 80.8 mm |
| Housing Color | Gray |
| Ip Rating | IP65 |
| Length | 165 mm |
| Levers And Bolts Material | Polycarbonate, Stainless Steel |
| Lock Type | Dual Lever |
| Max. Operating Temp. | 125°C |
| Min. Operating Temp. | -40°C |
| Mounting Type | Surface |
| No. Of Entries | 2 |
| Product Type | Housing |
| Seal Material | Nbr |
| Series | HAN B Series |
| Size Designation | 24 B |
| Width | 57 mm |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 8.08 |
| Ship length (cm) | 16.5 |
| Ship width (cm) | 5.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Size Designation | Height | Cable Entry Thread Size | No. Of Entries | Ip Rating | Lock Type | Entry Location | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
19300061750 | 6 B | 55.9 mm | M20 | 1 | IP65 | Single Lever | Top | Housing | - | RFQ
|
 |
19300061295 | 6 B | 51.5 mm | M20 | 2 | IP65 | Single Lever | Side | Housing | €63.52 | |
 |
19300101231 | 10 B | 53.8 mm | M25 | 1 | IP65 | Dual Lever | Side | Housing | - | RFQ
|
|
19300161251 | 16 B | 55.8 mm | M25 | 1 | IP65 | Single Lever | Side | Housing | €57.21 | |
 |
19300161231 | 16 B | 58.5 mm | M25 | 1 | IP65 | Dual Lever | Side | Housing | €70.88 | |
|
19300241231 | 24 B | 55.8 mm | M25 | 1 | IP65 | Dual Lever | Side | Housing | - | RFQ
|
 |
19300241251 | 24 B | 55.8 mm | M25 | 1 | IP65 | Single Lever | Side | Housing | - | RFQ
|
