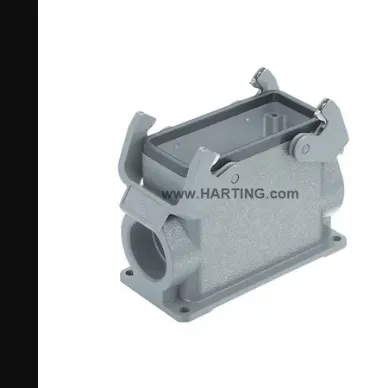

HARTING 19300160232 M32 Rectangular Connector Housing, Size 16 B, Surface Mount, Gray, Aluminum Die-Cast, IP65
Get it by Monday, Feb 16
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Housing |
| Application | Industrial Connectors |
| Cable Entry Thread Size | M32 |
| Color | Gray |
| Entry Location | Side |
| Flammability Rating | Ul 94 V-0 |
| Height | 80.8 mm |
| Housing Color | Gray |
| Housing/hood Material | Aluminum Die Cast |
| Ip Rating | IP65 |
| Length | 138.4 mm |
| Levers And Bolts Material | Polycarbonate, Stainless Steel |
| Lock Type | Dual Lever |
| Locking Type | Dual Lever |
| Max. Operating Temp. | 125°C |
| Mfr. Series | HAN B Series |
| Min. Operating Temp. | -40°C |
| Mounting Type | Surface |
| Number Of Entries | 1 |
| Operating Temp. Range | -40°C to +125°C |
| Product Type | Housing |
| Seal Material | Nbr |
| Size Designation | 16 B |
| Width | 57 mm |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 8.08 |
| Ship length (cm) | 13.84 |
| Ship width (cm) | 5.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Size Designation | Lock Type | Entry Location | Number Of Entries | Cable Entry Thread Size | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
19300060291 | IP65 | 6 B | Single Lever | Side | 2 | M25 | 73.5 mm | Surface | €70.06 | |
 |
19300060447 | IP65, IP66, IP67 | 6 B | Single Lever | Top | 1 | M32 | 71.6 mm | - | €44.48 | |
 |
19300060546 | IP65, IP66, IP67 | 6 B | Single Lever | Side | 1 | M25 | 72 mm | - | €44.76 | |
 |
19300060756 | IP65 | 6 B | Single Lever | Top | 1 | M25 | 74 mm | Cable To Cable | €70.70 | |
 |
19300060757 | IP65 | 6 B | Single Lever | Top | 1 | M32 | 74 mm | Cable To Cable | - | RFQ
|
 |
19300061295 | IP65 | 6 B | Single Lever | Side | 2 | M20 | 51.5 mm | Surface | €63.52 | |
 |
19300061440 | IP65, IP66, IP67 | 6 B | Single Lever | Top | 1 | M20 | 53.5 mm | - | €36.10 |
