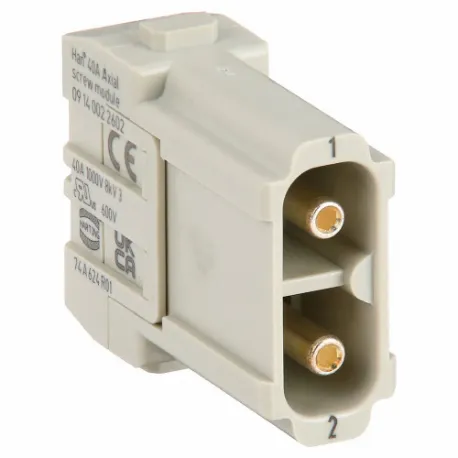

HARTING 09140022602 Industrial Rectangular Connector Insert, Screw, Male, 40 A Current Rating
Item: CR3TLPModel: 09140022602Cross Ref: 793X24
7 In Stock
Ships within 2 days via
10.00% off
€32.83 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert |
| Application | Industrial Connectors |
| Approximate Amperage Rating - Grounding Braid | 40A |
| Color | Gray |
| Connection Type | Screw |
| Connector Gender | Male |
| Current Rating | 40A |
| Flammability Rating | Ul 94 V-0 |
| Includes Poles | Yes |
| Insert Color | Gray |
| Insert Material | Polycarbonate |
| Max. Operating Temp. | 125°C |
| Maximum Contact Resistance | 0.3 M ohms |
| Mfr. Series | HAN Modular Series |
| Min. Operating Temp. | -40°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Number Of Contacts | 2 |
| Number Of Poles | 2 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Series | HAN-MODULAR Series |
| Voltage Rating | 1000/600V |
| Wire Size | 6 sq. mm to 10 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Operating Temp. | Current Rating | Number Of Contacts | Size Designation | Connector Gender | Voltage Rating | Wire Size | Includes Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09140010301 | 125°C | - | - | Modular Compact | - | - | - | - | - | RFQ
|
 |
09140010311 | 125°C | - | - | Modular Compact | - | - | - | - | - | RFQ
|
 |
09140012663 | 125°C | 200A | - | - | Male | 1000/600V | 25 sq. mm to 40 sq. mm | Yes | - | RFQ
|
 |
09140012762 | 125°C | 200A | - | - | Female | 1000/600V | 40 sq. mm to 70 sq. mm | Yes | - | RFQ
|
 |
09140012763 | 125°C | 200A | - | - | Female | 1000/600V | 25 sq. mm to 40 sq. mm | Yes | - | RFQ
|
 |
09140013001 | 125°C | 200A | - | - | Male | 1000/600V | 25 sq. mm to 70 sq. mm | No | - | RFQ
|
 |
09140013011 | 85°C | - | - | - | Male | - | - | - | - | RFQ
|
