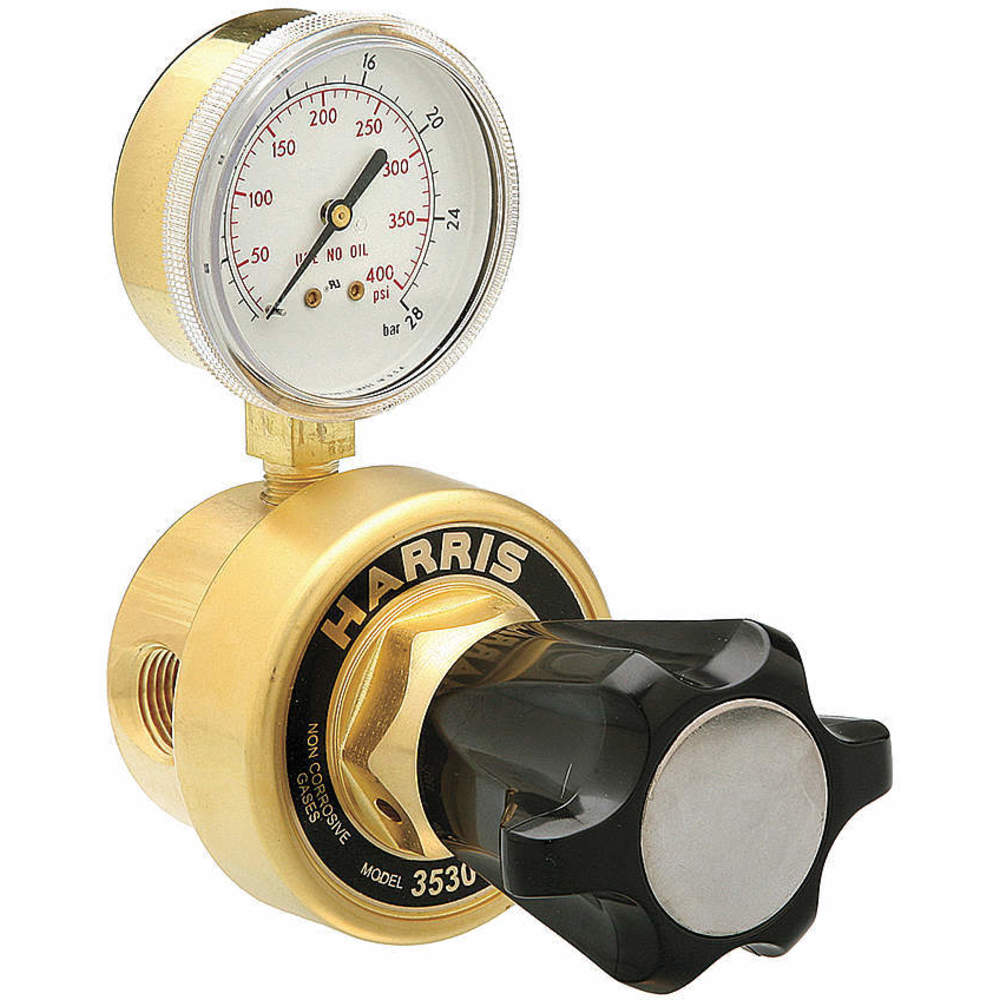

HARRIS KH1121 Specialty Gas Regulator Pipeline Noncorrosive
Item: AF9KKRModel: KH1121Cross Ref: 30AA66
7 In Stock
Ships within 2 days via
10.00% off
€1,026.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Specialty Gas Regulator |
| Application | Bulk Gas Distribution Systems, Emission Monitoring Systems Gases, High Flow, High Purity Gas Applications, Laser Gas Systems, Non-Corrosive High Flow Gas Applications, Process Analyzer Gases, Research Sample System Gases |
| Body Diameter | 2.75" |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Bonnet Material | Brass |
| Coefficient Of Volume | 0.15 |
| Control Type | Knob |
| Delivery | 0 to 250 psig |
| Delivery | 0 psig to 250 psig |
| Delivery Pressure Range | 0 psi to 250 psi |
| Diaphragm Material | 302 Stainless Steel |
| Features | Four Port Configuration, One High Pressure And Three Low Pressure, Self Reseating Internal Relief Valve |
| Filter Material | Nickel Plated Bronze |
| For Gas Type | Argon, Helium, Nitrogen |
| Gas Purity Rating | 99.999% |
| Gas Service | Non Corrosive |
| Gauge Diameter | 2 1/2" |
| Gauge Size | 2-1/2" |
| Gauge Size | 2 1/2" |
| Gauges Delivery Pressure | 400 psig |
| Helium Leak Integrity Rating | 1 x 10^-9 Cc/Sec |
| Inlet Connection | 1/2" NPTF |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1/2" |
| Inlet Connection Type | NPT |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 3000 psig |
| Mounting Type | Pipeline |
| Number Of Stages | Single |
| Outlet Connection | 1/2" |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 1/2" |
| Outlet Pressure (maximum) | 250 psig |
| Outlet Pressure (minimum) | 0 psig |
| Outlet Thread Direction | Right Hand |
| Overall Depth | 5.54" |
| Overall Height | 6.26" |
| Overall Length | 5 1/2" |
| Overall Width | 3.22" |
| Regulator Capacity | Heavy Duty |
| Regulator Series | Hp 3530 |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Supply Pressure Gauge | 4000 psig |
Shipping Info:
| Ship weight (kg) | 2.33 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
| HS code | 8481100090 |
| Country of Origin | US |
Product Details:
- Regulator Supply Type (Pipeline)
Product Variants
| Model | Number Of Stages | Body Material | Diaphragm Material | Mounting Type | Inlet Connection | Control Type | Max. Inlet Pressure | Gas Purity Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KH1000 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €689.44 | |
| KH1001 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €687.79 | |
| KH1002 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €668.85 | |
| KH1003 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €615.72 | |
| KH1004 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €688.51 | |
| KH1005 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €668.85 | |
| KH1006 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | 99% | €696.90 |
