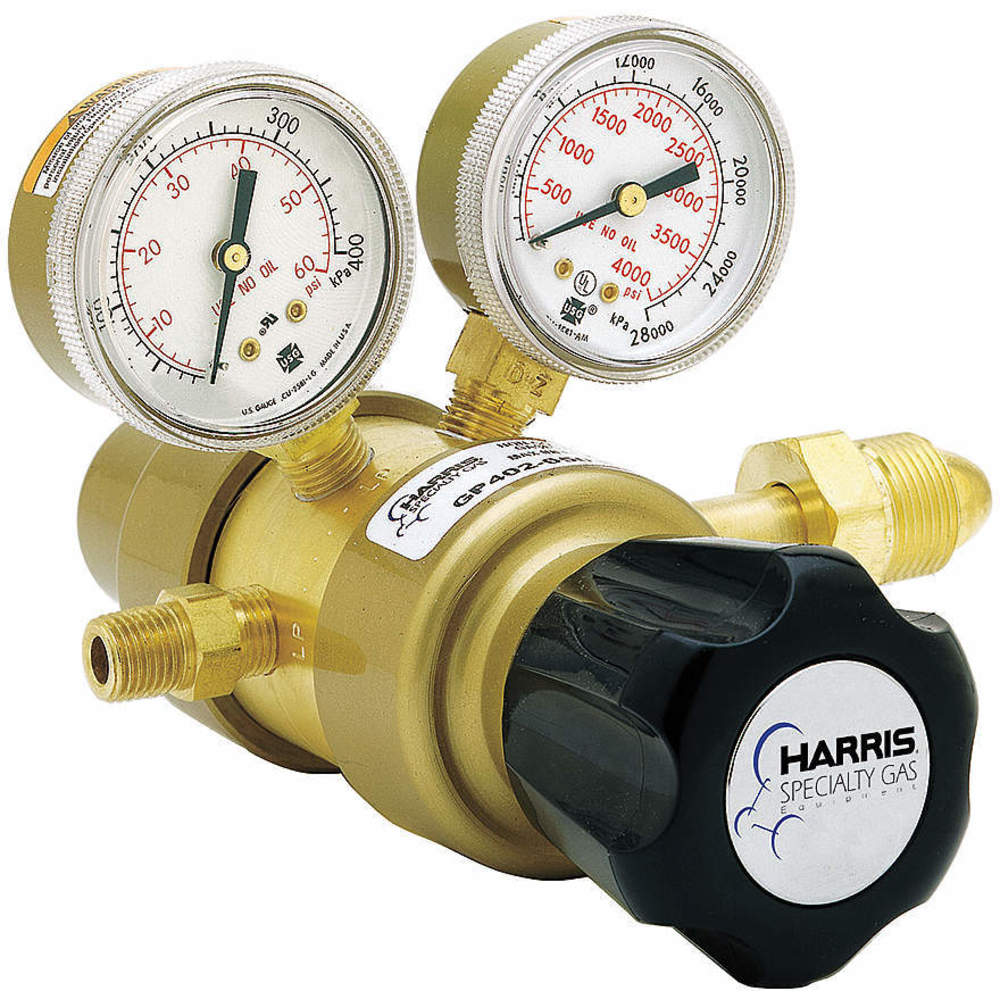

HARRIS KH1118 Specialty Gas Regulator Cylinder Air Cga-590
Item: AF9KKNModel: KH1118Cross Ref: 30AA63
7 In Stock
Ships within 2 days via
10.00% off
€616.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Specialty Gas Regulator |
| Application | General Purpose Laboratory |
| Body Dia. | 2 1/8" |
| Body Diameter | 2.125" |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Bonnet Material | Chrome Plated Die Cast |
| Cga Number | RP_CGA 590 |
| Coefficient Of Volume | 0.55 |
| Control Type | Knob |
| Delivery | 0 to 25 psi |
| Delivery | 0 psi to 25 psi |
| Delivery Pressure Range | 0 psi to 25 psi |
| Diaphragm Material | Neoprene |
| Features | Gas Shielding, One Piece Encapsulated Seat Design, To Protect The Seat From Particulate Contamination, Pressure Testing, Purging, Self Reseating Internal Safety Valve, Tamper Proof |
| Filter Material | Nickel Plated Bronze |
| Flow Coefficient | 0.15 |
| For Gas Type | Industrial Air |
| Gas Service | Air |
| Gauge Diameter | 2" |
| Gauge Size | 2" |
| Gauges Delivery Pressure | 150 psi |
| Inlet Connection | CGA 590 |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 0.965"-14 |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Left Hand |
| Max. Inlet Pressure | 3000 psig |
| Maximum Gauge Outlet Pressure | 4000 psig |
| Mounting Type | Cylinder |
| Number Of Stages | Two |
| Outlet Connection | 1/4" |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 1/4" |
| Outlet Pressure (maximum) | 125 psig |
| Outlet Pressure (minimum) | 0 psig |
| Overall Depth | 9.18" |
| Regulator Series | Gp 402 |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Supply Pressure Gauge | 4000 psig |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
| HS code | 8481100090 |
| Country of Origin | US |
Product Details:
- Regulator Supply Type (Cylinder)
Product Variants
| Model | Number Of Stages | Body Material | Diaphragm Material | Mounting Type | Inlet Connection | Control Type | Max. Inlet Pressure | Gas Purity Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KH1000 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €689.44 | |
| KH1001 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €687.79 | |
| KH1002 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €668.85 | |
| KH1003 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €615.72 | |
| KH1004 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €688.51 | |
| KH1005 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €668.85 | |
| KH1006 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | 99% | €696.90 |
