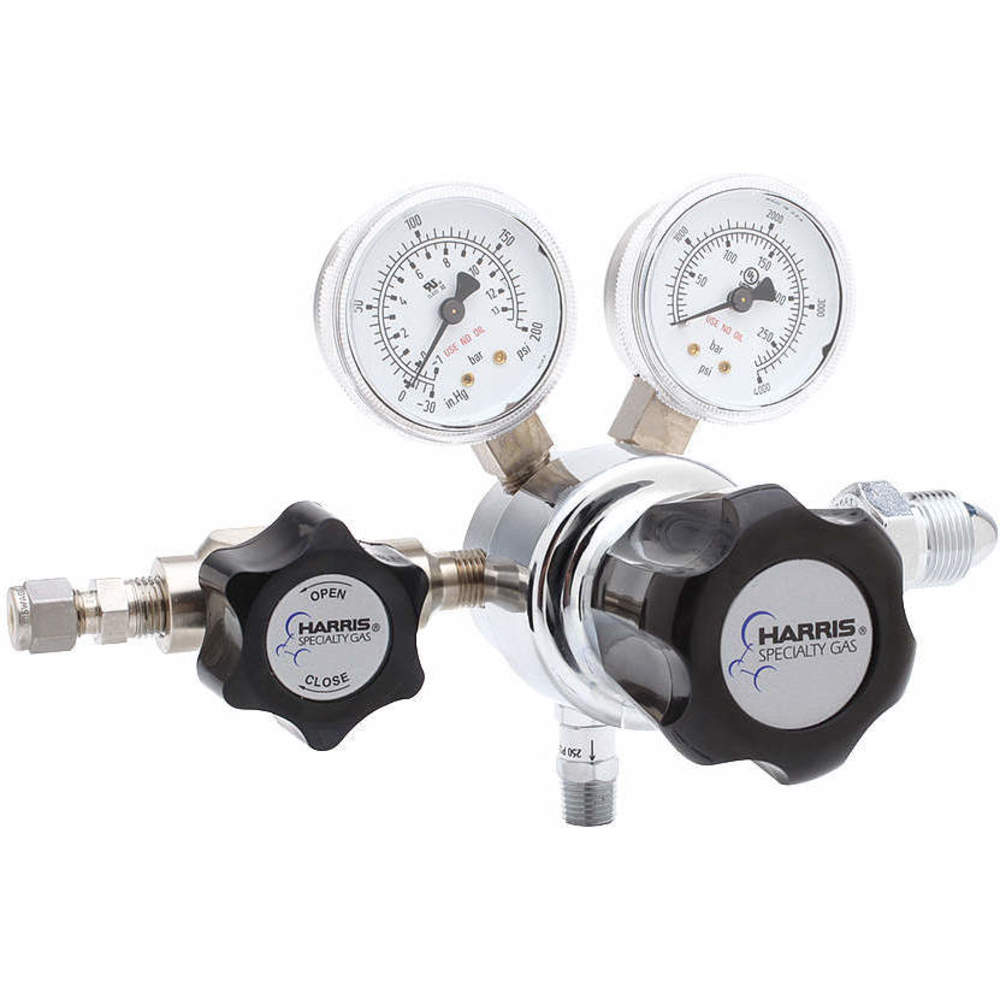

HARRIS KH1047 Gas Regulator 701 Air 590 Cga 0-50 Psi
Item: AD6PPHModel: KH1047Cross Ref: 46Z522
7 In Stock
Ships within 2 days via
10.00% off
€880.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Specialty Gas Regulator |
| Application | General Purpose Laboratory |
| Body Dia. | 2 1/8" |
| Body Diameter | 2.125" |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Cga Number | RP_CGA 590 |
| Coefficient Of Volume | 0.17 |
| Control Type | Knob |
| Cylinder Gas | Industrial Air |
| Delivery | 0-50 PSI |
| Delivery Pressure Range | 0 psi to 50 psi |
| Diaphragm Material | Stainless Steel |
| Features | Blanketing, External Relief Valve Standard, Pressure Testing, Purging |
| Filter Material | Nickel Plated Bronze |
| Flow Coefficient | 0.17 |
| For Gas Type | Industrial Air |
| Gas Purity Rating | 99.999% |
| Gas Service | Industrial Air |
| Gauge Diameter | 2" |
| Gauge Size | 2" |
| Gauges Delivery Pressure | 100 psi |
| Helium Leak Integrity Rating | 1 x 10^ 8 Cc/Sec |
| Inlet Connection | CGA 590 |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 0.965"-14 |
| Inlet Connection Type | NGO |
| Inlet Gauge | 4000 psig |
| Inlet Pressure (maximum) | 4350 psig |
| Inlet Thread Direction | Left Hand |
| Max. Inlet Pressure | 3000 psi |
| Mounting Location | Wall |
| Mounting Type | Cylinder |
| Number Of Stages | Single |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 1/4" |
| Outlet Pressure (maximum) | 50 psig |
| Outlet Pressure (minimum) | 0 psig |
| Outlet Thread Direction | Right Hand |
| Overall Depth | 5.13" |
| Overall Length | 5.13" |
| Pressure Rating | 3000 psig |
| Regulator Series | Hp 701 |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Supply Pressure Gauge | 4000 psi |
| Type | Single Stage |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 27.94 |
| HS code | 8481100090 |
| Country of Origin | US |
Product Variants
| Model | Number Of Stages | Body Material | Diaphragm Material | Mounting Type | Inlet Connection | Control Type | Max. Inlet Pressure | Gas Purity Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KH1000 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €689.44 | |
| KH1001 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €687.79 | |
| KH1002 | Single | Brass | Neoprene | Cylinder | CGA 320 | Knob | 3000 psi | - | €668.85 | |
| KH1003 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €615.72 | |
| KH1004 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €688.51 | |
| KH1005 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | - | €668.85 | |
| KH1006 | Single | Brass | Neoprene | Cylinder | CGA 350 | Knob | 3000 psi | 99% | €696.90 |
