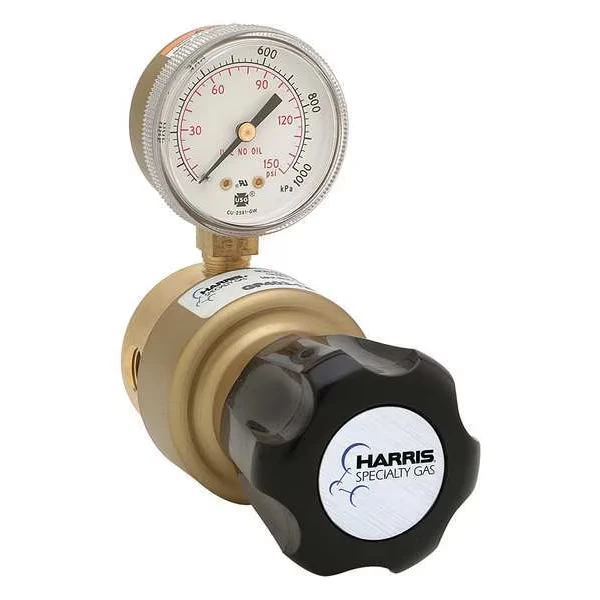

HARRIS 403015000D Specialty Gas Regulator, Single Stage, 1/4 Inch FNPT, 0 to 15 psi, Use With Non-Corrosive
Request a Quote
Payment
Delivery
Product Specifications:
| Application | General Purpose Laboratory Applications |
| Body Dia. | 2 1/8" |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Control Type | Knob |
| Delivery | 0 psig to 15 psig |
| Delivery Pressure | 0 psi to 15 psi |
| Diaphragm Material | Neoprene |
| Inlet | 1/4", FNPT, Left Hand |
| Inlet Connection Gender | Female |
| Inlet Thread Direction | Left Hand |
| Inlet Type | NPT Female Left Hand Inlet |
| Max. Gauge Outlet Pressure | 30 psig |
| Max. Inlet Pressure | 3000 psi |
| Max. Outlet Pressure | 15 psig |
| Mounting Location | Wall |
| Outlet Connection | 1/4" NPT M |
| Outlet Pressure | 0 psig |
| Outlet Type | NPT |
| Overall Depth | 5.13" |
| Overall Length | 5 1/4" |
| Overall Width | 2.42" |
| Regulator Application | Laboratory |
| Regulator Series | GP 403 |
| Seal Material | PTFE |
| Series | 403 Series |
| Type | Single Stage |
Shipping Info:
| Ship length (cm) | 13.34 |
| Ship width (cm) | 6.15 |
| Country of Origin | US |
