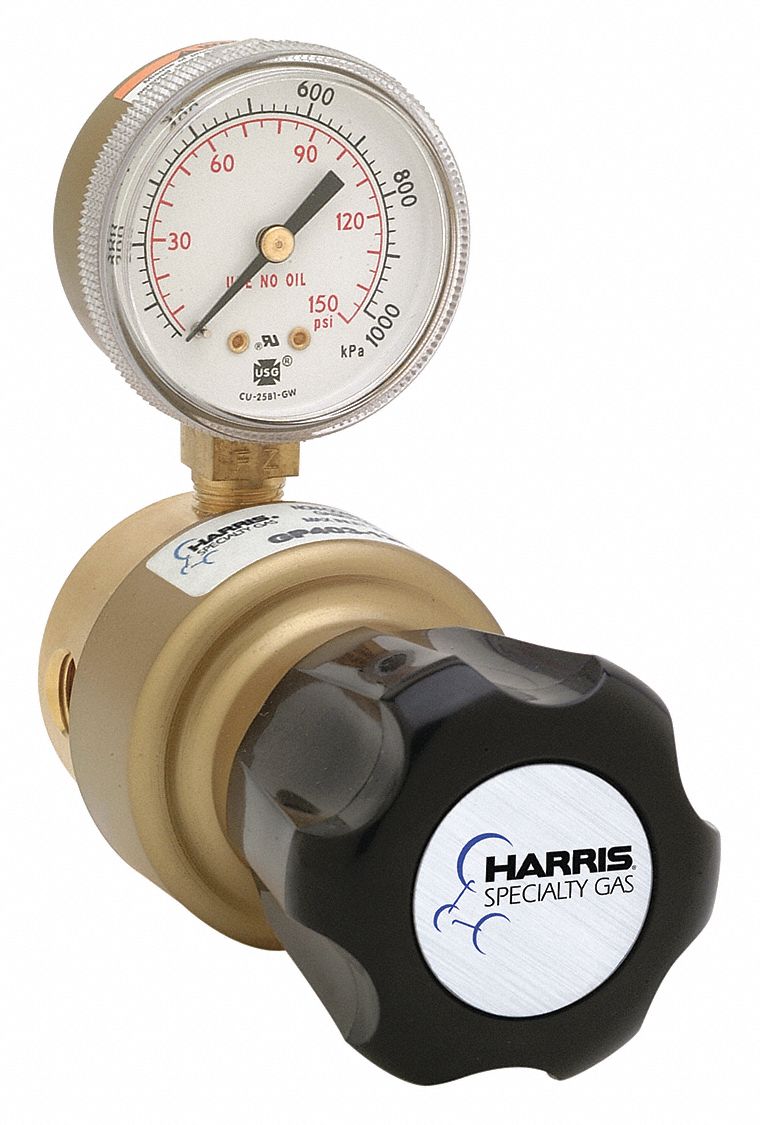

HARRIS 3001317 Specialty Gas Regulator Pipeline 1/4 Inch Fnpt
Item: AF9KLHModel: 3001317Cross Ref: 30AA82
7 In Stock
Ships within 2 days via
5.00% off
€486.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Specialty Gas Regulator |
| Application | General Purpose Laboratory Applications |
| Body Dia. | 2 1/8" , 2.125" |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Coefficient Of Volume | 0.17 |
| Control Type | Knob |
| Delivery | 0 psig to 125 psig |
| Delivery | 0 to 125 psig |
| Delivery Pressure | 0 psi to 125 psi |
| Diaphragm Material | Neoprene |
| Features | Blanketing, Pressure Testing, Purging, Tamper Proof, Self Reseating Internal Safety Valve |
| Flow Coefficient | 0.17 |
| For Gas Type | Argon, Helium, Nitrogen |
| Gas Service | Non Corrosive |
| Gauge Dia. | 2" |
| Gauge Size | 2" |
| Gauges Delivery Pressure | 150 psig |
| Inlet Connection | 1/4" NPTF |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | NPT |
| Inlet Thread Direction | Left Hand |
| Max. Gauge Outlet Pressure | 200 psig |
| Max. Inlet Pressure | 3000 psig |
| Max. Outlet Pressure | 125 psig |
| Min. Outlet Pressure | 0 psig |
| Mounting Location | Wall |
| Mounting Type | Pipeline |
| No. Of Stages | 1 |
| Outlet Connection | 1/4" |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 1/4" |
| Outlet Connection Type | NPT M |
| Overall Depth | 5.13" |
| Overall Length | 5 1/4" |
| Overall Width | 2.42" |
| Regulator Series | Gp 403 |
| Seal Material | PTFE |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
| HS code | 8481100090 |
Product Details:
- Regulator Supply Type (Pipeline)
Product Variants
| Product | Model | Max. Outlet Pressure | Body Dia. | Gauges Delivery Pressure | Delivery | For Gas Type | Mounting Type | Inlet Connection | Max. Inlet Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

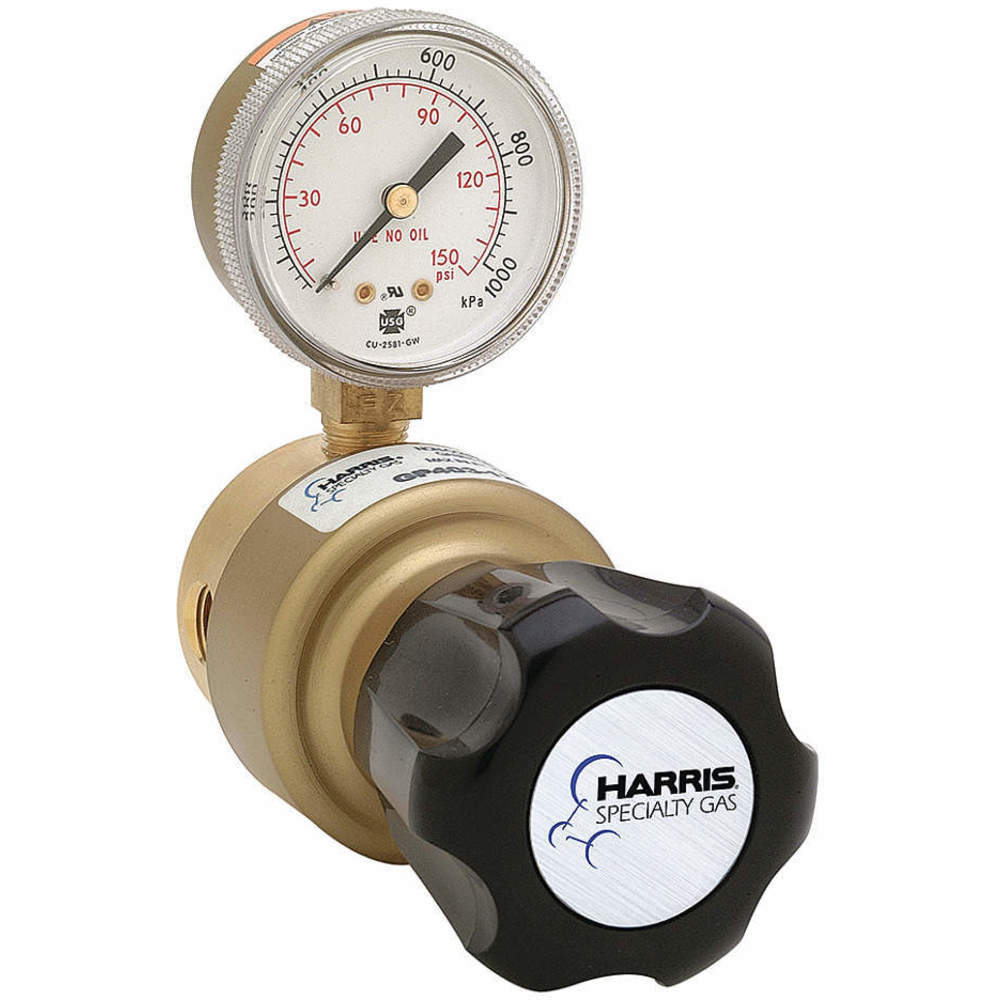

3001315 | 15 psig | 2 1/8" | 30 psig | 0 psig to 15 psig | Argon, Helium, Nitrogen | Pipeline | 1/4" NPTF | 3000 psig | €511.83 |
