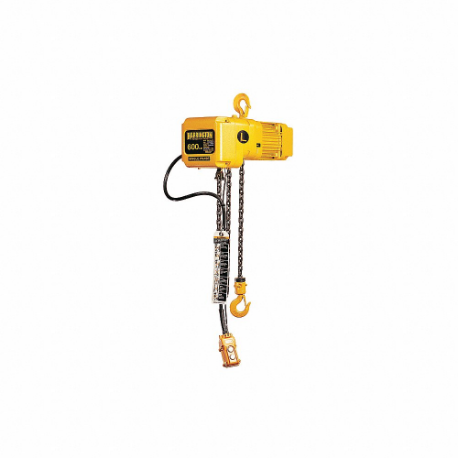

HARRINGTON SNER000600S-15 Electric Chain Hoist, 600 Lb Load Capacity, 1 Speeds, 115/230 Volt, 15 Fpm, 0.6 Hp
Get it by Tuesday, Aug 25
€3,255.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Body Finish | Powder Coating |
| Brake Type | Pull Rotor |
| Chain Finish | Powder Coated |
| Classification | H4 |
| Clutch | Friction |
| Clutch Type | Friction |
| Color | Yellow |
| Duty Classification | H4 - Heavy Duty |
| Finish | Powder Coating |
| Fixed Lift Speed | 15 FPM |
| For Max. Beam Flange Width | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Min. Beam Flange Width | Not Applicable |
| For Min. Beam Height | Not Applicable |
| Head Room | 14 1/2" |
| Headroom Size | 14 1/2" |
| Hoist Ip Rating | IP55 |
| Included | Chain Container |
| Included Brake | Brake Included |
| Included Clutch | Clutch Included |
| Lift Speed | 15 FPM |
| Lifting Capacity | 600 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 14 1/2" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Max. Lift Speed | Not Applicable |
| Max. Lifting Length | 15 ft. |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 14 1/2" |
| Min. Lift Speed | Not Applicable |
| Min. Radius Curve | Not Applicable |
| Min. Retracted Length | 13 13/16" |
| Motor Hp | 5/8 hp |
| Mounting Type | Hook Mounted No Trolley , Hook With No Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 1 |
| No. Of Speed | 1 |
| Operating Voltage | 115/230V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | IP65 |
| Phase | 1 |
| Speed Programmability | Non Programmable |
| Starts And Stops Per Hour | 360 |
| Thermal Protection | Included |
| Tonnage-lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
Shipping Info:
| Ship weight (kg) | 48.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Phase | Mounting Type | Lifting Capacity | Duty Classification | Lift Length | Operating Voltage | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED1000V-10 | 3/4 hp | 1 | Hook Mounted No Trolley | 1000 lbs. | H2 - Light Duty | - | 120V AC | White, Orange | €4,152.69 | |
| ED1000V-15 | 3/4 hp | 1 | Hook Mounted No Trolley | 1000 lbs. | H2 - Light Duty | - | 120V AC | White, Orange | €5,046.91 | |
| NER005L-10 | 3/4 hp | 3 | Hook Mounted No Trolley | 1000 lbs. | H4 - Heavy Duty | - | 208-230/460V AC | Yellow | €3,636.94 | |
| NER005L-20 | 3/4 hp | 3 | Hook Mounted No Trolley | 1000 lbs. | H4 - Heavy Duty | - | 208-230/460V AC | Yellow | €3,636.94 | |
| NER005L-15 | 3/4 hp | 3 | Hook Mounted No Trolley | 1000 lbs. | H4 - Heavy Duty | - | 208-230/460V AC | Yellow | €3,636.94 | |
| NER005S-20 | 1 1/4 hp | 3 | Hook Mounted No Trolley | 1000 lbs. | H4 - Heavy Duty | - | 208-230/460V AC | Yellow | €3,946.19 | |
| NER005S-15 | 1 1/4 hp | 3 | Hook Mounted No Trolley | 1000 lbs. | H4 - Heavy Duty | - | 208-230/460V AC | Yellow | €3,946.19 |
