HARRINGTON SHB080-20 Hoist/trolley Ansi/asme B30.16
Get it by Tuesday, Dec 23
10.00% off
€25,477.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist/Trolley |
| Body Depth | 16 1/2" |
| Body Material | Steel |
| Body Width | 28" |
| Brake Type | Double Pawl Spring |
| Chain Grade | Grade 100 |
| Chain Material | Manganese Alloy |
| Color | Yellow |
| Depth | 16 1/2" |
| Features | Heavy Duty Wheels And Steel Side Plates, Maintenance Free Sealed Trolley Bearings, Permanently Attached Hand Geared Trolley, Ultra Low Profile Lifting And Maximum Hook Travel |
| For Beam Flange Width | 5 1/2" to 8 21/32" |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | 8 21/32" |
| For Min. Beam Flange Height | 10 1/2" |
| For Minimum Beam Flange Width | 5 1/2" |
| Headroom | 10" |
| Hoist Mount | Geared Trolley |
| Hoist Overload Protection | No |
| Hook Opening | 2 1/2" |
| Housing Depth | 16 1/2" |
| Housing Length | 38 3/4" |
| Housing Width | 28" |
| Included Components | Safety Latch Hooks |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Length | 38.63" |
| Lever Length | Not Applicable |
| Lift Length | 20 ft. |
| Lifting Capacity | 16000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 2 13/32" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 16000 lbs. |
| Manufacturers Warranty Length | 2 yrs. |
| Material | Steel |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 10" |
| Minimum Retracted Length | 10" |
| Mount Type | Geared Trolley |
| No. Of Reeves | 3 |
| Number Of Load Chains | 1 |
| Operating Position | Vertical |
| Overload Protection | No |
| Overload Protection Included | Yes |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 65 lbs. |
| Pull To Lift Rated Load | 74 lb. |
| Pull To Lift Rated Load | 74 lbs. |
| Resistance Properties | Corrosion Resistant, Dirt Resistant, Dust Resistant, Rain Resistant |
| Tonnage - Lifting Capacity | 8 ton. |
| Trolley Configuration | Geared Trolley |
| Width | 28" |
Shipping Info:
| Ship weight (kg) | 465.75 |
| Ship height (cm) | 113.03 |
| Ship length (cm) | 82.55 |
| Ship width (cm) | 66.04 |
| HS code | 8425190000 |
| Country of Origin | JP |
Product Variants
| Model | Lifting Capacity | Pull Force To Lift Rated Load | Headroom | Lifting Hook Opening Width | Body Width | Body Depth | Depth | Min. Between Hooks | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

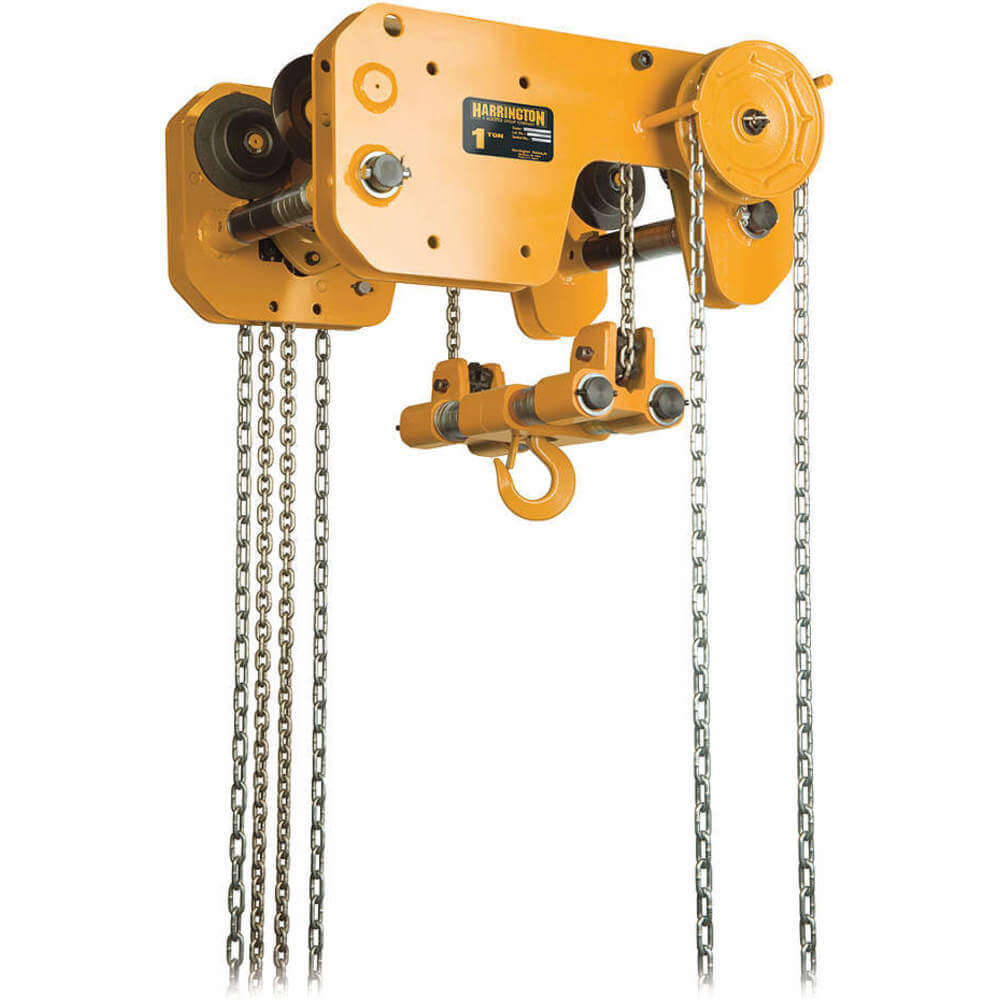

| SHB010-20 | 2000 lbs. | 59 lbs. | 4 1/2" | 1 3/32" | 21" | 9 3/4" | 40 3/25" | 4 1/2" | €11,562.82 | |
| SHB020-20 | 4000 lbs. | 54 lbs. | 5 11/16" | 1 13/32" | 24 1/2" | 11 1/2" | 11.437" | 5 3/4" | €11,972.74 | |

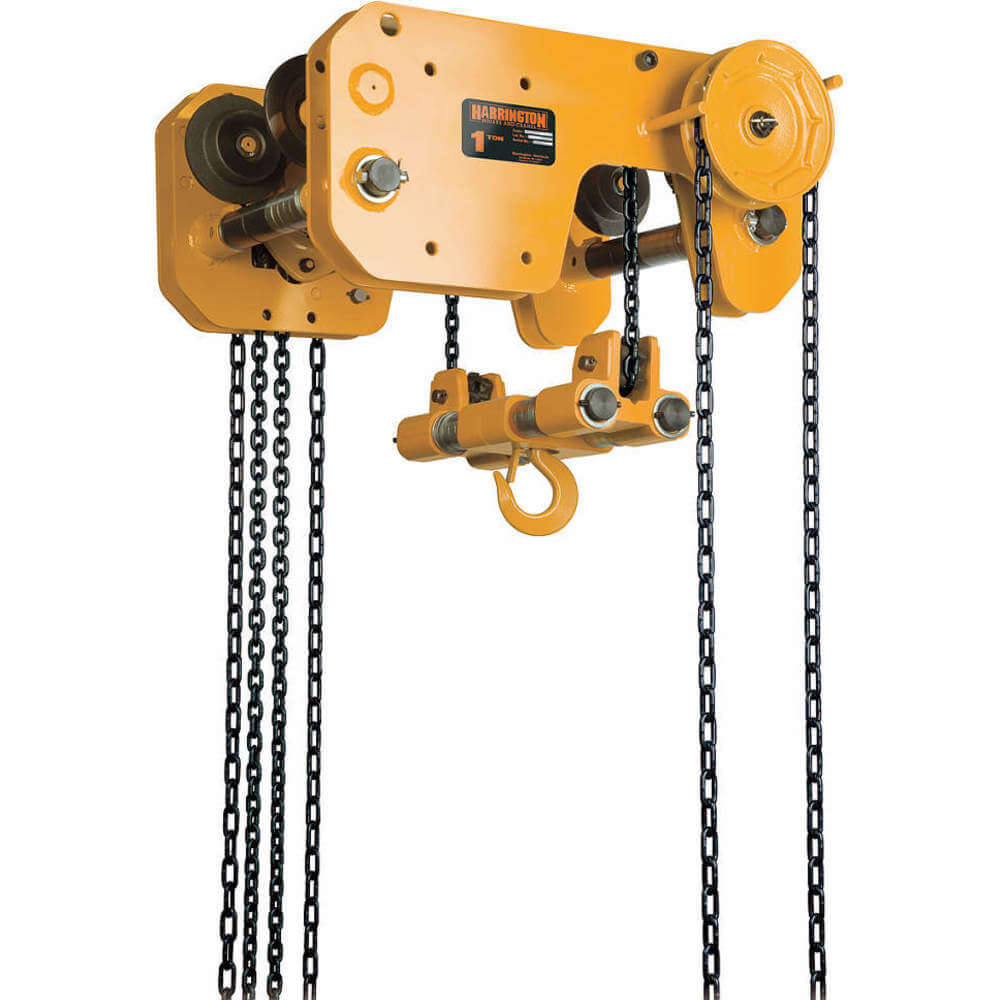

| SHB030-20 | 6000 lbs. | 63 lbs. | 6 1/2" | 1 11/16" | 25 3/4" | 13" | 12 7/8" | 6 1/2" | €15,605.43 | |
| SHB050-20 | 10000 lbs. | 75 lbs. | 7 11/16" | 1 13/16" | 27 1/2" | 15 1/2" | 15.437" | 7 3/4" | €25,525.59 | |
| SHB100-20 | 20000 lbs. | 81 lbs. | 10" | 2 13/32" | 28" | 16 1/2" | 16 1/2" | 10" | €29,390.55 |
