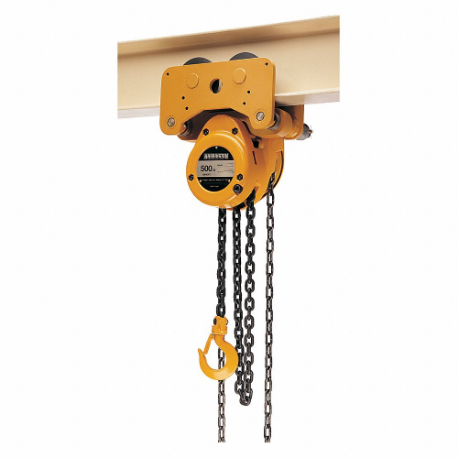

HARRINGTON NTH003-10 Chain Hoist, 500 lb Load, 60 lb Pull to Lift Rated Load, 12 1/2 Inch Housing Length
Get it by Tuesday, Aug 25
€1,885.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chain Hoist |
| Body Depth | 8 3/32" |
| Body Material | Die Cast Aluminum |
| Body Width | 11" |
| Brake Type | Weston Style |
| Chain Grade | Grade 100 |
| Chain Material | Manganese Alloy |
| Color | Yellow |
| Features | Integral Trolley |
| For Max. Beam Flange Height | Not Applicable |
| For Max. Beam Flange Width | 5 3/16" |
| For Min. Beam Flange Height | 3 1/2" |
| For Min. Beam Flange Width | 2 5/16" |
| Head Room | 12 1/2" |
| Hoist Overload Protection | No |
| Hook Opening | 1 7/64" |
| Housing Depth | 8" |
| Housing Length | 12 1/2" |
| Housing Width | 11" |
| Included Brake | Yes |
| Included Clutch | Clutch Not Included |
| Included Components | Safety Latch Hooks |
| Lever Length | Not Applicable |
| Lift Length | 10 ft. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1" |
| Lifting Hook Type | Hook With Safety Latch |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 12 1/2" |
| Min. Retracted Length | 12 1/2" |
| Mounting Type | Push Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection Included | No |
| Power Source | Manual |
| Pull To Lift Rated Load | 60 lbs. |
| Resistance Properties | Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant |
Shipping Info:
| Ship weight (kg) | 28.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Lifting Hook Opening Width | Overload Protection Included | Body Material | Body Width | Body Depth | Color | Lift Length | Lifting Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF005-10 | 1 3/32" | No | Die Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | 10 ft. | 1000 lbs. | €351.51 | |
| CF005-15 | - | - | - | - | - | - | 15 ft. | - | €461.72 | |
| CF005-20 | 1 3/32" | No | Die Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | - | 1000 lbs. | €565.99 | |
| CF010-10 | 1 3/32" | No | Die Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 10 ft. | 2000 lbs. | €384.35 | |
| CF010-15 | 1 3/32" | No | Die Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 15 ft. | 2000 lbs. | €514.49 | |
| CF010-20 | 1 3/32" | No | Die Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 20 ft. | 2000 lbs. | €576.14 | |
| CF015-10 | 1 5/16" | No | Die Cast Aluminum | 8" | 6" | Yellow | 10 ft. | 3000 lbs. | €599.32 |
