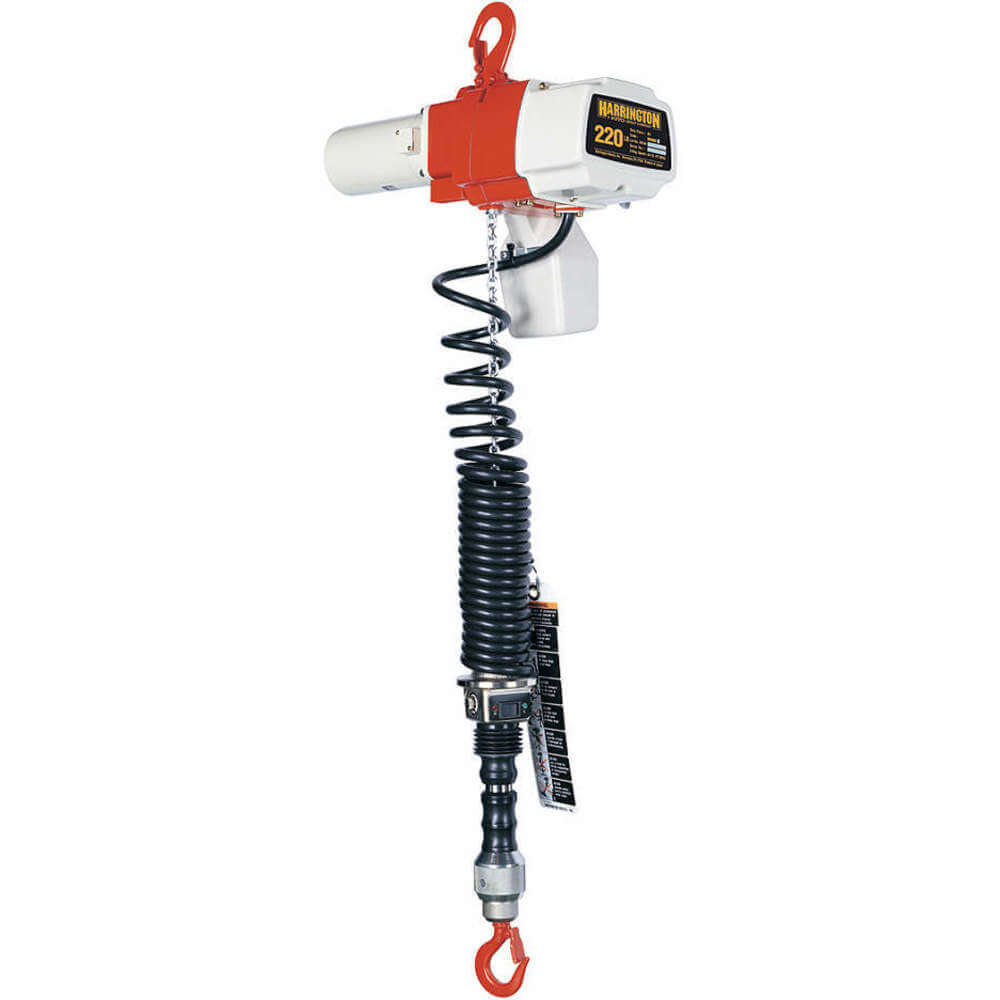

HARRINGTON ED400DA-6 Electric Chain Hoist 400 Lb 6 Feet 120
Get it by Tuesday, Dec 23
10.00% off
€6,511.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Amperage Draw | 6A |
| Amps @ Low Volts | 6A |
| Body Depth | 5" |
| Body Finish | Enamel |
| Body Length | 16 29/32" |
| Body Material | Aluminum |
| Body Width | 6 7/32" |
| Brake Type | Weston Style Load Brake |
| Capacity | 400 lbs. |
| Chain Finish | Enamel |
| Classification | H2 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | Orange, White |
| Configuration | Hook Mounted - No Trolley |
| Control | Manipulator |
| Control Cord | 6 ft. |
| Controller Cord Length | 6 ft. |
| Duty Classification | H2 - Light Duty |
| Features | Easy-Touch High/Low Speed Selection, Ergonomic In-Line Handgrip Control, High Speed Motor, Quick-Switch Removable Bottom Hook, Standard Double-Braking System |
| Finish | Electrostatic Enamel |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Minimum Beam Height | Not Applicable |
| Headroom | 37 3/16" |
| Headroom Size | 37 3/16" |
| Hoist Ip Rating | IP54 |
| Housing Depth | 5" |
| Housing Length | 16 29/32" |
| Housing Width | 6.203" |
| Includes | Safety Latch, Safety Standards |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift | 6 ft. |
| Lift Speed | 10-26 FPM |
| Lifting Capacity | 400 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 400 lbs. |
| Lubrication | Oil Bath |
| Manufacturers Warranty Length | 1 yr. |
| Max Current Draw | 6A |
| Maximum Lift Speed | 26 FPM |
| Maximum Lifting Length | 6 ft. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 37 13/64" |
| Min. Radius Curve | Not Applicable |
| Minimum Lift Speed | 10 FPM |
| Minimum Retracted Length | 37 3/16" |
| Motor Hp | 3/8 hp |
| Mount Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Voltage | 120V AC |
| Overload Protection Included | No |
| Pendant Ip Rating | IP65 |
| Phase | 1 |
| Reeving | 1 |
| Speed Programmability | Programmable By External Controls |
| Starts And Stops Per Hour | 120 |
| Thermal Protection | No |
| Tonnage - Lifting Capacity | 0.25 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 30.48 |
| HS code | 8425110000 |
