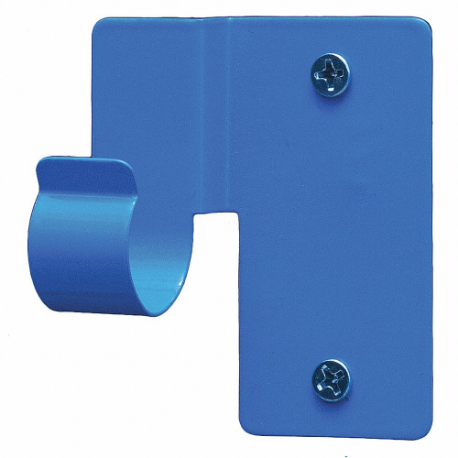

HAP SYSTEM PL-1111-3/4 Pipe Hanger, Powder Coated Steel, Front Mount, 3/4 Inch Size Copper Tube
Item: CR3PUGModel: PL-1111-3/4Cross Ref: 53MH46
7 In Stock
Ships within 2 days via
13.00% off
€5.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Hanger |
| Clamp Material | Steel |
| Clamp Material Finish | Powder Coated |
| Cushion Material | Not Applicable |
| Finish | Powder Coating |
| Fits Tube Size | 3/4" |
| For Copper Tube Size | 3/4" |
| For Insulation Thickness | 3/4" |
| For Location | Indoor, Outdoor |
| For Max. Outside Dia. | 3/4" |
| For Min. Outside Dia. | 1/2" |
| For Pipe Size | 1/2" |
| For Strut Channel Width | Not Applicable |
| Height | 7 1/4" |
| Included Condensate Drain | No |
| Included Mounting Hardware | No |
| Installed Height | Not Applicable |
| Load Capacity | 50 lbs. |
| Material | Powder Coated Steel |
| Max. Operating Temp. | 200°F |
| Metal Detectable | Yes |
| Mount Orientation | Front Mount |
| Mounting Hardware Included | No |
| Mounting Hole Dia. | 1/4" |
| Mounting Type | Surface |
| Overall Height | 7 1/4" |
| Overall Length | 10 3/4" |
| Overall Width | 3" |
| Surface Mount Orientation | Front Mount |
| Threaded Rod Size | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 7.62 |
| Country of Origin | CN |
