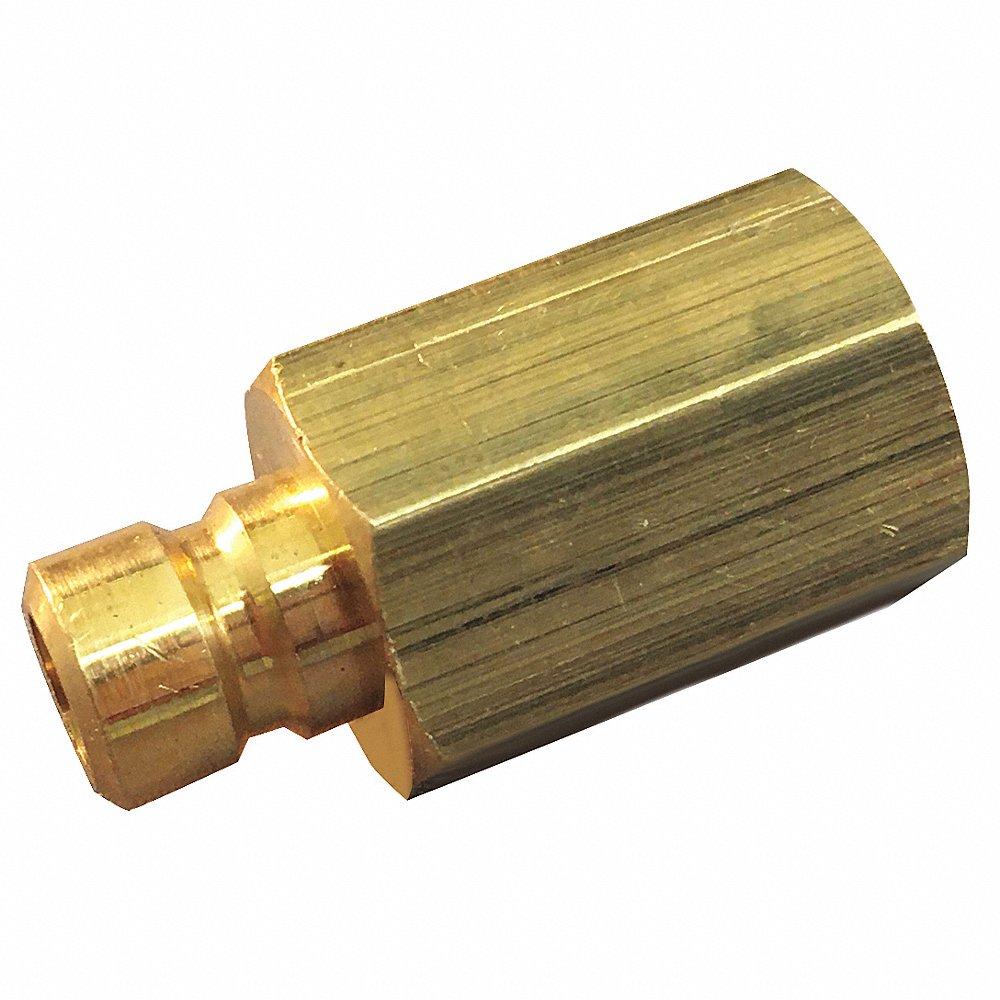

HANSEN FTP554F Hose Coupling, 1/2 Inch Size, Female, NPT, Brass
Item: CJ2NQEModel: FTP554FCross Ref: 55JV05
7 In Stock
Ships within 2 days via
10.00% off
€23.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Coupling |
| Bearing Material | Stainless Steel |
| Body Material | Brass |
| Connection Type | NPT |
| Coupling Component | Plug |
| Coupling Locking Type | Push-To-Connect |
| Coupling Size | 1/2" |
| Finish/coating | Plain |
| Fitting Type | FNPT |
| For Use With | Flo Temp Series Couplers |
| Hose Fitting Gender | Female |
| Includes Bearing | No |
| Includes Shut Off | No |
| Includes Valve | No |
| Max. Flow Rate | 49.21 LPM |
| Max. Working Pressure @ 70 F | 200 psi |
| Maximum Vacuum | 28 in. hg |
| Overall Length | 1 23/32" |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Series | FLO-TEMP Series |
| Sleeve Material | Brass |
| Thread Size | 1/2"-14 |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Material | Connection Type | Coupling Size | Valve Type | Sleeve Material | Bearing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
5610-6-6S | Steel | SAE | 3/8" | Poppet | Carbon Steel | Stainless Steel | €62.89 | |
 |
5608-10-10S | Steel | SAE | 5/8" | Poppet | Carbon Steel | Stainless Steel | €113.76 | |
|
5608-6-6S | Steel | SAE | 3/8" | Poppet | Carbon Steel | Stainless Steel | €135.20 | |
 |
FD96-1005-12-12 | Steel | SAE | 3/4" | Flush Face | Carbon Steel | Stainless Steel | €693.31 | |
 |
5100-S2-24B | Brass | NPT | 1 1/2" | Tubular | Carbon Steel | Stainless Steel | €1,152.75 | |
|
FD96-1002-16-16 | Steel | NPT | 1" | Flush Face | Carbon Steel | Stainless Steel | €799.01 | |
|
5608-8-10S | Steel | SAE | 5/8" | Poppet | Carbon Steel | Stainless Steel | €125.66 |
