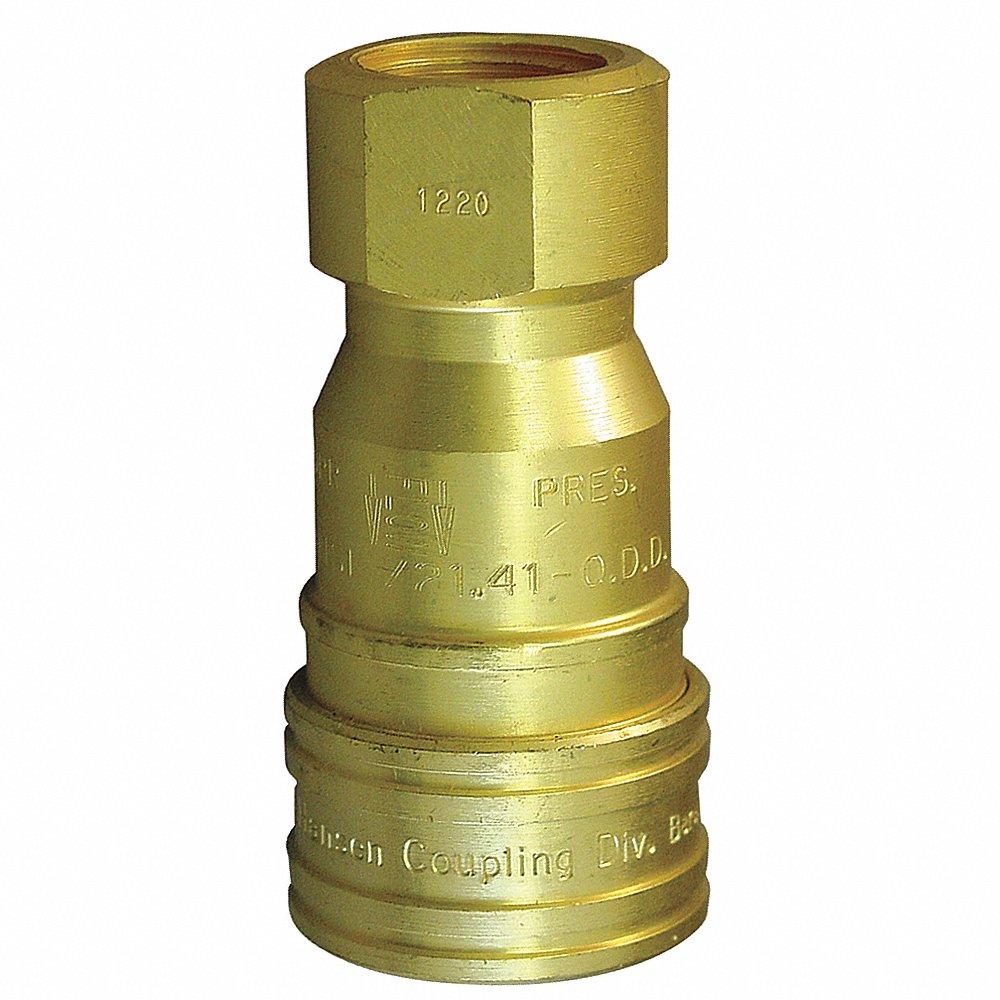

HANSEN 100006E Hose Coupling, 3/8 Inch Size, 3/8-18 Inch Thread Size, Brass
Item: CJ2NTXModel: 100006ECross Ref: 55JU93
7 In Stock
Ships within 2 days via
5.00% off
€98.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Coupling |
| Bearing Material | Stainless Steel |
| Body Material | Brass |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 3/8" |
| Finish, Coating | Plain |
| Fitting Type | FNPT |
| For Use With | Gasmate Series Couplers/Plugs |
| Hose Fitting Gender | Female |
| Included | Valve Actuator |
| Included Bearing | Yes |
| Included Shut Off | Yes |
| Included Valve | Yes |
| Max. Flow Rate | 183.97 LPM |
| Max. Vacuum Pressure | 28 in. hg |
| Max. Working Pressure @ 70f | 500 psi |
| Overall Length | 2 7/16" |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Series | GASMATE Series |
| Sleeve Material | Brass |
| Thread Size | 3/8"-18 |
| Valve Type | Poppet |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hose Fitting Gender | Coupling Component | Coupling Locking Type | For Use With | Sleeve Material | Fitting Type | Coupling Size | Max. Working Pressure @ 70f | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5610-6-6S | Female | Plug | Push To Connect | 5600 Series Coupler Plugs | Carbon Steel | FSAE | 3/8" | 4000 psi | €62.89 | |
 |
5608-10-10S | Female | Socket | Push To Connect | 5600 Series Coupler Body | Carbon Steel | FSAE | 5/8" | 4000 psi | €113.76 | |
|
5608-6-6S | Female | Socket | Push To Connect | 5600 Series Coupler Body | Carbon Steel | FSAE | 3/8" | 4000 psi | €135.20 | |
 |
FD96-1005-12-12 | Female | Plug | Push To Connect | Fd96 Series Couplers | Carbon Steel | FSAE | 3/4" | 7980 psi | €693.31 | |
 |
5100-S2-24B | Female | Plug | Thread-To-Connect | 5100 Series Couplers | Carbon Steel | FNPT | 1 1/2" | 2500 psi | €1,152.75 | |
|
FD96-1002-16-16 | Female | Plug | Push To Connect | Fd96 Series Couplers | Carbon Steel | FNPT | 1" | 7250 psi | €799.01 | |
|
5608-8-10S | Female | Socket | Push To Connect | 5600 Series Coupler Body | Carbon Steel | FSAE | 5/8" | 4000 psi | €125.66 |
