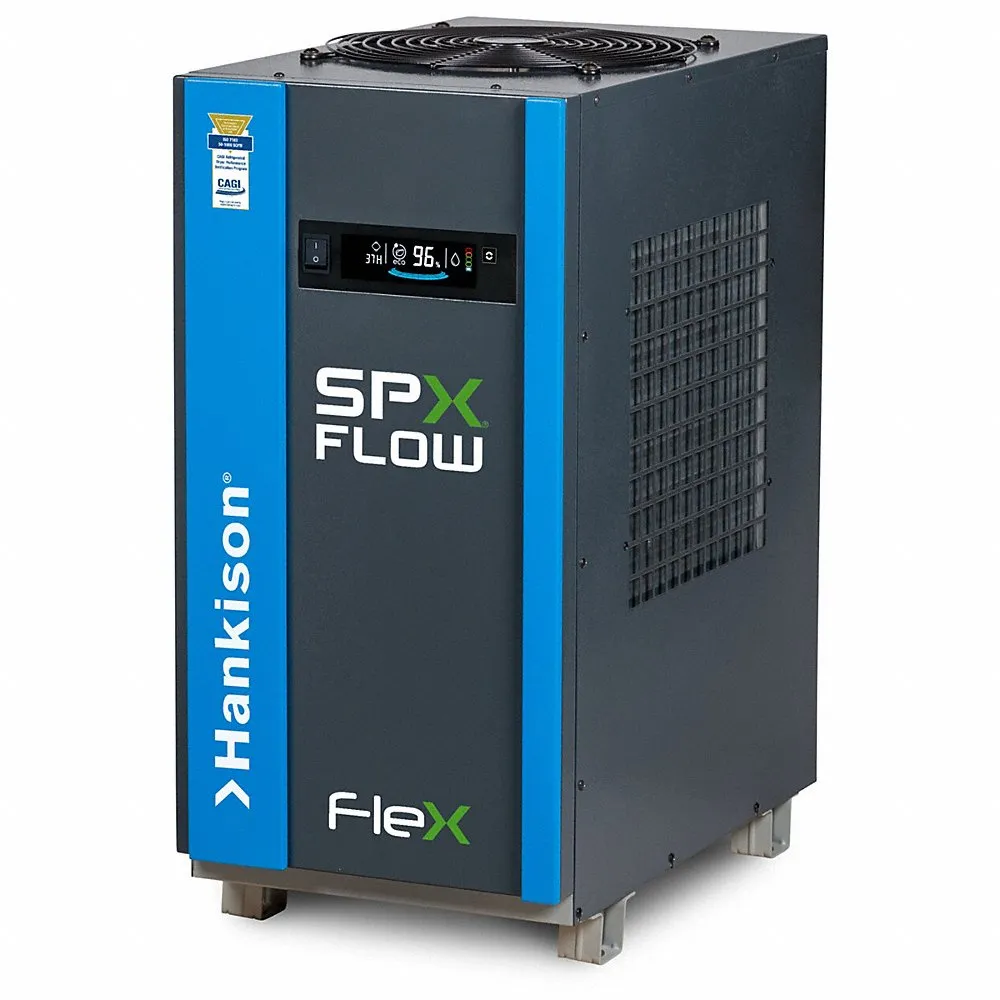

HANKISON FLX1.1 Cycling Refrigerated Compressed Air Dryer, Iso Class 5, 75 Scfm, 115VAC, 1 Inch Npt
Get it by Tuesday, Dec 23
10.00% off
€7,386.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compressed Air Dryer |
| Air Inlet Gender | Female |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1" |
| Air Outlet Type | NPT |
| Cycling Type | Non Cycling |
| Dew Point | 39°F |
| Drain Included | Yes |
| Features | Linear Load Matching Is Achieved From 0% Up To 100% Demand, Minimal Energy Savings Are Realized From 100% Down To 0% Inlet Air Load, Non-Cycling Dryers Operate With The Refrigeration Compressor Running Continuously Regardless Of Inlet Load Conditions, Provides Cost-Effective Energy Savings By Matching Electrical Power Consumed In Direct Proportion To Air Demand |
| Filter Included | No |
| Finish | Powder Coated |
| Frequency | 60 Hz |
| Heat Exchanger Material | Stainless Steel |
| Housing Color | Gray |
| Housing Material | Sheet Steel |
| Includes | Compressor On Indicator, Dew Point Status Indicator, Dryer On Indicator, Energy Savings % Indicator, On/Off Switch |
| Input Voltage | 115V AC |
| Iso Class | Class 5 |
| Max. Ambient Temp. | 100°F |
| Max. Flow | 75 SCFM |
| Maximum Inlet Temperature | 100°F |
| Mfr. Series | Flex Series |
| Overall Depth | 24" |
| Overall Height | 30" |
| Overall Width | 14" |
| Phase | Single |
| Power | 0.43 kW |
| Pressure Drop | 2.9 psi |
| Refrigerant | R-134A |
| Weight | 120 lbs. |
Shipping Info:
| Ship weight (kg) | 62.1 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 35.56 |
| Country of Origin | KR |
Product Variants
| Product | Model | Input Voltage | Air Inlet Size | Power | Iso Class | Max. Flow | Dew Point | Max. Inlet Temp. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HPRN100 | 115V AC | 1" | 0.65 kW | Class 5 | 100 SCFM | 38°F | 100°F | 24" | €6,097.15 | |
|
HPRN125 | 115V AC | 1" | 0.68 kW | - | 125 SCFM | 38°F | 100°F | 24" | €7,316.45 | |
 |
FLX1.2 | 115V AC | 1" | 0.62 kW | Class 5 | 100 CFM | - | - | 28" | €7,690.20 | |
 |
HPRN150-1 | 115V AC | 1" | 0.91 kW | Class 5 | 150 CFM | 38°F | 120°F | 24" | €7,510.65 | |
|
FLX1.5-1 | 115V AC | 1" | 1.04 kW | Class 5 | 150 CFM | - | - | 30" | €9,905.74 | |
 |
HPRN200-4 | 460V AC | 1" | 1.81 kW | Class 5 | 200 CFM | 38°F | 120°F | 30" | €9,564.09 | |
|
FLX2.1-4 | 460V AC | 2" | 1.26 kW | Class 5 | 200 CFM | 42°F | 100°F | 30" | €12,297.03 |
