HAMILTON S-MDK-124HFSB Heat-Resistant Standard Plate Caster, 12 Inch Dia, 15 1/2 Inch Height, D
Get it by Monday, Dec 22
10.00% off
€2,889.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Abrasion Resistance | Very High |
| Application | Aerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | High Heat Stainless Steel Precision Shielded Ball |
| Bolt Hole 1 | 7" x 7" |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Black |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Rig Type | Kingpinless |
| Caster Sub-type | Swivel |
| Chemical Resistant | Medium |
| Core Color | Silver |
| Cushioning (resilience) | Low |
| Esd Conductive | Yes |
| Features | Durable, High Heat, Quiet Operation, Reliable |
| For Axle Dia. | 1 1/4" |
| For Surface Type | Concrete |
| Frame Color | Black |
| Frame Construction | Forged |
| Frame Finish | Enamel |
| High Temp. Range (f) | 750°F |
| Impact Resistance | High |
| Includes Fasteners | No |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Capacity | 6250 lbs. |
| Load Capacity @ 3 Mph | 6250 lbs. |
| Load Rating | 6250 lbs. |
| Low Temp. Range (f) | -40°F |
| Moisture Resistance | High |
| Mounting Bolt | 5/8" |
| Mounting Bolt Dia. | 5/8" |
| Mounting Height | 15 1/2" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Length | 8 1/2" |
| Mounting Plate Size | 8 1/2" x 8 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 8 1/2" X 8 1/2" ( D ) |
| Mounting Plate Thickness | 5/8" |
| Mounting Plate Width | 8 1/2" |
| Non-marking | No |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +200°F |
| Outside Bolt Hole Spacing | 7" x 7" |
| Overall Wheel Width | 4" |
| Relative Capacity | Very High |
| Relative Cost | High |
| Replacement Wheel | W-1240-HFSB-1-1/4 |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingpinless |
| Swivel Lead | 3 1/4" |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 3 1/4" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 9 1/2" |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Material | Stainless Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Color/finish | High Heat Clear |
| Wheel Core Material | Steel |
| Wheel Core Type | Solid |
| Wheel Diameter | 12" |
| Wheel Material @ Tread | Metal |
| Wheel Type | Inferno Forged Stl |
| Wheel Width | 4" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 179 BHN |
| Wheel/tread Hardness Rating | Extra Hard |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Mounting Plate Size | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-SECK-63HFSB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2400 lbs. | 8" | 5 1/4" x 7 1/4" | 3" | €1,372.87 | |
 |

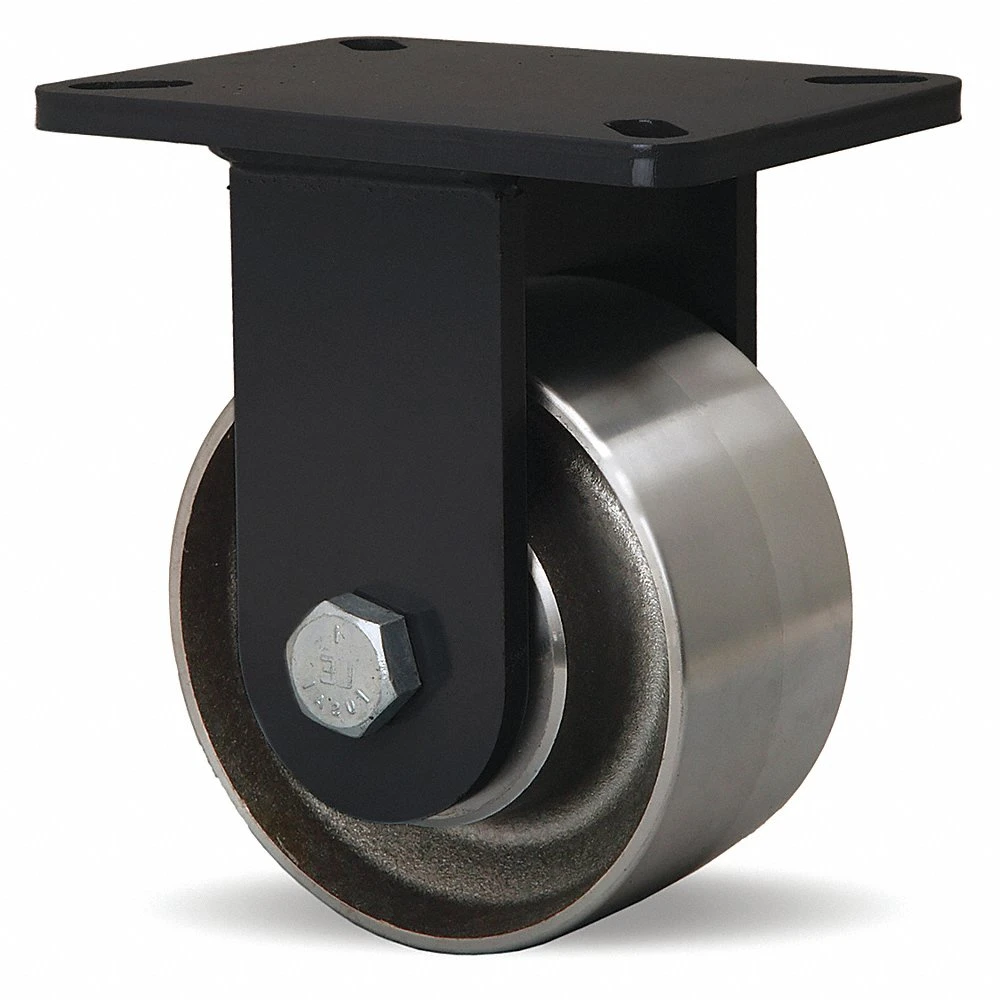

R-SECK-63HFSB | Rigid | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2400 lbs. | 8" | 5 1/4" x 7 1/4" | 3" | €872.05 | |
 |

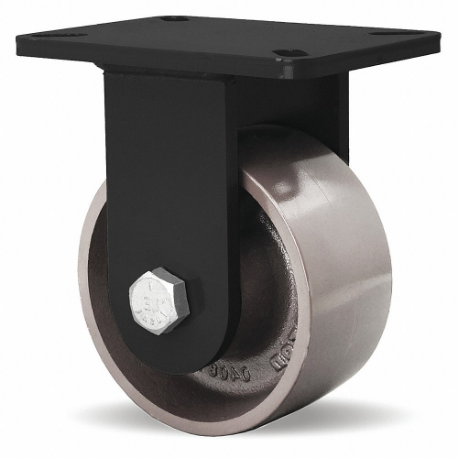

R-SECK-63HMB | Rigid | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 1000 lbs. | 8" | 5 1/4" x 7 1/4" | 3" | €570.54 | |
 |

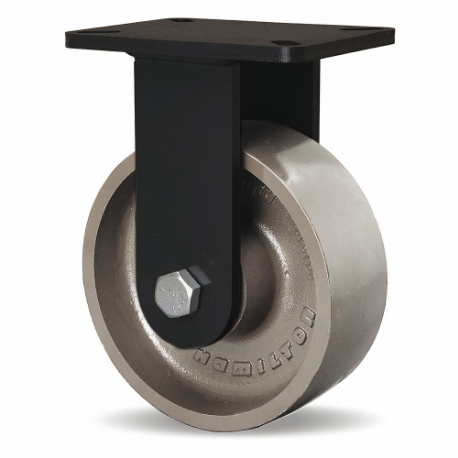

R-SECK-83HMB | Rigid | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 1040 lbs. | 10 1/2" | 5 1/4" x 7 1/4" | 3" | €616.59 | |
 |

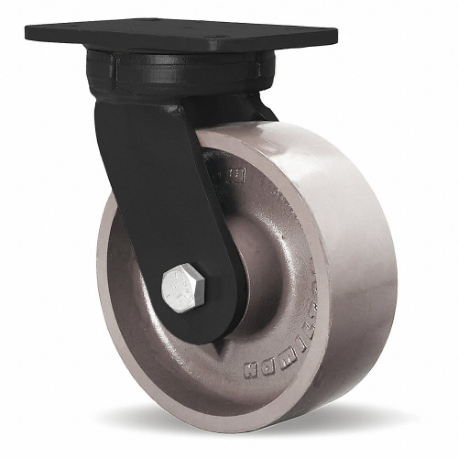

S-SECK-83HMB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 1040 lbs. | 10 1/2" | 5 1/4" x 7 1/4" | 3" | €1,048.42 | |
 |

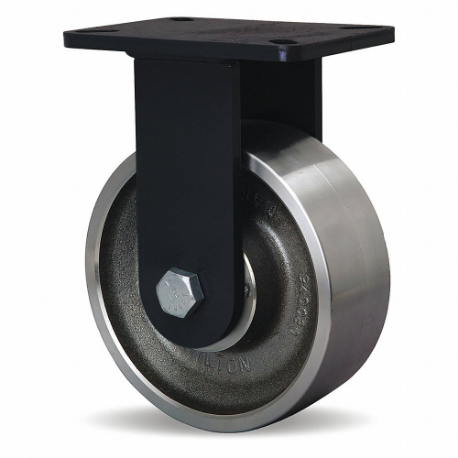

R-SECK-83HFSB | Rigid | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2400 lbs. | 10 1/2" | 5 1/4" x 7 1/4" | 3" | €870.40 | |
 |
S-SECK-83HFSB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2400 lbs. | 10 1/2" | 5 1/4" x 7 1/4" | 3" | €1,359.77 |
