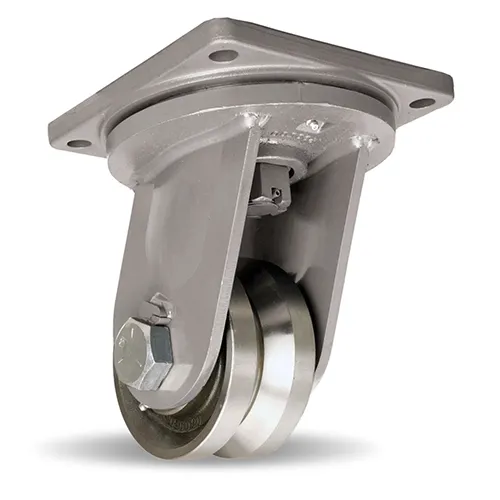

HAMILTON S-MD-63FVT Maxi-Duty Swivel Caster, 6 X 3 Inch Size, Forged Steel Wheel
Get it by Tuesday, Aug 18
€801.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Caster Plate Hole Pattern | D |
| Caster Temp. Range | -30°F to +320°F |
| Caster Wheel Bearings | Tapered |
| Caster Wheel Shape | V Groove |
| Core Color | Silver |
| Inside Bolt Hole Spacing | 7 x 7 |
| Load Rating | 10000 lbs. |
| Mounting Bolt Dia. | 5/8" |
| Mounting Height | 10 |
| No. Of Mounting Holes | 4 |
| No. Of Wheel | 1 |
| Plate Size | 8 1/2" x 8 1/2" |
| Replacement Wheel | W-630-FVT-1-1/4 |
| Wheel Dia. | 6 |
| Wheel Width | 3 |
| Wheel/tread Color | Clearcoat |
| Wheel/tread Hardness Rating | Extra Hard |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Mounting Height | Wheel Dia. | Load Rating | Outside Bolt Hole Spacing | Wheel Width | Caster Frame Material | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-524-V | - | - | - | - | - | - | - | Straight Roller | €80.13 | |
|
S-525-V | - | - | - | - | - | - | - | - | €88.08 | |
 |
S-526-V | - | - | - | - | - | - | - | - | €98.27 | |
 |
S-CH-10VH | 3 3/8" x 5 1/4" | 12.5 | 10 | 2500 | 4 1/8" x 6 1/8" | 2.5 | Forged Steel | Straight Roller | €462.04 | |
|
S-CH-10VT | 3 3/8" x 5 1/4" | 12.5 | 10 | 2500 | 4 1/8" x 6 1/8" | 2.5 | Forged Steel | - | €509.08 | |
|
S-CH-13FVH | 3 3/8" x 5 1/4" | 12.5 | 10 | 4000 | 4 1/8" x 6 1/8" | 3 | - | - | €492.41 | |
|
S-CH-13FVT | 3 3/8" x 5 1/4" | 12.5 | 10 | 4000 | 4 1/8" x 6 1/8" | 3 | - | - | €550.64 |
