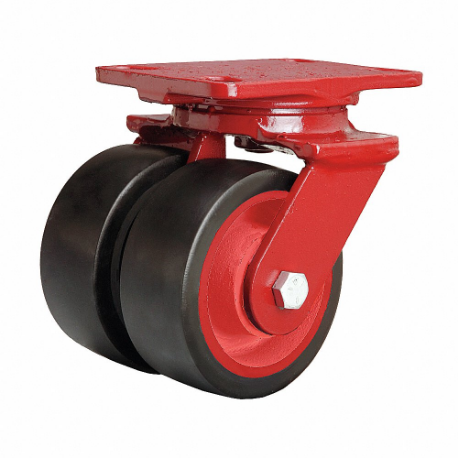

HAMILTON S-HS2-4R-4SL-2FB Standard Plate Caster, 4 Inch Dia, 5 5/8 Inch Height
Get it by Thursday, Aug 27
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€633.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Red |
| Frame Finish | Enamel |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 600 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| No. Of Mounting Holes | 4 |
| No. Of Positions | 4 |
| No. Of Wheels | 2 |
| Non-marking | No |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Swivel Construction | Kingspin |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Rubber |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 4" |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 70 Shore A , Soft |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wheel Dia. | Mounting Bolt Dia. | Wheel Width | Outside Bolt Hole Spacing | Inside Bolt Hole Spacing | Wheel Bearing Type | Mounting Height | No. Of Wheels | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDK-104HFSB-H4SL-HCB | 10" | 5/8" | 4" | 7" x 7" | 7" x 7" | Precision Ball | 13" | 1 | €3,001.60 | |
 |
S-MDK-124HFSB-H4SL-HCB | 12" | 5/8" | 4" | 7" x 7" | 7" x 7" | Precision Ball | 15 1/2" | 1 | €2,918.03 | |
 |
S-FMK-63HFSB-H4SL-FB | 6" | 1/2" | 3" | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | Precision Ball | 7 1/2" | 1 | €1,291.77 | |
 |
S-FMK-63HMB-H4SL-FB | 6" | 1/2" | 3" | 3 3/8" x 5 1/4" | 2.438" x 4.938" | Precision Ball | 7 1/2" | 1 | €939.61 | |
 |
S-FMK-83HMB-H4SL-FB | 8" | 1/2" | 3" | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | Precision Ball | 10 1/4" | 1 | €1,220.20 | |
 |
S-FMK-83HFSB-H4SL-FB | 8" | 1/2" | 3" | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | Precision Ball | 10 1/4" | 1 | €1,524.18 | |
 |
S-MDK-83HFSB-H4SL-HCB | 8" | 5/8" | 3" | 7" x 7" | 7" x 7" | Precision Ball | 11" | 1 | €5,215.95 |
