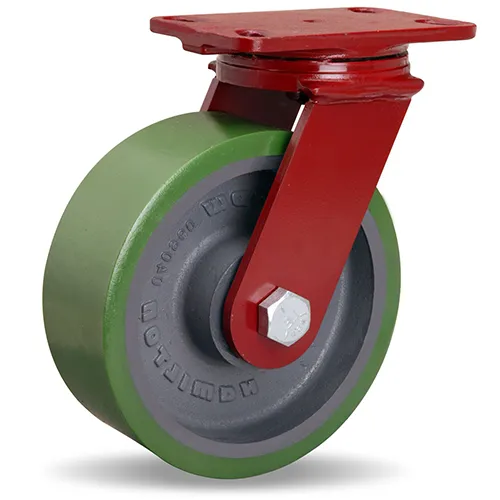

HAMILTON S-FM-83DT Wheel, Swivel Caster, 8 X 3 Inch Size, Polyurethane on Cast Iron Wheel
Get it by Tuesday, Sep 1
€358.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Application | High Temperature 200°F |
| Bearing Type | Tapered Roller |
| Caster Core Material | Cast Iron |
| Caster Frame Material | Forged Steel |
| Caster Plate Hole Pattern | A |
| Caster Temp. Range | -50°F to +200°F |
| Caster Wheel Bearings | Tapered |
| Caster Wheel Shape | Standard |
| Caster Wheel/tread Material | Polyurethane |
| Core Color | Gray |
| Finish, Coating | Enamel |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Capacity | 2200 lbs. |
| Load Rating | 2200 |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10.25 |
| No. Of Mounting Holes | 4 |
| No. Of Wheel | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 10 1/8" |
| Plate Size | 4 1/2" x 6 1/2" |
| Replacement Wheel | W-830-DT-3/4 |
| Wheel Dia. | 8 |
| Wheel Material | Polyurethane On Cast Iron |
| Wheel Width | 3 |
| Wheel/tread Color | Green |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 26.04 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Wheel Bearing Type | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-FM-6MH | 6" | 2 1/2" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2200 lbs. | 7 1/4" | Roller | 5" x 7" | €209.11 | |
 |
S-FM-10RH | 10" | 2 1/2" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 790 lbs. | 11 1/2" | Roller | 4 1/2" x 6 1/2" | €371.95 | |
 |
S-FM-6MH | 6" | 2 1/2" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2200 lbs. | 7 1/2" | Roller | 4 1/2" x 6 1/2" | €303.28 | |
 |

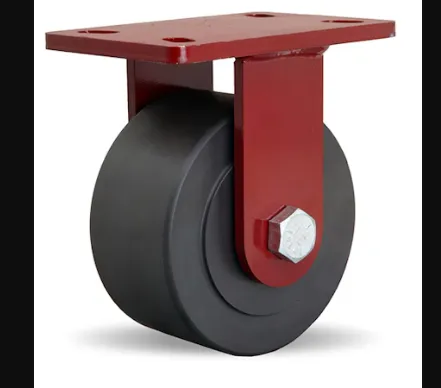

R-FM-63NYB | 6 | 3 | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3200 | - | - | - | €439.17 | |
 |
S-FM-63DB | 6" | 3" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2200 lbs. | 7 1/2" | Precision Ball | 4 1/2" x 6 1/2" | €406.09 | |
 |
R-FM-63EGB | 6" | 3" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2450 lbs. | 7 1/4" | Precision Ball | 5" x 7" | €387.63 | |
 |
R-FM-63DB | 6" | 3" | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2200 lbs. | 7 1/2" | Precision Ball | 4 1/2" x 6 1/2" | €320.40 |
