HAMILTON S-FM-6DB Swivel Plate Caster 1600 Lb 6 Inch Diameter
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€330.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1600 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 7 1/2" |
| Plate Size | 4 1/2" x 6 1/2" |
| Plate Thickness | 3/8" |
| Plate Type | A |
| Raceway Type | Precision Ball |
| Replacement Wheel | 35W177 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Green |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Material | Polyurethane |
| Wheel Width | 2 1/2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 8.44 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 13.97 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Width | Wheel/tread Material | Wheel Bearing Type | Load Rating | Mounting Height | Caster Load Rating Range | Wheel Dia. | Core Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-FM-6RB | 2 1/2" | Rubber | Precision Ball | 540 lbs. | 7 1/2" | 300 lbs. to 999 lbs. | 6" | Red | €314.77 | |
 |
S-FM-8DB | 2 1/2" | Polyurethane | Precision Ball | 2000 lbs. | 10 1/4" | 1000 lbs. to 2999 lbs. | - | Gray | €411.04 | |
 |
S-FM-8RB | 2 1/2" | Rubber | Precision Ball | 670 lbs. | 10 1/4" | 300 lbs. to 999 lbs. | - | Red | €327.69 | |
 |
S-FM-10DB | 2 1/2" | Polyurethane | Precision Ball | 2200 lbs. | 11 1/2" | 1000 lbs. to 2999 lbs. | 10" | Gray | €436.50 | |
 |
S-FM-10RB | 2 1/2" | Rubber | Precision Ball | 790 lbs. | 11 1/2" | - | 10" | Red | €334.28 | |
 |

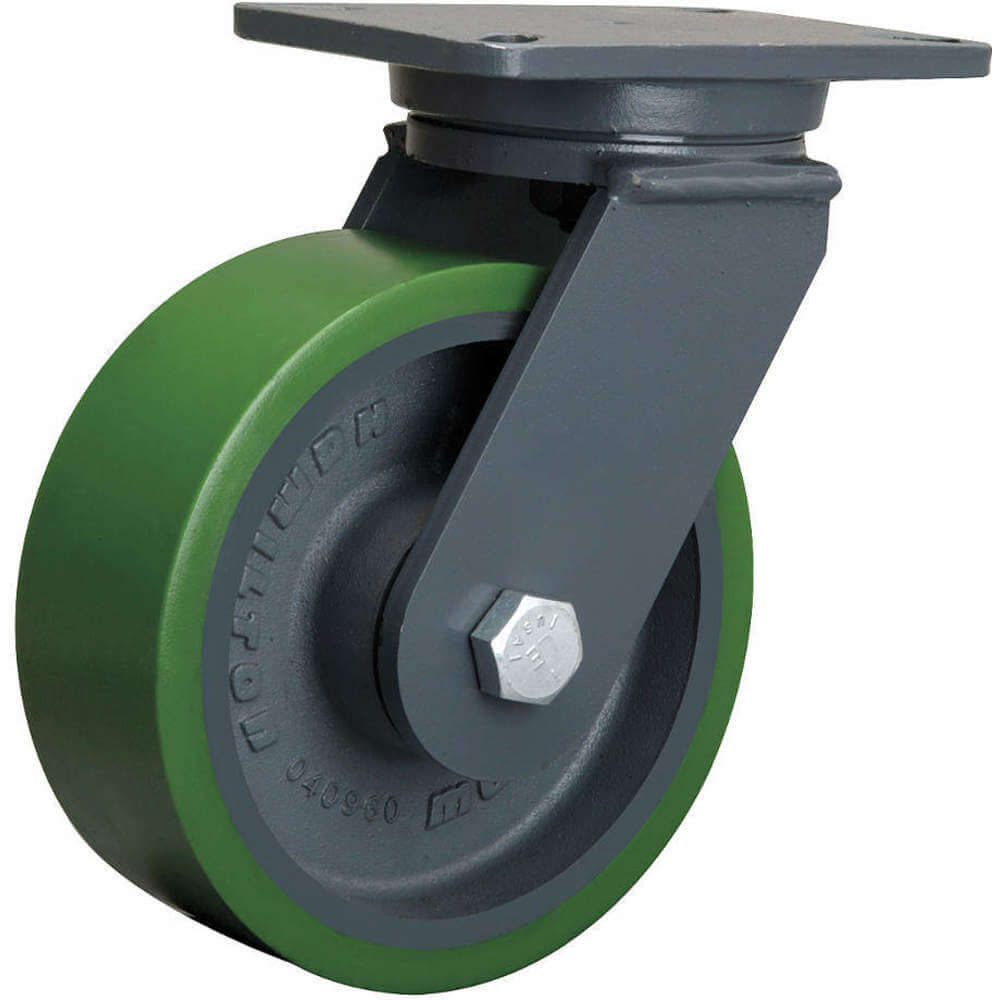

S-FM-10DH | 3" | Polyurethane | Roller | 2200 lbs. | 11 1/2" | 1000 lbs. to 2999 lbs. | - | Gray | €449.82 |
