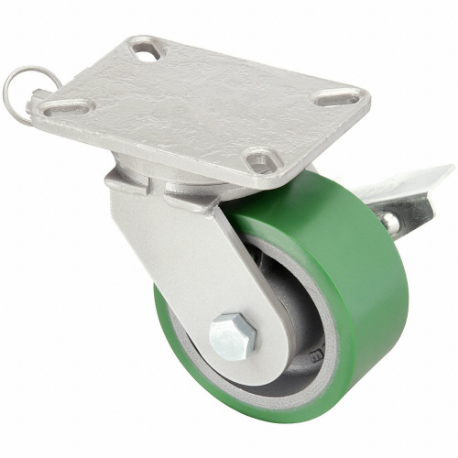

HAMILTON S-CH-63DB-4SL-FB Standard Plate Caster, 6 Inch Dia, 8 Inch Height
Get it by Monday, Dec 22
10.00% off
€444.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Automotive, Industrial |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Frame Finish | Enamel |
| Includes | Brake, Swivel Lock |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 900 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Replacement Wheel | W-630-DB-3/4 |
| Standards | Icwm |
| Swivel Construction | Kingspin |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wheel Width | Wheel Bearing Type | Non-marking | Brake Type | Load Rating | Wheel Dia. | Outside Bolt Hole Spacing | Mounting Bolt Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDK-104HFSB-H4SL-HCB | 4" | Precision Ball | No | Face Contact Brake | 5750 lbs. | - | 7" x 7" | 5/8" | €3,501.37 | |
 |
S-MDK-124HFSB-H4SL-HCB | 4" | Precision Ball | No | Face Contact Brake | 6250 lbs. | - | 7" x 7" | 5/8" | €3,556.99 | |
 |
S-FMK-63HFSB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 2400 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,527.65 | |
 |
S-FMK-63HMB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1000 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,159.74 | |
 |
S-FMK-83HMB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1040 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,381.59 | |
 |
S-FMK-83HFSB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1280 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,744.20 | |
 |
S-MDK-83HFSB-H4SL-HCB | 3" | Precision Ball | No | Face Contact Brake | 5500 lbs. | - | 7" x 7" | 5/8" | €6,358.10 |
