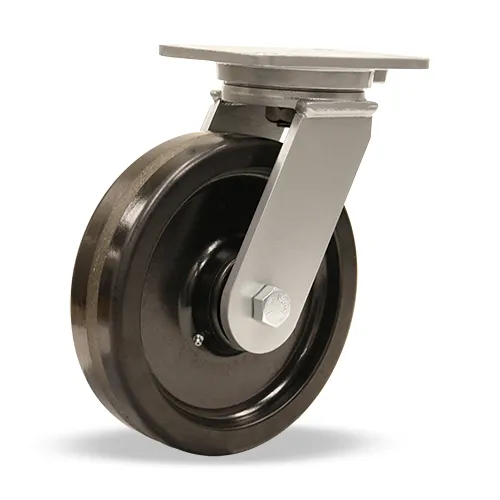

HAMILTON S-CH-13PT Swivel Caster, 10 X 3 Inch Size, Plastex Phenolic Wheel
Get it by Monday, Aug 24
€341.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | Medium |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Poor |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 300°F |
| Impact Resistance | Medium |
| Load Capacity | 2900 lbs. |
| Load Capacity @ 3 Mph | 2900 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Low |
| Mounting Bolt | 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Width | 5 1/4" |
| Overall Height | 12 1/2" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-1030-PT-3/4 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 10" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Wheel Width | Caster Brake Type | Wheel Bearing Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-CH-13DB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 3000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €337.61 | |
 |
R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €438.19 | |
 |
R-CH-13PH | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2900 lbs. | - | No Brake Included | Roller | 12 1/2" | €212.03 | |
 |
R-CH-63DB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2200 lbs. | - | No Brake Included | Precision Ball | 8" | €278.72 | |
 |
R-CH-63FSB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 8" | €324.85 | |
 |
R-CH-63PH | 6" | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2000 lbs. | - | No Brake | Roller | 8" | €151.78 | |
 |
R-CH-83DB | 8" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2500 lbs. | - | No Brake Included | Precision Ball | 10 1/2" | €311.13 |
