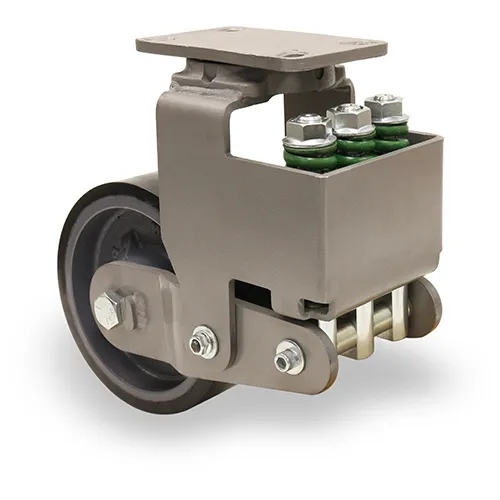

HAMILTON S-AEZFFM-13DB70 Forge Master Swivel Caster, 10 X 3 Inch Size, Cast Iron Wheel
Get it by Monday, Aug 24
€1,111.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 2 7/16" x 4 15/16" |
| Bolt Hole 2 | 3 3/8" x 5 1/4" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Kingpinless |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Low Temp. Range (f) | -50°F |
| Max. Capacity 1 | 2775 lbs. |
| Min. Capacity 1 | 200 lbs. |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Plate | 4 1/2" x 6 1/2" |
| Mounting Plate Length | 6 1/2" |
| Mounting Plate Width | 4 1/2" |
| Overall Height | 14" |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-1030-DB70-3/4 |
| Swivel Offset | 4.5625" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 10" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast Xc |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Bearing Type | Overall Height | Wheel Core Material | Replacement Wheel | Wheel Type | High Temp. Range (f) | Relative Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-AEZFFM-104SYB | 10 | - | - | - | - | - | - | - | €1,485.43 | |
 |
R-AEZFFM-10SPRT | 10 | - | - | - | - | - | - | - | €1,243.58 | |
|
R-AEZFFM-124SYB | 12 | - | - | - | - | - | - | - | €1,624.80 | |
 |
R-AEZFFM-12DB | 12 | - | - | - | - | - | - | - | €1,180.58 | |
 |
R-AEZFFM-12DB70 | 12 | Sealed Precision Ball | 15" | - | - | - | - | - | €1,217.49 | |
 |
R-AEZFFM-12EGB | 12 | - | - | - | - | - | - | - | €1,216.22 | |
 |
R-AEZFFM-12GB95 | 12 | - | - | - | - | - | - | - | €1,255.68 |
