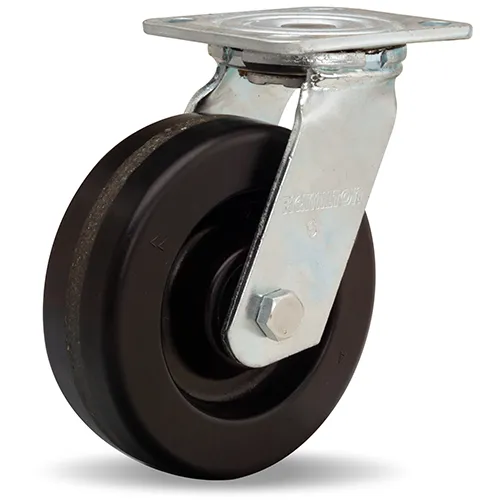

HAMILTON S-526-P Standard Duty Swivel Caster, 6 X 2 Inch Size, 3/4 Inch Straight Roller Bearing
Get it by Monday, Dec 22
€56.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | Medium |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 2 5/8" x 3 5/8" |
| Bolt Hole 2 | 3" x 3" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Poor |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 300°F |
| Impact Resistance | Medium |
| Load Capacity | 1200 lbs. |
| Load Capacity @ 3 Mph | 1200 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Low |
| Mounting Bolt | 3/8" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Length | 4 1/2" |
| Mounting Plate Width | 4" |
| Overall Height | 7 1/2" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-620-P-3/4 |
| Swivel Offset | 1.68" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 6" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Core Material | Overall Height | Bearing Type | Wheel Type | Load Capacity | Mounting Plate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
S-523-D | 3 1/4" | Cast Iron | 5 1/4" | Straight Roller | Duralast | 575 lbs. | 4" x 4 1/2" | €84.07 | |
 |
S-523-P | 3 1/4" | Phenolic | 5 1/4" | Straight Roller | Plastex | 700 lbs. | 4" x 4 1/2" | €54.16 | |
 |
S-524-AZ | 4" | Polyolefin | 5 5/8" | Delrin | Aqualite | 550 lbs. | 4" x 4 1/2" | €49.71 | |
 |
S-524-DB | 4" | Cast Iron | 5 5/8" | Precision Sealed Ball | Duralast | 750 lbs. | 4" x 4 1/2" | €95.97 | |
 |
S-524-EMB | 4" | Aluminum | 5 5/8" | Precision Sealed Ball | Ergo-Tech | 450 lbs. | 4" x 4 1/2" | €77.01 | |
 |
S-524-MB | 4" | Cast Iron | 5 5/8" | Precision Sealed Ball | Metal | 1000 lbs. | 4" x 4 1/2" | €70.78 | |
 |
S-524-P | 4" | Phenolic | 5 5/8" | Straight Roller | Plastex | 800 lbs. | 4" x 4 1/2" | €54.09 |
