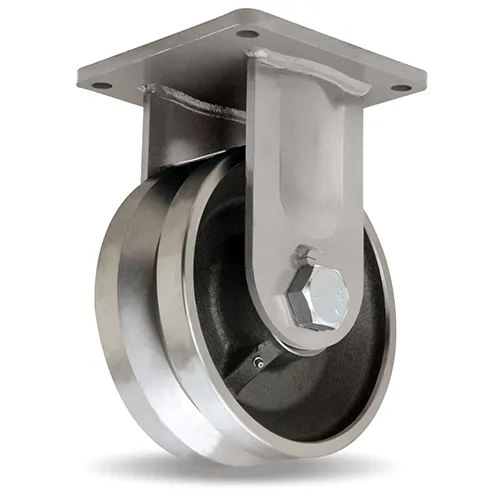

HAMILTON R-MD-104FVH Rigid Caster, 10 X 4 Inch Size, Forged Steel Wheel
Get it by Tuesday, Dec 23
€607.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Caster |
| Abrasion Resistance | High |
| Bearing Type | Straight Roller |
| Bolt Holes | 7" x 7" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Weldment |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Low |
| Face K | 4" |
| High Temp. Range (f) | 320°F |
| Impact Resistance | High |
| Load Capacity | 7500 lbs. |
| Load Capacity @ 3 Mph | 7500 lbs. |
| Low Temp. Range (f) | -30°F |
| Moisture Resistance | High |
| Mounting Bolt | 5/8" |
| Mounting Plate | 8 1/2" x 8 1/2" |
| Overall Height | 13" |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-1040-FVH-1-1/2 |
| Swivel Or Rigid Caster | Rigid |
| Wheel Color/finish | Clearcoat |
| Wheel Core Material | Steel |
| Wheel Dia. | 10" |
| Wheel Face | 4" |
| Wheel Material @ Tread | Metal |
| Wheel Type | V-Grooved |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Core Material | Bearing Type | Mounting Plate | Load Capacity | Overall Height | Wheel Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

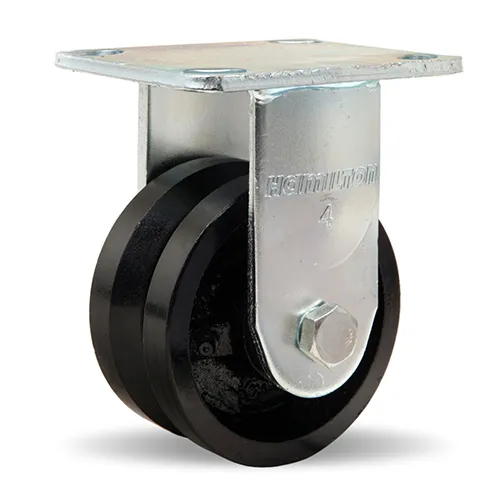

R-524-V | 4" | Cast Iron | Straight Roller | 4" x 4 1/2" | 800 lbs. | 5 5/8" | V-Grooved | €73.19 | |
 |

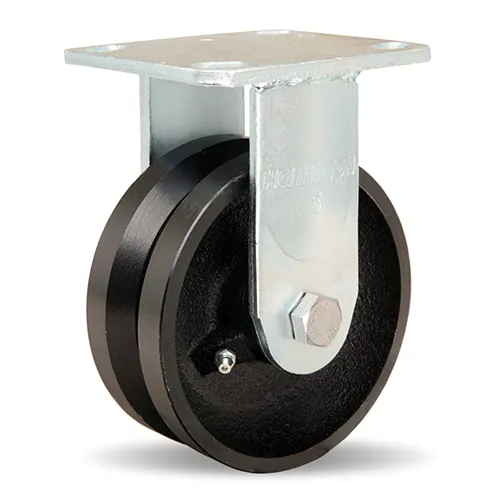

R-525-V | 5" | Cast Iron | Straight Roller | 4" x 4 1/2" | 800 lbs. | 6 1/2" | V-Grooved | €81.14 | |
 |

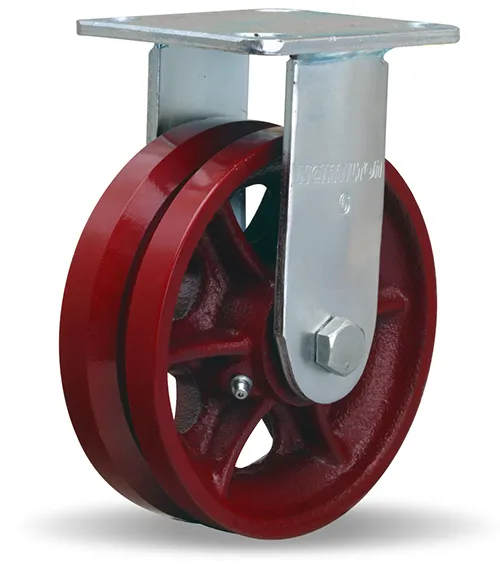

R-526-V | 6" | Cast Iron | Straight Roller | 4" x 4 1/2" | 900 lbs. | 7 1/2" | V-Grooved | €91.64 | |
 |
R-CH-10VH | 10" | Cast Iron | Straight Roller | 5 1/4" x 7 1/4" | 3000 lbs. | 12 1/2" | V-Grooved | €370.27 | |
|
R-CH-10VT | 10" | Cast Iron | Tapered Roller | 5 1/4" x 7 1/4" | 3000 lbs. | 12 1/2" | V-Grooved | €412.28 | |
 |
R-CH-13FVH | 10" | Steel | Straight Roller | 5 1/4" x 7 1/4" | 4000 lbs. | 12 1/2" | V-Grooved | €400.38 | |
 |

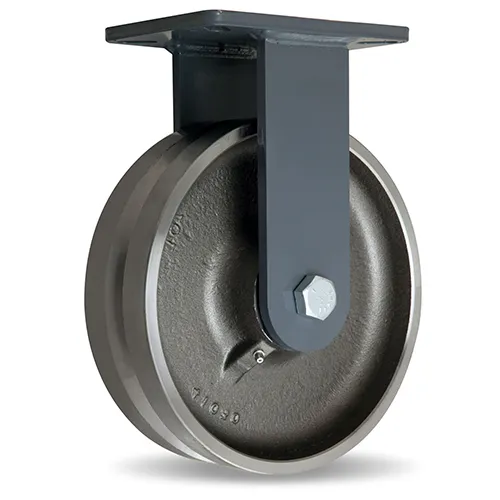

R-CH-13FVT | 10" | Steel | Tapered Roller | 5 1/4" x 7 1/4" | 4000 lbs. | 12 1/2" | V-Grooved | €453.39 |
