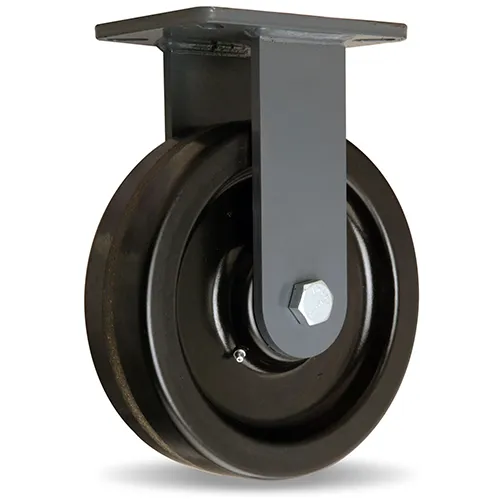

HAMILTON R-CH-13PT Rigid Caster, 10 X 3 Inch Size, Plastex Phenolic Wheel
Get it by Tuesday, Aug 25
€245.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Caster |
| Application | High Temperature 300°F, CNC Machined 3 3/8" Diameter Raceway |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Finish, Coating | Enamel |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Capacity | 2900 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| No. Of Mounting Holes | 4 |
| No. Of Wheel | 1 |
| Non - Marking | Yes |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Swivel Construction | Kingpin |
| Wheel Color | Black |
| Wheel Dia. | 10" |
| Wheel Width | 3" |
| Wheel/tread Hardness | 90 Shore D |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Wheel Width | Caster Brake Type | Wheel Bearing Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-CH-13DB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 3000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €337.61 | |
 |
R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €438.19 | |
 |
R-CH-13PH | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2900 lbs. | - | No Brake Included | Roller | 12 1/2" | €212.03 | |
 |
R-CH-63DB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2200 lbs. | - | No Brake Included | Precision Ball | 8" | €278.72 | |
 |
R-CH-63FSB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 8" | €324.85 | |
 |
R-CH-63PH | 6" | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2000 lbs. | - | No Brake | Roller | 8" | €151.78 | |
 |
R-CH-83DB | 8" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2500 lbs. | - | No Brake Included | Precision Ball | 10 1/2" | €311.13 |
