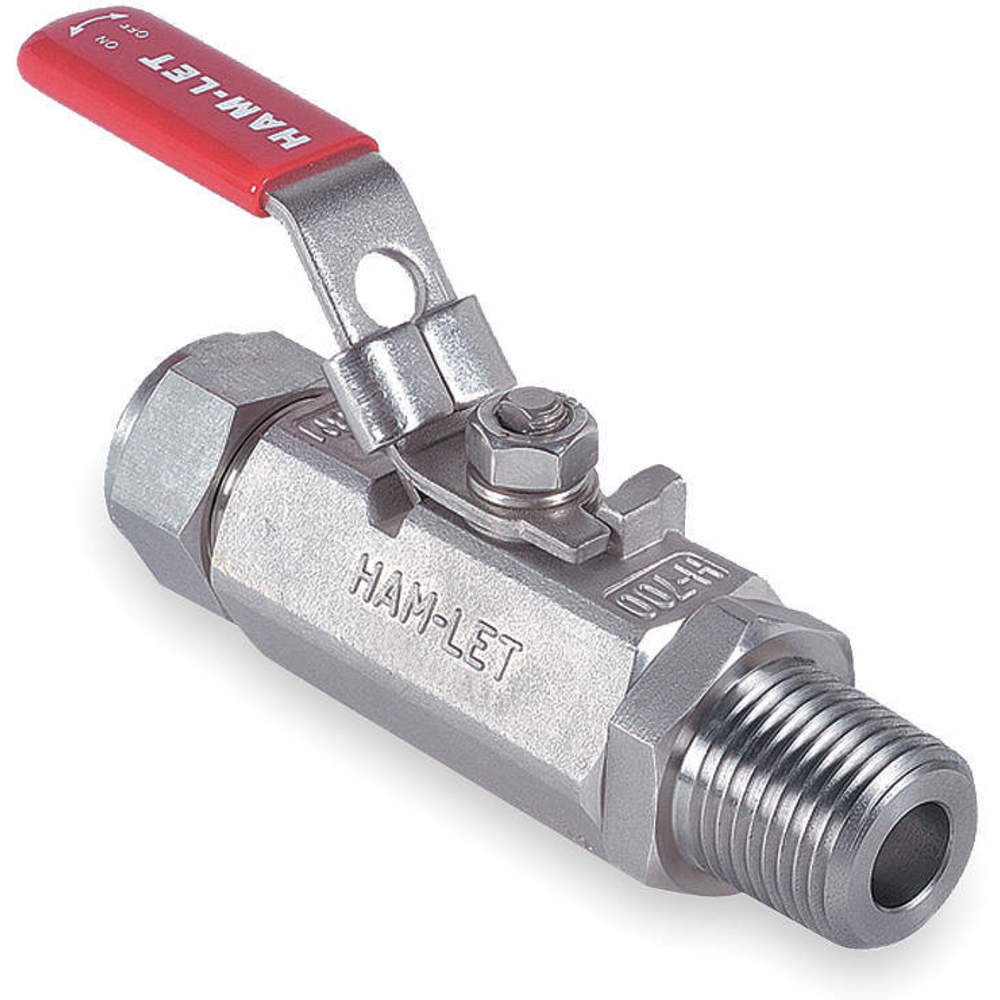

HAM-LET H-795-SS-NL-1 x 1-T-LD Stainless Steel Ball Valve Mnpt x Tube 1 In
Item: AD3KNJModel: H-795-SS-NL-1 x 1-T-LDCross Ref: 3ZVR7
7 In Stock
Ships within 2 days via
10.00% off
€779.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 17.35 |
| Connection Gender - Side 1 | Male |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | MNPT x Tube |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | Compression |
| Features | Locking Handle |
| For Media | Combustible Gases, Corrosive Chemicals, Natural Gas, Steam, Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Red |
| Handle Material | Stainless Steel |
| Handle Type | Lever Locking |
| Included Mounting | Not Applicable |
| Max. Pressure | 2000 psi WOG |
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure (steam) | 250 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | -40°F to +400°F |
| Nominal Valve Size | 1" |
| Number Of Pieces | 1 |
| Overall Length | 5.1" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Port | Standard |
| Pressure For Water | 2000 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -40°F to +400°F |
| Vacuum Service Rating | 29.92 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Ways | 2-Way |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 11.18 |
| HS code | 8481803070 |
| Country of Origin | IL |
Product Variants
| Model | Overall Length | Coefficient Of Volume | Pipe Size | Body Material | Connection Type | Max. Pressure | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H-795-SS-NL-1/4 x 1/4-T-LD | 2.76" | 1.25 | 1/4" | 316 Stainless Steel | MNPT x Tube | 2000 psi WOG | Stainless Steel | PTFE | €289.91 | |
| H-795-SS-NL-3/8 x 3/8-T-LD | 3.54" | 2.5 | 3/8" | 316 Stainless Steel | MNPT x Tube | 2000 psi WOG | Stainless Steel | PTFE | €448.51 | |
| H-795-SS-NL-1/2 x 1/2-T-LD | 3.35" | 9.25 | 1/2" | 316 Stainless Steel | MNPT x Tube | 2000 psi WOG | Stainless Steel | PTFE | €463.46 |
