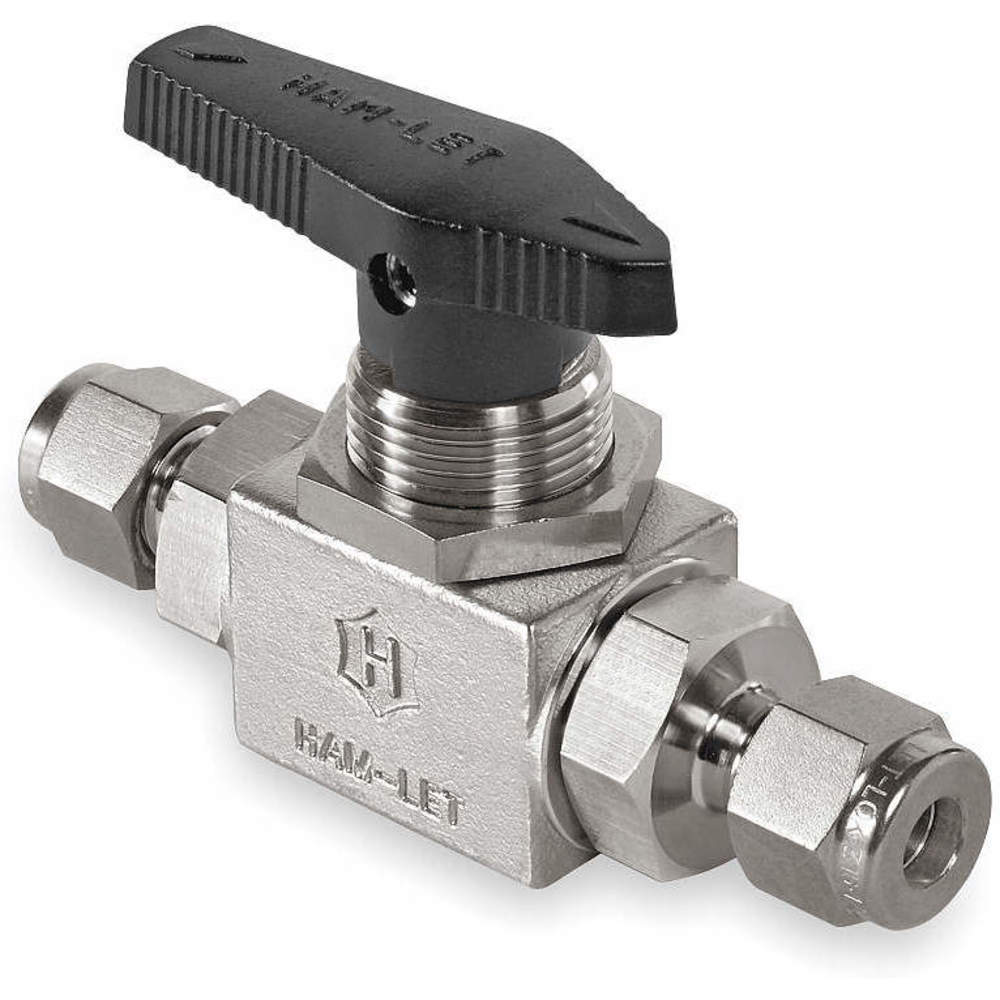

HAM-LET H-6800-SS-L-1/2-CSS Stainless Steel Ball Valve Tube x Tube 1/2 In
Item: AD3KNRModel: H-6800-SS-L-1/2-CSSCross Ref: 3ZVT5
7 In Stock
Ships within 2 days via
€810.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume | 12 |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | Tube x Tube |
| Connection Type-side 1 | Compression |
| Connection Type-side 2 | Compression |
| Features | Panel Mount/1/4 Turn On/Off |
| For Media | Combustible Gases, Corrosive Chemicals, Natural Gas, Water |
| Grade | Grade 316 |
| Handle | Wedge |
| Handle Color | Black |
| Handle Height | 1.97" |
| Handle Length | 3.15" |
| Handle Material | Plastic |
| Handle Type | Toggle |
| Included Mounting | Not Applicable |
| Max. Pressure | 6000 psi WOG |
| Max. Pressure (cwp) | 6000 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | Not Applicable |
| Media Temp. | -20°F to +280°F |
| No. Of Pieces | 1 |
| Nominal Valve Size | 1/2" |
| Overall Length | 3.4" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Standard |
| Pressure For Water | 6000 psi WOG |
| Seal Material | PCTFE |
| Seat Material | PCTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +280°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Ways | 2-Way |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 10.26 |
| Ship width (cm) | 3.2 |
| HS code | 8481803070 |
| Country of Origin | IL |
Product Variants
| Model | Max. Pressure | Seat Material | Temp. | Nominal Valve Size | Max. Pressure (cwp) | Media Temp. | Handle Material | Connection Size-side 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

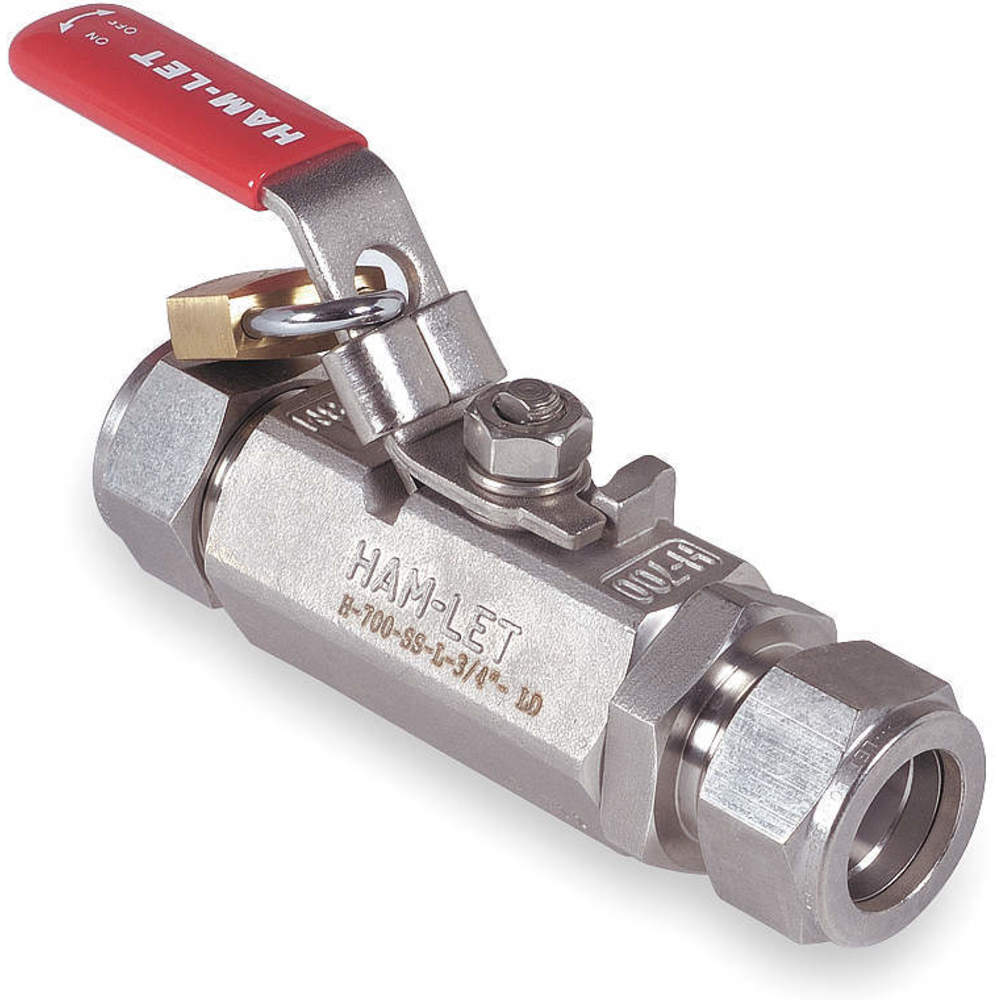

| H-700-SS-L-1/4-T-LD | 2000 psi WOG | PTFE | -40°F to +400°F | 1/4" | 2000 psi | -40°F to +400°F | Stainless Steel | 1/4" | €209.45 | |
| H-700-SS-L-3/8-T-LD | 2000 psi WOG | PTFE | -40°F to +400°F | 3/8" | 2000 psi | -40°F to +400°F | Stainless Steel | 3/8" | €275.65 | |
| H-700-SS-L-1/2-T-LD | 2000 psi WOG | PTFE | -40°F to +400°F | 1/2" | 2000 psi | -40°F to +400°F | Stainless Steel | 1/2" | €249.01 | |
| H-700-SS-L-3/4-T-LD | 2000 psi WOG | PTFE | -40°F to +400°F | 3/4" | 2000 psi | -40°F to +400°F | Stainless Steel | 3/4" | €385.89 | |
| H-700-SS-L-1-T-LD | 2000 psi WOG | PTFE | -40°F to +400°F | 1" | 2000 psi | -40°F to +400°F | Stainless Steel | 1" | €610.74 | |

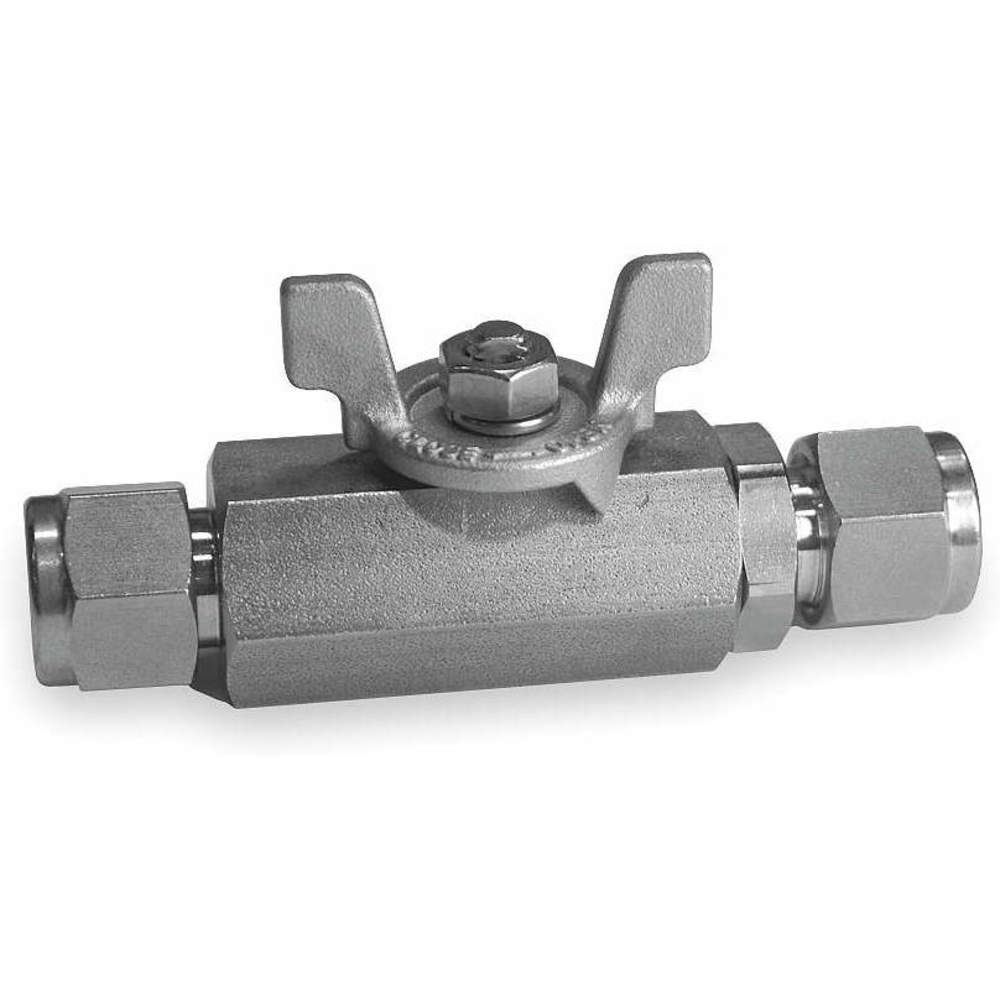

| H-700-SS-L-1/4-BH | 2000 psi WOG | PTFE | -40°F to +400°F | 1/4" | 2000 psi | -40°F to +400°F | Stainless Steel | 1/4" | €277.85 | |
| H-700-SS-L-3/8-BH | 2000 psi WOG | PTFE | -40°F to +400°F | 3/8" | 2000 psi | -40°F to +400°F | Stainless Steel | 3/8" | €272.58 |
