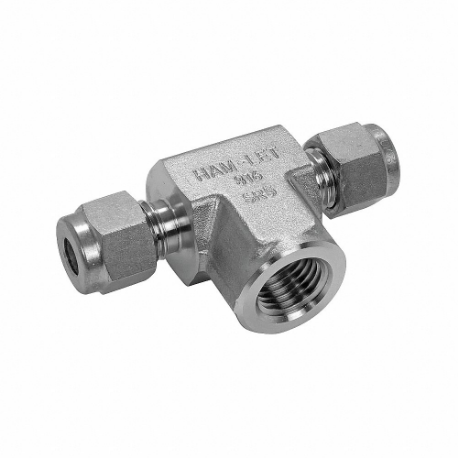

HAM-LET 3000821 Female Branch Tee, 316 Stainless Steel x FNPT
Item: CR3PBTModel: 3000821Cross Ref: 787YJ4
7 In Stock
Ships within 2 days via
€118.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Branch Tee |
| Application | Air, Gases, Hydraulic Oil, Natural Gas, Non-Potable Water, Steam |
| Color | Silver |
| Compatible Tube Material | Stainless Steel |
| Fits Brand | Swagelok |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 6 mm |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outside Dia. | 6 mm |
| Fitting Side C Connection Type | FNPT |
| Fitting Side C Pipe Size | 1/8" |
| Hex Size | 15.9 mm |
| Length | 54 mm |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Temp. | 1500°F |
| Min. Operating Temp. | -65°F |
| Overall Length | 54 mm |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Diesel Resistant, High Temperature Resistant, Low Temperature Resistant, Oil Resistant, Solvent Resistant, UV Resistant |
| Specific Fitting Shape | Adapter Tee |
| Sub-brand | Let-Lok |
| System Of Measurement | Imperial, Metric |
| Thread Size C | 1/8"-27 |
| Vacuum | 30 in. hg |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | IS |
Product Variants
| Product | Model | Max. Operating Temp. | Min. Operating Temp. | Hex Size | Pipe Size | Tube Size | Max. Pressure | Max. Operating Pressure | Thread Size C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
772LF SS 1/2 X 1/2 | 1200°F | 425°F | 15/16" | 1/2" | 1/2" | 2650 psi to 6750 psi | 6750 psi | 1/2"-14 | €173.03 | |
|
772LF SS 1/2 X 1/4 | 1200°F | 425°F | 13/16" | 1/4" | 1/2" | 2650 psi to 6750 psi | 6750 psi | 1/4"-18 | €162.86 | |
|
772LF SS 1/4 X 1/4 | 1200°F | 425°F | 13/16" | 1/4" | 1/4" | 4100 psi to 10300 psi | 10300 psi | 1/4"-18 | €108.90 | |
|
772LF SS 1/4 X 1/8 | 1200°F | 425°F | 5/8" | 1/8" | 1/4" | 4100 psi to 10300 psi | 10300 psi | 1/8"-27 | €95.76 | |
|
772LF SS 3/8 X 1/4 | 1200°F | 425°F | 13/16" | 1/4" | 3/8" | 3350 psi to 6550 psi | 6550 psi | 1/4"-18 | €115.04 | |
 |

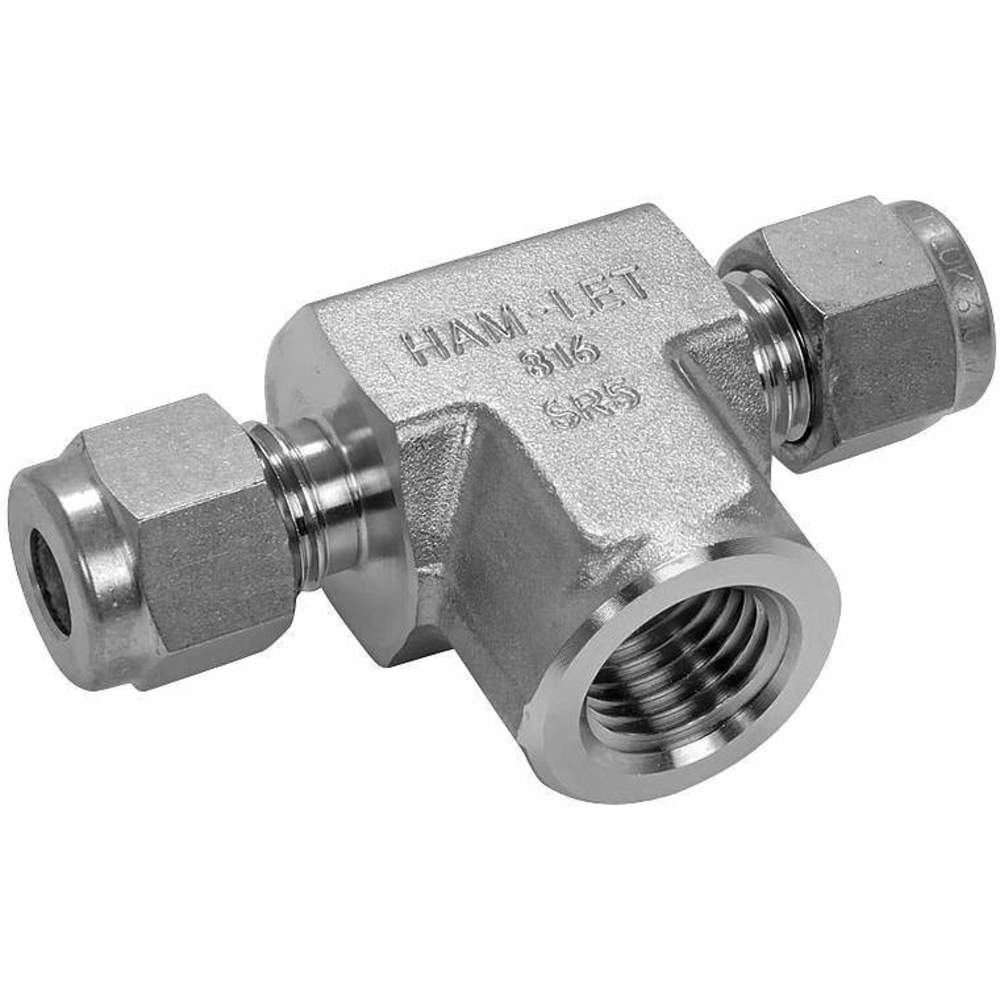

772LF SS 3/8 X 3/8 | 1200°F | 425°F | 15/16" | 3/8" | 3/8" | 3350 psi to 6550 psi | 6550 psi | 3/8"-19 | €127.74 | |
|
3000824 | 1500°F | -65°F | 20.6 mm | - | - | - | - | 1/4"-18 | €140.38 |
